Summary of Contents for Stjarna Thermowood Camping Oval 400

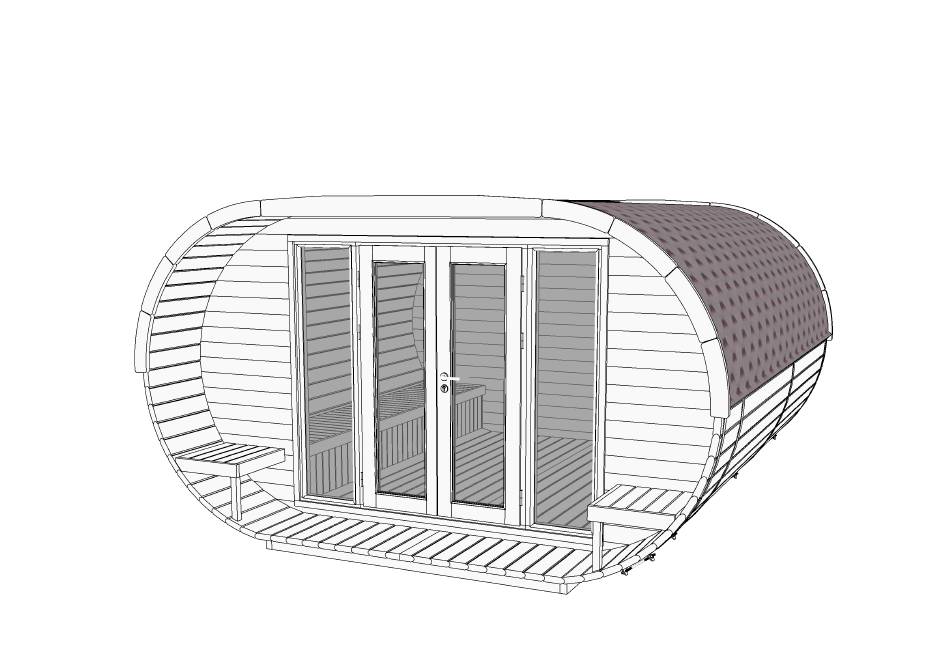

- Page 1 (TU 105) Camping Oval 4 x 4 Please read the whole manual before You start. All given measurements are in millimeters.
- Page 2 (TU 105) Detailid tootmisesse DET 1 DET 11a/11b 1648 1580 3800 DET 3a/3b 3300 4000 DET 14 1648 DET 15b DET 13 DET 15a CNC lõikus 1090 DET 8 DET 17a DET 17a Tava otsakaar...
- Page 3 (TU 105) Details list. Camping Oval 4 x 4 x165 x22m ~1,5 kg x255 x150...
- Page 4 (TU 105) Camping Oval 4 x 4 mm=mm mm=mm 3800 16x M 8x DET 2 16x M 2x DET 1...
- Page 5 (TU 105) Camping Oval 4 x 4 1x DET 3b 1x DET 3a 16x M 2x DET A If screws too short, drill holes Ø12mm 52x M Fix screws over one to the proper depth board, diagonally in before screws. every board! Use wood glue between boards.
- Page 6 (TU 105) Camping Oval 4 x 4 Drill Holes Ø10 in every board, outside. Drill holes Ø4mm before screws. 2x DET 4b 2x M 12x I 2x DET 4a Cut boards from pallet L~=2050 mm...
- Page 7 (TU 105) Camping Oval 4 x 4 mm=mm mm=mm NB! Cut some boards from pallet, to support and fix walls if necessary! Fix temporarily to support walls. DET 3a DET 3b 4x H...
- Page 8 (TU 105) Camping Oval 4 x 4 Remove Regular wood X= 7-8 mm. Thermo wood X= 3-4 mm. DET 3b DET 3a DET 3a See next page. DET 3b...
- Page 9 (TU 105) Camping Oval 4 x 4 If screws is too short, drill holes Ø12mm to the proper depth before screws. Glue Use wood glue between boards 8x H(M) Drill holes Ø4mm before screws. DET 3b DET 3a...
- Page 10 (TU 105) Camping Oval 4 x 4 DET A1 ~240 mm 2x DET A DET A DET A1 DET A During assembly and retightening the threaded rods, use oil (Würth HPS 1400 or similar) to avoid "cold welding" and it is also easier tightening.
- Page 11 (TU 105) Camping Oval 4 x 4 2x DET A NB! If Your camping is from thermowood, please don´t Remove all remove screws. screws! Remove all screws! previous page. Remove all brackets.
- Page 12 (TU 105) Camping Oval 4 x 4 Remove all Mark door Cut out brackets. opening 2292 1x DET 9 mm=mm 8x H 1x DET 8 7x M 2x DET 10...
- Page 13 (TU 105) Camping Oval 4 x 4 Drill holes Ø4mm before screws. Place door from inside. 26x H 2x DET 9d 2x DET 9c Use waterlevel for door installation. NB! Vertically fix screws 2x DET 9a in every board! 2x DET 9b 48x I 24x J...
- Page 14 (TU 105) Camping Oval 4 x 4 1x DET 12 2x DET 11b 4x H 6x H 2x DET 11a 4x H DET 14 2x H Use temporarily to get proper height. 4x H 6x DET 13 2x DET 14 Make right side same way as the left side.
- Page 15 (TU 105) Camping Oval 4 x 4 2x H 2x DET 15a Drill holes Ø4mm before screws. 2x M 6x H 2x M 2x DET 15b Drill holes Ø4mm Drill holes Ø4mm before screws. before screws. 7x H 7x H 2x DET 16...
- Page 16 (TU 105) Camping Oval 4 x 4 DET N NB! Before roof shingles, install underlay felt. Check underlay felt installation manual on extra pages. ~10mm Check also roof shingles installation manual inside package. Shingles overlap on top Refract DET N into 3 pieces.
- Page 17 (TU 105) Camping Oval 4 x 4 1x DET 17a 8x DET 17b 1x DET 17a 20x H 8x DET 17b 20x H...
