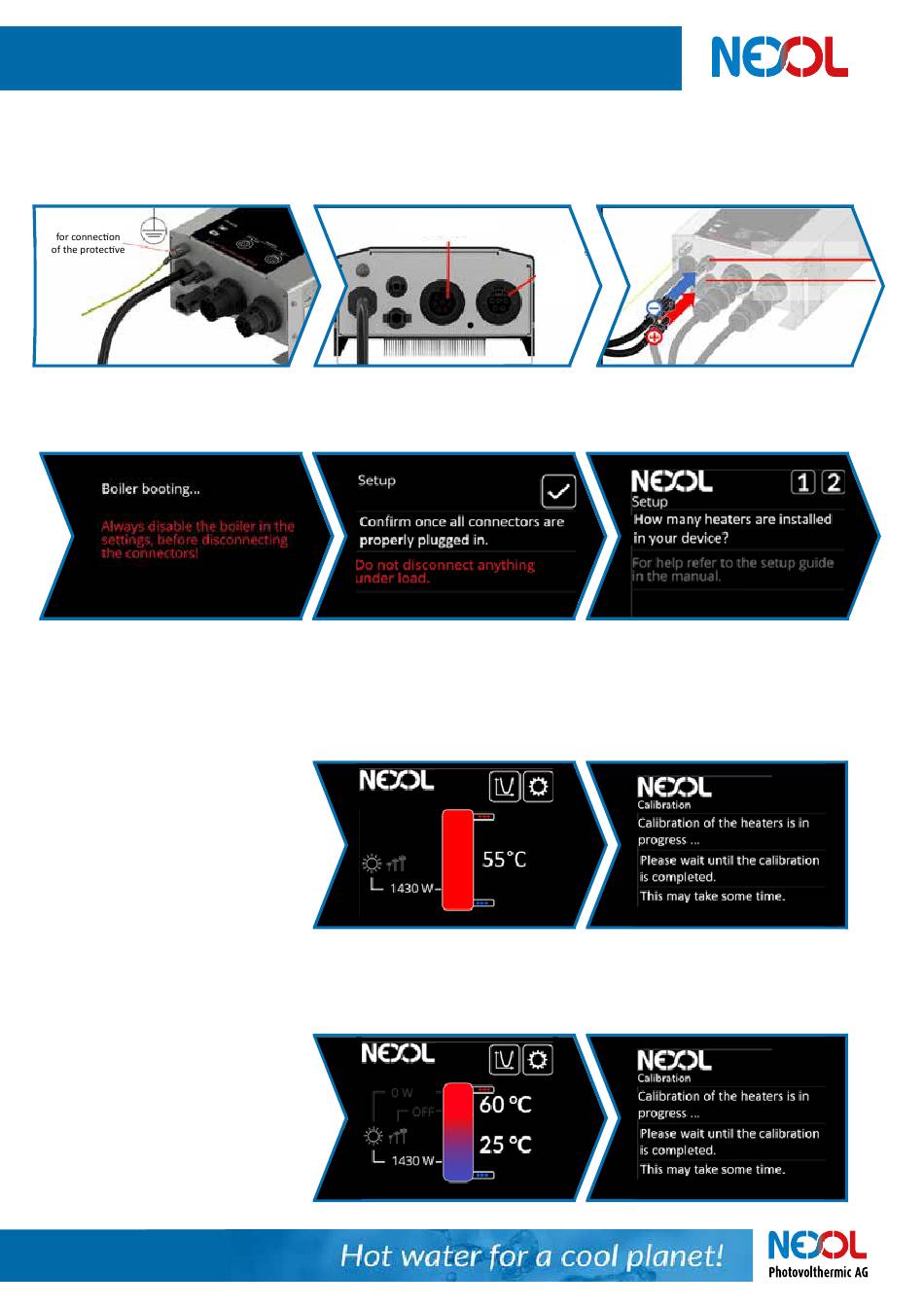

ENERGY CONTROLLER: QUICK INSTALLATION GUIDE
!
Please observe all safety instructions in the operating manual!
This document is only intended as an aid and does not replace reading the operating manual.
Step 1
M5 ring cable lug
conductor
Check grounding
Step 4: Configure ENC
After connecting the ENC with power
sources, the booting process starts.
Control of the ENC is done via touch
display.
NEX-R1
NEX-R2
Step 2
Screw-in heater
PV & Mains
Connect the heating elements
Are all connectors connected correctly?
Click on the check mark to confirm.
Display main page
For detailed explanation, see p. 33 of the
operating instructions.
Step 3
Screw-in
heater PV
Connect mains & PV with the ENC
(PV modules should be connected in series)
Choose product type:
1 – NEX R1 screw-in heater is connect
2 – NEX R2 screw-in heaters are connected
As soon as >500W are applied over
a longer period of time, temperature
sensors and control are adjusted to the
installation.
!
MC4- Connector for DC-
MC4- Connector for DC+
