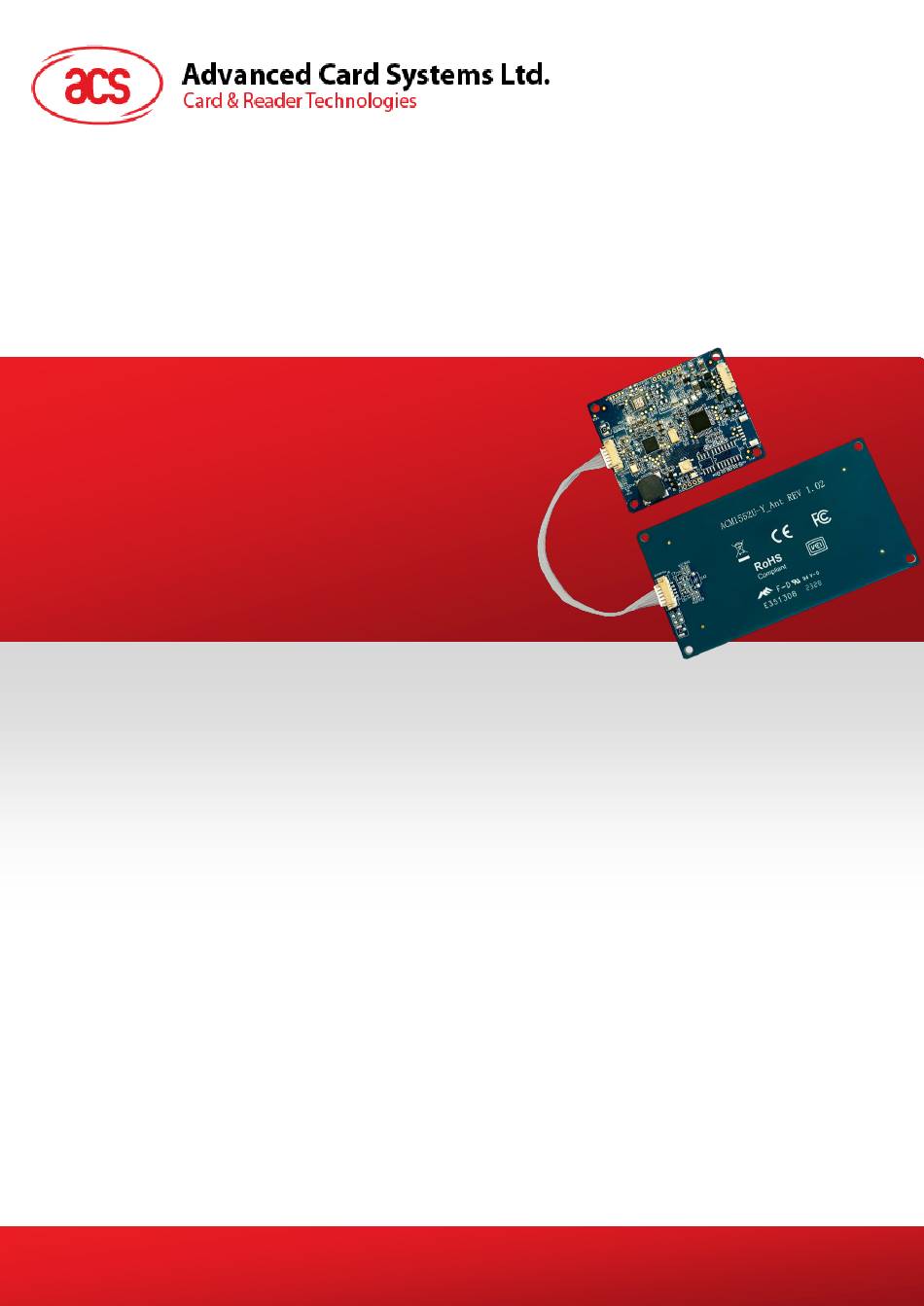

- Page 1 ACM1552U-Y USB NFC Reader Module with Detachable Antenna Board User Manual V1.02 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...
-
Page 2: Table Of Contents
LED for smart card operation status ................7 3.1.3. Default LED Behaviors ..................... 7 3.2. Connect ACM1552U-Y to another device via USB ............8 4.0. Minimum Distances from Conductive Materials..........10 Appendix A. Connector Specification ................11 List of Figures Figure 1: ACM1552U-Y Main Board .................... -
Page 3: Introduction
ISO 14443, ISO 15693 and ISO 18092 standards. This smart card reader module is designed for fast and easy integration to embedded systems. ACM1552U-Y is a CCID & PC/SC compliant reader, this plug-and-play NFC reader makes high-speed communication contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. -
Page 4: Detachable Antenna
2.0. Detachable Antenna The ACM1552U-Y is designed to offer a detachable antenna board that will best fit the embedded system. The detachable antenna board may be connected to any front-end interface module to enable NFC transactions. To do this: 1. Connect antenna cable to of ACM1552U-Y main board (see Figure 1). -
Page 5: Figure 2: Acm1552U-Y Antenna Board
2. Connect antenna cable to of the ACM1552U-Y antenna board (see Figure 2). ANT_2 ANT_GND ANT_1 Figure 2: ACM1552U-Y Antenna Board Page 5 of 11 www.acs.com ACM1552U-Y – User Manual info@acs.com.hk www.acs.com.hk Version 1.02... -
Page 6: Pin Assignment
3.0. PIN Assignment 3.1. LED Configuration There is a bi-color LED on ACM1552U-Y to display and control its operation status. These are Blue and Green in which can be extended to other peripherals as well. To do this: 1. Connect jumper to for the LED status of power and card signals (see Figure 3 and Figure 4). -
Page 7: Led For Power Status
Figure 4: ACM1552U-Y LED Circuit 3.1.1. LED for Power status The default LED setting are fast blinking Blue Green when the power is on and then remain Blue. These LEDs cannot be controlled. 3.1.2. LED for smart card operation status To control the LED’s output and check the LED’s behavior for smart card operation status (J12), please... -
Page 8: Connect Acm1552U-Y To Another Device Via Usb
Note: User configurable interval for LED Flashing is not recommended as it may affect polling interval. 3.2. Connect ACM1552U-Y to another device via USB A USB port is available to connect the ACM1552U-Y to other peripheral or device. To do this: 1. -
Page 9: Figure 5: Acm1552U-Y Usb Configuration
Figure 5: ACM1552U-Y USB Configuration Page 9 of 11 www.acs.com ACM1552U-Y – User Manual info@acs.com.hk www.acs.com.hk Version 1.02... -
Page 10: Minimum Distances From Conductive Materials
4.0. Minimum Distances from Conductive Materials The table below illustrates the recommended minimum distances of the ACM1552U-Y Antenna Board from conductive materials. Bottom Location Minimum Distance Sides 15 mm Side (with connector) 5 mm Top and Bottom 30 mm Table 1: Recommended Minimum Distances from Conductive Materials Page 10 of 11 www.acs.com... -
Page 11: Appendix A. Connector Specification
Appendix A. Connector Specification Figure 6: ACM1552U-Y USB Connector (Male) Specification Note: a. Connector on Figure 6 is attached to the PCB. b. It is compatible with JST-GH series, 5-pin, 1.25mm pitch connector. Figure 7: ACM1552U-Y Cable Connector (Female) Specification Page 11 of 11 www.acs.com...
