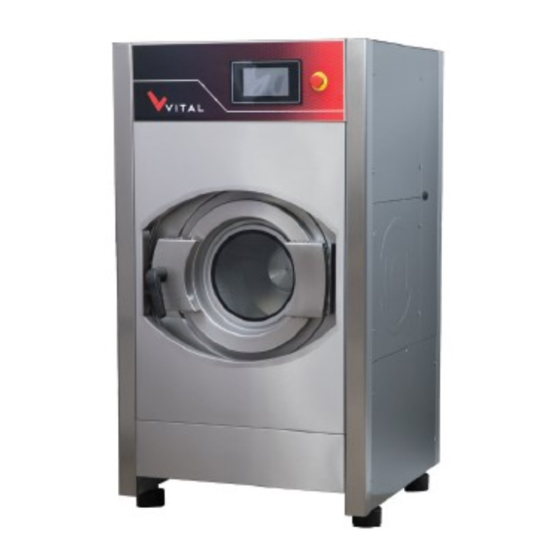

Summary of Contents for Vital VLWE 10E
- Page 1 USAGE AND MAINTENANCE MANUAL WASHER EXTRACTORS • VLWE 10E • VLWE 25E • VLWE 50E • VLWE 13E • VLWE 30E • VLWE 60E • VLWE 15E • VLWE 35E • VLWE 80E • VLWE 20E • VLWE 40E • VLWE 100E...
-
Page 2: Presentation
PRESENTATION DEAR CUSTOMERS, • To get the best yield of our products that are in compliance with the International Standards, we highly recommend you to read the user’s manual and have it read to your users for long and continuous usages. •... -
Page 3: Table Of Contents
INDEX PRESENTATION ................................ 2 DEAR CUSTOMERS, ..............................2 INDEX ..................................3 SAFETY DETAILS ............................... 4 TECHNICAL SPECIFICATIONS ........................... 5 transportatıon, placement and ready to ınstall ...................... 6 ELECTRICAL CONNECTION ............................8 water connectıon ..............................8 USAGE ..................................9 1-) Switching On..............................10 CLEANING ................................ -
Page 4: Safety Details
SAFETY DETAILS • Do not expose the device to direct sunlight. • The instructions should be analysed before the installation and the usage of the device. • The device can only be used for professional purpose. The installation and the maintenance should be carried out by the qualified staff authorized by the manufacturer. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS PRODUCT CODE VLWE10E VLWE13E VLWE15E VLWE20E VLWE25E VLWE30E WIDTH 1135 DIMENSIONS DEPTH 1075 1140 1335 (mm) HEIGHT 1570 1570 1570 1720 1720 1870 WASHING CAPACITY 10kg 13 kg 15 kg 20 kg 25 kg 30 kg DRUM CYCLE 900 cycle/h 850 cycle/h 800 cycle/h... -
Page 6: Transportatıon, Placement And Ready To Install
TRANSPORTATION, PLACEMENT AND READY TO INSTALL • Do not tilt the device during the transportation, carry it upright. • Use a suitable vehicle to avoid any kind of damages. • Do not push or drag the device to bear. • When transporting by pallet jack or forklift, make sure to not damage the device. •... -
Page 8: Electrical Connection
ELECTRICAL CONNECTION • Technical specification section should be analysed for the appropriate cable to be used for the electrical connection of the device. • Supply the device with the mains voltage indicated on the nameplate. • The electrical supply circuit must be done by authorized staff. Before installation, make sure that your fitment meets the requirements. -
Page 9: Usage
USAGE • Make sure that the electrical and water fittings are made properly. • Do not overload the machine. Overloading the machine over its capacity may damage your device as well as not washing your laundry properly. • Make sure to load the laundries inside the device poisedly. Placing a net will decrease the performance of the device as well as causing more vibration during the spinning. -
Page 10: Switching On
• Any combustible, explosive, abrasive substances etc should not be putted inside the machine with the laundries. • Never try to open the door while operating. • When not using the device, make sure to not forget any laundry inside because this may cause bad smell and spots on the laundry. -
Page 11: Cleaning
Pauses the machine while its still operating. PAUSE Pressing the STOP button will stop and cancel the STOP program of the machine from operating and will go back to the start screen. You may observe the pre-selected temperature TEMPERATURE through the left bottom corner on the LCD panel. You may observe the instant changes of the temperature trought the right upper corner on the TEMPERATURE... -
Page 12: Maıntenance And Malfunctıon
• Do absolutely not wash your device with a hose or anything similar. This may cause damage to the electrical wiring. In such case, danger may occur and your device will be out of warranty. • Do not use abrasive detergent or wire brushes when cleaning the device’s surface. -
Page 13: Warranty Conditions
3. If after these steps the device is still not receiving water, contact the AUTHORIZED SERVICE. Inverter error. Contact the AUTHORIZED SERVICE. 1. Check the loading lid. Lid error. 2. If after these steps the device is still not receiving water, contact the AUTHORIZED SERVICE. -
Page 14: Out Of Warranty Cases
• In accordance with the regulations of the warranty document implementation fundamentals published by the Ministry of Industry, the warranty deed of the industrial products are the purchase invoices. • If there is any kind of malfunctions due to both the material and the workmanship, or assembly faults under the warranty period, the necessary replacement and reparing will be done by our authorized personnel without any charge. - Page 15 • All parts that may be abraded in time such as gaskets, electronic card, doorhandle and mechanism, serigraphy product tag, cables, resistance etc will be replaced in exchange of a fee. • Damages caused by the unnecessary loss of time, the maleficience, the revenue loss, or the conduction of the product from the defective location to another, •...
-
Page 16: Authorized Service Start Up Page
AUTHORIZED SERVICE START UP PAGE Start Up Page • The model and serial number of your device are shown on the “Technical Data” label affixed to the device. • Select the technical data according to the device model on the nameplate. MUST BE FILLED BY AUTHORIZED SERVICE! COMPANY INFORMATIONS PRODUCT... -
Page 17: Contact
CONTACT MUTAŞ MUTFAK ISITMA SİSTEMLERİ SAN. PAZ. İNŞ. TUR. İÇ VE DIŞ TİC.LTD.ŞTİ HEADQUARTER ADRES: Plevne Cad. No:40 Gülveren / ANKARA TEL: (0312) 363 99 33 FAX: (0312) 363 94 92 Web: www.vitalmutfak.com E-Mail:info@vitalmutfak.com MUTAŞ MUTFAK ISITMA SİSTEMLERİ SAN. PAZ. İNŞ. TUR. İÇ VE DIŞ...
