- Page 1 VITARA Panel Ready Under Counter Wine Cooler & Beverage VBWC5202S Mono Zone Wine cooler VBBW1302S Beverage Center VBWC5202D Dual Zone Wine cooler...
- Page 2 P R E S RV™ B E V E R AG E C O O L E R S I N G L E ZO N E Use, Care, and Installation Guide...
-
Page 3: Table Of Contents
Contents Page Safety Information ................4-11 Types of Safety Warnings ..............4 General Safety ................... 5-7 Save These Instructions ..............8 Disposal of Old Appliance ..............8 Before Using Your Appliance ............... 9 Installation of Your Appliance............9-10 Attention ..................... 10 Electrical Connection ................ -
Page 4: Safety Information
Safety Information Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. -
Page 5: General Safety
Safety Information For your safety, read all instructions carefully before operating the appliance. General Safety DANGER When using an electrical appliance, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. WARNING To reduce the risk of fire, electric shock or personal injury, unplug or disconnect the appliance from the power supply before servicing. - Page 6 Safety Information For your safety, read all instructions carefully before operating the appliance. ► To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord. ► Never operate the appliance in the presence of explosive and/or flammable fumes. ►...
- Page 7 Safety Information For your safety, read all instructions carefully before operating the appliance. WARNING Never operate any other electrical appliance inside this appliance. ► Never attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. ►...
-
Page 8: Save These Instructions
Safety Information For your safety, read all instructions carefully before operating the appliance. Save These Instructions If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists causes of minor operating problems that you can correct yourself. Disposal of Old Appliance Dispose of your appliance packaging properly. -
Page 9: Before Using Your Appliance
Safety Information For your safety, read all instructions carefully before operating the appliance. Before Using Your Appliance ► Remove all exterior and interior packing. ► Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. -
Page 10: Attention
Safety Information For your safety, read all instructions carefully before operating the appliance. ► The appliance must be installed to all electrical connections in accordance with state and local codes. ► Use two or more people to move and install the beverage cooler. Failure to do so can result in back or other injury. -
Page 11: Electrical Connection
Safety Information For your safety, read all instructions carefully before operating the appliance. Electrical Connection Check that the voltage marked on the product corresponds with your supply voltage. WARNING Improper use of the grounded plug can result in the risk of electrical shock. -
Page 12: Introduction
Introduction Thank you for purchasing your beverage cooler. This manual contains important information regarding the proper installation, use, and maintenance of your beverage cooler. Following this manual will ensure that your product will work at its peak performance and efficiency. For Your Records Please write down the model number and serial number below for future reference. -
Page 13: List Of Materials
List of Materials Quantity Part Door handle Allen/hex key Door handle screws M4X18 roundhead Connection pin Coupling pin cover Connecting pin fixing bolts M5×13 flange face Hinge shims A 、B Countersunk head screws for fixing wooden doors ST4x35 ST3.9×16 wood threads M5×30 roundhead M5×16 headband cushion Wooden door connectors... -
Page 14: Product Specifications
Product Specifications Product Summary This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet. DESCRIPTION OF PRODUCT Mono Zone Wine cooler MODEL VBWC5202S VOLTAGE/FREQUENCY AC 115/60Hz AMPERAGE 0.8A COLOR Black Cabinet with Stainless Steel Door 52 Bottles (750ml) STORAGE CAPACITY∗... -
Page 15: Product Summary
Product Specifications Product Summary This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet. DESCRIPTION OF PRODUCT Beverage Cooler MODEL VBBW1302S VOLTAGE/FREQUENCY AC 115/60Hz AMPERAGE 0.8A COLOR Black Cabinet with Stainless Steel Door 175 cans (12oz) STORAGE CAPACITY∗ REFRIGERANT R600a TEMPERATURE RANGE 36°F - 68°F... - Page 16 Product Specifications Product Summary This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet. DESCRIPTION OF PRODUCT Dual Zone wine cooler MODEL VBWC5202D VOLTAGE/FREQUENCY AC 115/60Hz AMPERAGE 0.8A COLOR Black Cabinet with Stainless Steel Door 52 Bottles (750ml) STORAGE CAPACITY∗ REFRIGERANT R600a above zone :...
-
Page 17: Parts Identification

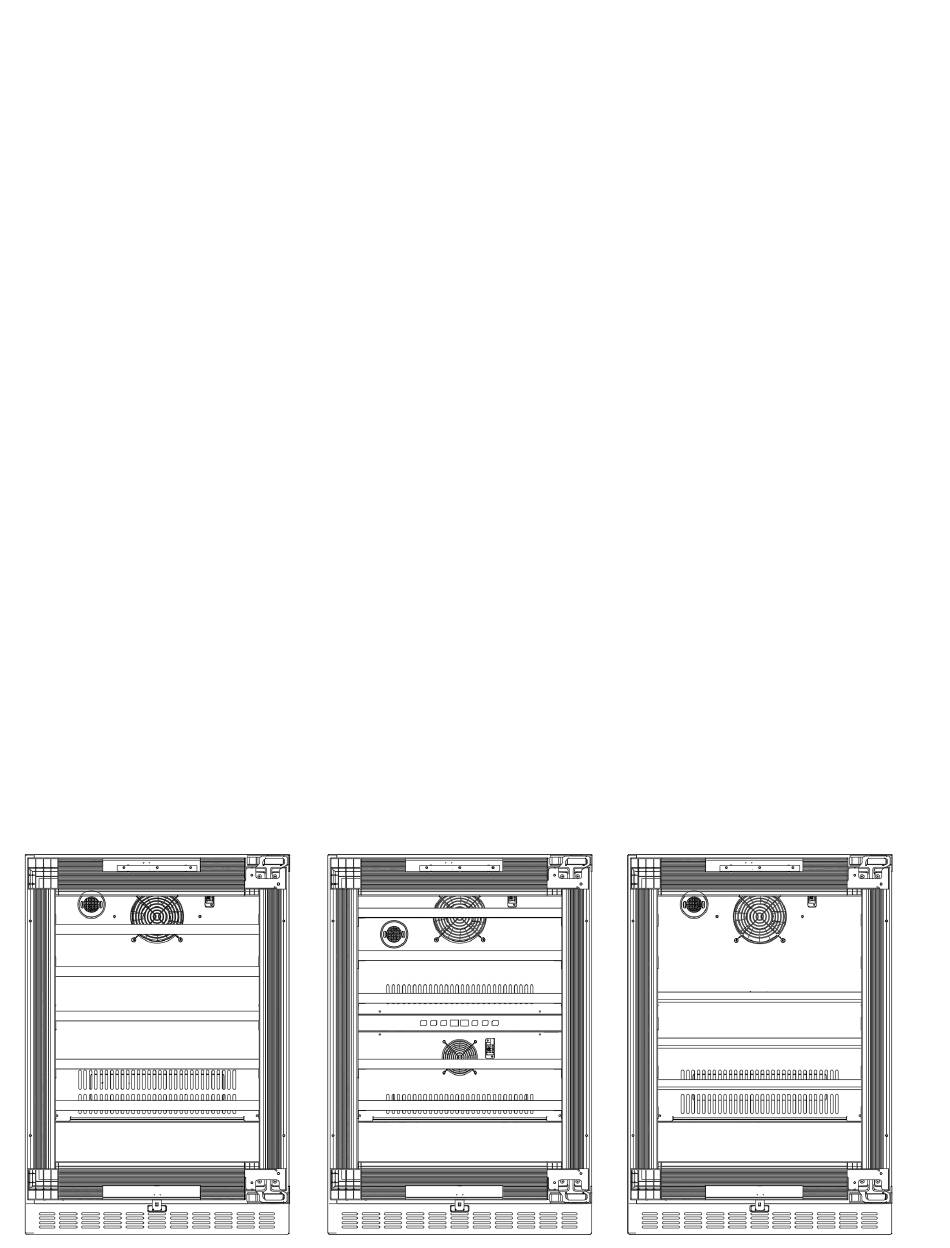

Product Specifications Parts Identification VBWC5202S Parts Identification VBBW1302S Use, Care, and Installation Guide... -
Page 18: Dimensions
Product Specifications Parts Identification VBWC5202D Dimensions Use, Care, and Installation Guide... - Page 19 Product Specifications Dimensions Use, Care, and Installation Guide...
-
Page 20: Installation Instructions
Installation Instructions Installation Clearance Requirements When installing the beverage cooler under a counter, follow the recommended spacing dimensions shown. ► For proper clearance of the electrical plug, allow at least 1” of clearance at the back as shown in the diagram. ►... -
Page 21: Carbon Filter
Installation Instructions Carbon Filter A built-in carbon filter protects your beverages by acting as a natural barrier against harmful odors. The carbon filter should be replaced every 3-6 months depending on the unit’s exposure level to odor. If the unit is placed in a kitchen, regular replacement every three months is ideal. -
Page 22: Reversing The Door Swing Of Your Appliance
Installation Instructions Reversing the Door Swing of Your Appliance Should you desire to reverse the opening direction of the door, please follow the instructions below. Safely reversing the door swing of your appliance should require at least two people. 1. Remove the screws holding the hinges from the box and set the door aside. -
Page 23: Installation Of External Timber Doors
Installation Instructions Installation of external timber doors To install an exterior wood door, review the wood door fabrication requirements dimensions on page 18 of this manual and follow the steps below, which require a minimum of two people. 1. Fix the connecting plate to the corresponding hole in the wooden door. -
Page 24: Removing The Wooden Shelves
Installation Instructions 5. Fixing of the box to the cabinet: 5.1 according to actual cabinet dimensions, if hinge spacers are required, install them on the side of the hinge. 5.2 Install the connecting pin on the box on the other side of the hinge. -
Page 25: Operating Your Appliance
Using the Control Panel VBWC5202S: This Wine Cooler has a temperature range from 39ºF-68ºF VBBW1302S: This beverage Center has a temperature range from 36ºF-68ºF... -
Page 26: Trouble Code
Operating Your Appliance Sabbath pattern Press and hold the button to turn off the light and display. For models without this button, long press the temperature “ ”button ºF/ºC Selector Hold the Increase and Decrease Temperature buttons at the same time to switch the display temperature. -
Page 27: Care And Maintenance
Care and Maintenance Normal Sounds Your new beverage cooler may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor or walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. -
Page 28: Power Failure
Care and Maintenance Power Failure Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents. -
Page 29: Troubleshooting
Troubleshooting Possible Problem Possible Cause Solutions Ensure the appliance is plugged in Not plugged in. and the power outlet has power. The appliance does not The appliance is turned off. Turn on the appliance. operate. The circuit breaker tripped or has a Replace the broken fuse or reset blown fuse. - Page 30 Troubleshooting Possible Problem Possible Cause Solutions The unit uses an ‘auto-defrost’ The environment is too humid. system, under certain conditions, The ambient temperature is too low. manual defrosting may be required. If frost builds up, you Frost is forming in the can try running the refrigerator appliance.
