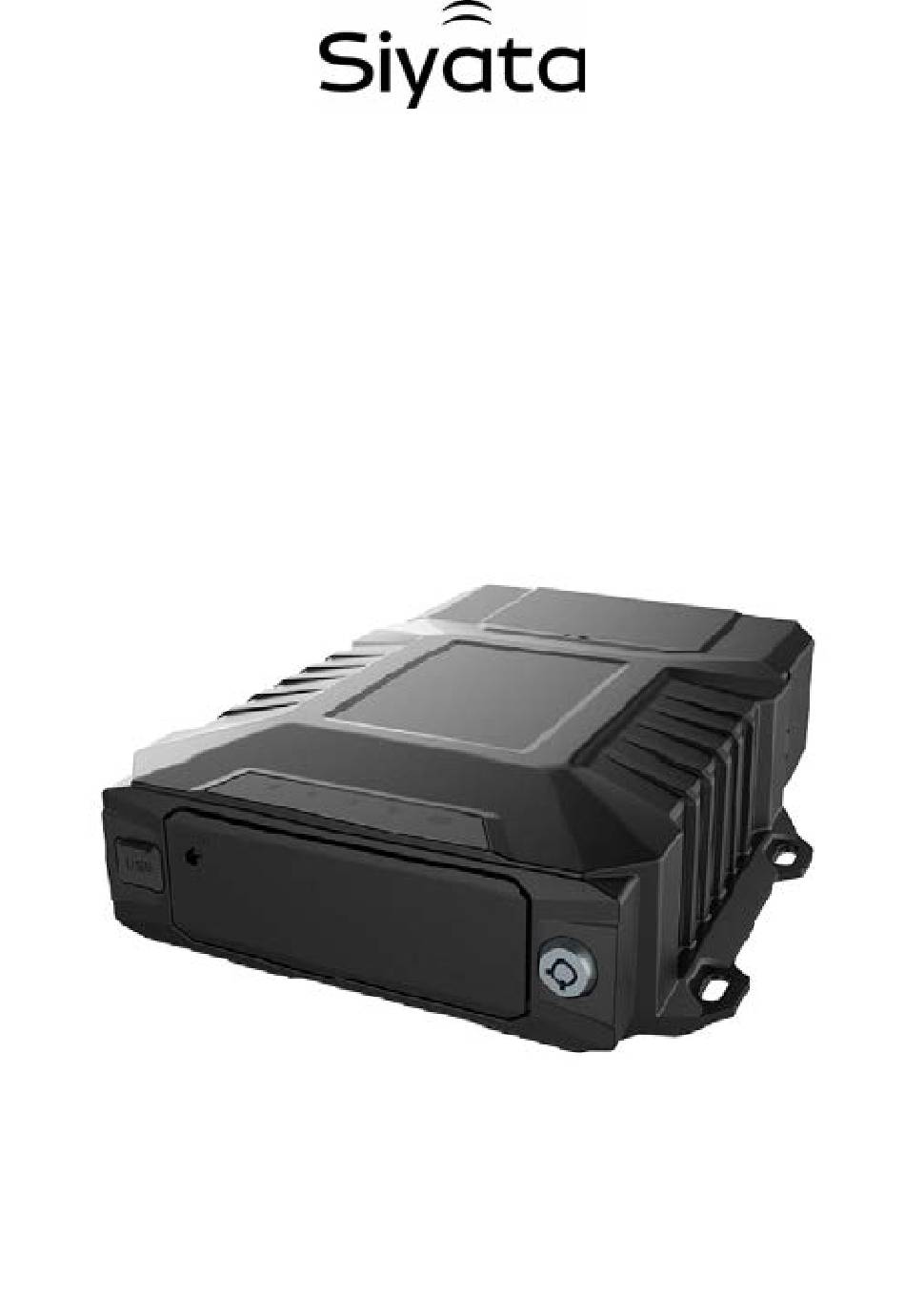

Page 1 Siyata Real Time View Model: SC22Hv User Manual...
Page 2: Table Of Contents
Contents 1. Important security rules and prompt ........3 2. Product introduction ..............3 3. Product features ..............4 4. Product functions ..............4 5. Product specifications .............6 6. Typical Applications ...............8 7. Product appearance interface description ......9 8. Installation Precautions ............14 9. Power cable connection ............16 10.
Page 3: Important Security Rules And Prompt
1. Important security rules and prompt Please read warnings before setting up and using this product: A) Should not be put on where rained or other corrosive liquid pureed for long time. B) Keep far from heat source, strong magnetic field and dust. C) Do not put heavy things on top of the equipment, no stacking debris around inside 50cm.
Page 4: Product Features
3. Product features a) Adopt high performance CPU, core ARM Cortex A7 dual core @max.1.3GHz, making the system run faster and more stable. b) Vehicle-specific interface with good user experience. c) The recording resolution is up to 1080P, using the latest H.265 digital encoding technology, high coding efficiency and flexible strategy.
Page 5 b2 Support motion detection, video loss, video power short detection detection. b3 Support local audio and video playback, support fast forward and rewind function. c) Local audio and video recording storage c1 Support a 2.5" SATA hard drive and a SD card. c2 The file format is compatible with Windows systems and uses hard disk space pre-segmentation.
Page 6: Product Specifications
f13 Support remotely format hard disk, upgrade program, restart and other system maintenance operations. f14 Support remote search, playback and download. f15 Support RS-232 remote transmission. 5. Product specifications Item Description Model SC22Hv Linux 3.18 Operating Cell phone APP, PC client, Remote controller Preview, recording, playback, network Functions Summary transmission, positioning, AI analysis, multiple...
Page 7 Item Description Audio Input, 4ch analog audio input, 1ch mic input; 2ch audio Output output. 2.0Vp-p, 4.7kΩ Audio Compression G.711A, G.726 Format Storage Supporting one 2.5" SATA hard drive and one Medium SD card Recording at start up by default, supporting Video Strategies timed recording, recording triggered by alarm and event, as well as manual recording...
Page 8: Typical Applications
Item Description Tempe- preheating: -20°C~ +70°C Operating rature Environment Humidity 8% to 90% Size 176.9mm (L) *186.8mm (W) *54mm (H) Weight NW: 1.4kg, GW: 2kg 6. Typical Applications Applications: bus, school bus/staff bus, logistic trucks, coach bus, taxies, train/metro/light rail. Topological graph of main applications:...
Page 9: Product Appearance Interface Description
7. Product appearance interface description a) Product size: (mm) b) Front panel schematic...
Page 10 NO. Name Description 4G SIM card slot SD card slot USB 2.0 Lock Hard disk lock with electronic lock function The position of the door is pressed, and when it is pressed, it PUSH automatically pops open. GPS indicator light: steady light means GPS successfully, flashing means not long off the indicator light means that the module does not exist Network light: The server is always on when the system is...
Page 11 c) Rear Panel Definitions Icon Description DC8-36V Power input A/V IN1 Audio and video input channel one A/V IN2 Audio and video input channel two A/V IN3 Audio and video input channel three A/V IN4 Audio and video input channel four Wired network port(100M) A/V OUT Audio and video output...
Page 12 d) HMIC Cable Cable color Mark Description Black Black Brown RXD1_1 RS232 RX Purple TXD1_1 RS232 TX Blue AIN-MIC Audio input Blue PTT-KEY Green AOUT Audio output VCC12V 12V Power output...
Page 13 Cable color Mark Description Black Ground wire Yellow 485B RS485B Orange 485A RS485A 12-OUT 12V Power output White SENSOR-IN4 Alarm input channel 4 White SENSOR-IN3 Alarm input channel 3 White SENSOR-IN2 Alarm input channel 2 White SENSOR-IN1 Alarm input channel 1 White ADC IN1 Analog input channel 1...
Page 14: Installation Precautions
8. Installation Precautions To ensure the Mobile Digital Video Recorder (MDVR) to run smoothly within the product warranty, please adhere to all requirements and follow the instructions listed below to install: 8.1 Location  Install MDVR in a dry and ventilate location shielded from direct contact with excessive humidity and moisture, rain and other sources of liquid.
Page 15 8.3 Humidity  The working humidity for MDVR is between 10-95%.  Do not handle MDVR with wet hands, while standing in water, or while in contact with other sources of liquid, as these can potentially result in an electric shock. 8.4 Temperature ...
Page 16: Power Cable Connection
9. Power cable connection 10. Hard disk insertion and removal Hard disk insertion: Notice: The hard disk insertion mode of this device is bare disk, no hard disk box is needed.
Page 17 a) Open the device hard disk lock, press the door to make the door automatically pop up, and pull out the hard disk box handle. b) Insert the hard disk 70% length, please pay attention to the hard disk insertion direction. c) Push the hard disk box handle to make the hard disk completely enter...
Page 18 Hard disk removal: e) Open the device hard disk lock, press the door to make the door automatically pop up. f) Pull the hard disk box handle to make the hard disk box pop up automatically. g) Remove the hard drive.
Page 19: Accessories Description
11. Accessories description Standard: 4G antenna (if Power cable IO cable you buy 4G type) GPS antenna (if you Keys buy gps type) Optional: Camera...
Page 20 Optional: Remote Hand held microphone Remote cable controller...
Page 21: Remote Controller
12. Remote Controller Function Image [0-9] keys: In the setting status, the numeric keys are used for number selection. During playback, keys 1, 2, 3 and 4 are used for switching between [0-9] single window of channels 1-4, key 0 is used for switching to synchronous playback of 4 channels.
Page 22: Mdvr Setup
Function Image Control external pan/tilt Can enter the test interface, view module information, etc., easy to debug. Others Function retention button. 13. MDVR setup 13.1 Login  When password is set DISABLE, Press [ENTER] key on the remote controller into the main menu directly. ...
Page 23 13.2 Main Menu After login successfully, enter the main menu as below. It includes 4 items: Playback, Preview, Settings, Tools. 13.3 Playback You can search all video files including normal files, alarm files by record time, file type when you enter Playback menu. Here’s the detailed description: ...
Page 24  Start: Press the digit keys to setup the time, default time is 00:00.  End: Press the digit keys to setup the end time, default time is 23:59.  OK: Select the "OK" button And press [OK] key to enter the following search results menu.
Page 25  Date: Press the digit keys to setup the date, System default selection is current day.  Start: Press the digit keys to setup the time, default time is 00:00. OK: Select the "OK" button And press [OK] key to enter the following search results menu.
Page 26 Time  Date: Press the digit keys to setup the date.  Time: Press the digit keys to setup the clock.  Time Zone: Press the enter keys to select timezone.  GPS Time: Check Box, It will auto adjust time by gps if select it. Select "OK"...
Page 27  Admin PWD: Users are endowed full rights with this password, such as search, play or modify parameters. Press digit keys to modify the password.  Confirm: It is used to confirm password, Press digit keys to modify the password. Select "OK"...
Page 28 Mirror Used to set 1-4 channel video mirror mode. Power Used to set the switch mode of the device, whether to continue recording after ACC is turned off.
Page 29 13.5.2 Alarm This menu will show you how to setup the alarm parameters, include alarm, Input/output, linkage and G-sensor. Alarm This menu configures the alarm input and alarm output linkage related parameters of the device.
Page 30 Input This menu is used to configure IO alarm input, and can set 4 alarm inputs. Output Select the level, select high level, the alarm output is high, function selection (network, oil control, etc.)
Page 31 Linkage Corresponding to 4-way alarm input, overspeed, GSensor function linkage alarm. GSensor This menu is used to set the Gsensor value to be turned on and viewed. Gsensor static calibration.
Page 32 13.5.3 Net This menu will show you how to setup the system network parameters, it includes: Mode, Center, 3/4G, net and WIFI. Mode Used to set parameters such as device network mode.
Page 33 Center  Link Mode: This item is used to set the access back-end platform through IP or domain mode.  Server IP: This item is to set the back-end CMS server IP address.  Domain: This item is used to set the back-end CMS server domain name.
Page 34  User Name: This item is used to set.  Password: This item is used to set. Select "OK" and press [ENTER] to save the settings. Used to set related parameters such as device IP. WIFI Used to set the device's WIFI mode and corresponding parameter configuration.
Page 35 13.5.4 Encode This menu will show you how to setup the video encode parameters. MAIN For selecting 1080P, 720P, D1 resolution type, audio on/off, image resolution 1080P is best, D1 is the worst.
Page 36 It is used to select parameters such as encoding mode definition and image quality. Use and superimpose license plate, equipment number and other parameters.
Page 37 13.5.5 Record CType Choose to use Pal or NTSC camera.
Page 38 Record Enable IPC and IPC parameter settings, up to 4 channels of IPC. Snap Set the captured image to automatically save the number of days, the image will be deleted automatically after the set number of days, configurable time 1-30 days, default 7 days.
Page 39: Faq
14. FAQ 14.1 Questions on device turn on Answer: A. The power supply voltage does not reach 8-36V or the power does not reach 50W or more. B. Hard disk lock is unclosed. C. The power connection method is incorrect. Please refer to the power cable instructions.
Page 40 14.2.4 Q: What is the time delay for 3/4G remote preview? A: It is about 2-20 seconds, depending mainly on the bandwidth. 14.2.5 Q: How to download video files with 3/4G? A: Manual file downloads are possible. 14.2.6 Q: Can recording settings be realized with 3/4G remote operation? A: Recording settings cannot be realized with 3/4G.
Page 41 b) Check the disk space. If the disk space is lower than 500M and the auto writing function is disabled, the recording will be stopped; c) The ERR indicator on the front panel is on. You may check the system information whether the disk space is shown to be 0;...
Page 42 14.6 Others 14.6.1 Q: The power indicator is not on when the device is powered on? A: This may be caused by the following causes: a) The voltage falls beyond the range between 8V and 36V; b) The fuse on the power input wire is burnt out; c) The ignition signal is not connected;...
Page 43 14.6.5 Q: Both the SD card indicator and the hard drive indicator are on while not flashing? A: This may be caused by the following causes: a) The device considers no current recording tasks according to the menu settings by the user; b) Both the SD card and the hard drive are full while the auto overwriting function is disabled in the menu;...
Page 44 14.6.9 Q: Video files cannot be played back on the PC? A: This may be caused by the following causes: a) Video file directory or video files are not selected. Please select the video file directory before playback; b) Local video files are damaged, causing failure in reading; 14.6.10 Q: The remote controller does not work? A: This may be caused by the following causes: a) No battery in the remote controller;...
