Summary of Contents for Habitat Barnwell Stool 3448298

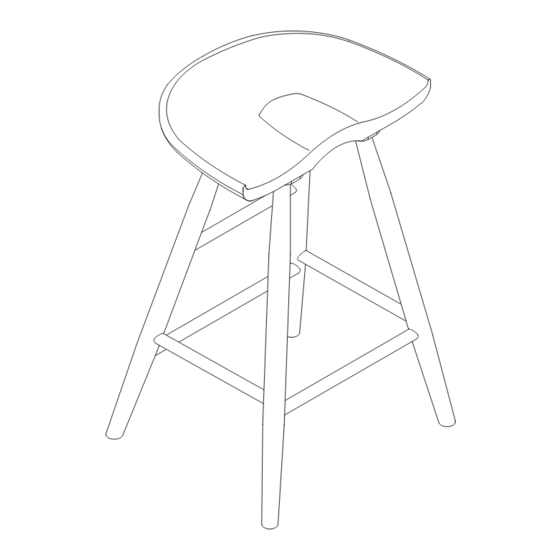

- Page 1 Barnwell Stool Spare Parts Customer Support 0345 640 2020 www.argos-support.co.uk Help@ClickSpares.co.uk 0370 112 1928 Issue 1 - Sep 2023...
- Page 2 ● Regularly check and ensure that all bolts and fittings are tightend properly. • Maximum user weight 100kg ● This product is compliant EN12520 Habitat, Argos limited and Sainsbury’s Supermarkets Ltd, London EC1N 2HT, UK. Argos(N.I.) Ltd and Sainsbury’s (NI) Ltd. Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK...
- Page 3 Fittings (Shown to scale) Bag 1 Spring Washer x 6 M6x30mm Bolt x 6 Flat Washer x 6 Ø4x35mm Screw x 6 M4 Alley Key x 1 Ø25mm Felt pad x 4...
- Page 4 Parts Right Leg Frame x 1 Left Leg Frame x 1 (625 x 395mm) (625 x 395mm) Support Rail x 2 ( 343 x 20mm) Support Rail x 1 ( 260 x 20mm) Seat x 1 385 x 273mm)
- Page 5 M6x30mm Bolt x 6 Spring Washer x 6 Flat Washer x 6 Ø4x35mm Screw x 6 M4 Alley Key x 1 Ø25mm Felt pad x 4 Spring Washer x 6 Flat Washer x 6 M6x25mm Bolt x 6 M4 Alley Key x 1 Warning! Please do not fully tighten the bolts in this step.
- Page 6 Ø4x35mm Screw x 6 Ø25mm Felt Pad x 4 Peel off the back 100% Warning! Please do fully tighten all the bolts and screws in this step.
- Page 7 Turn Product Assembly is complete.
