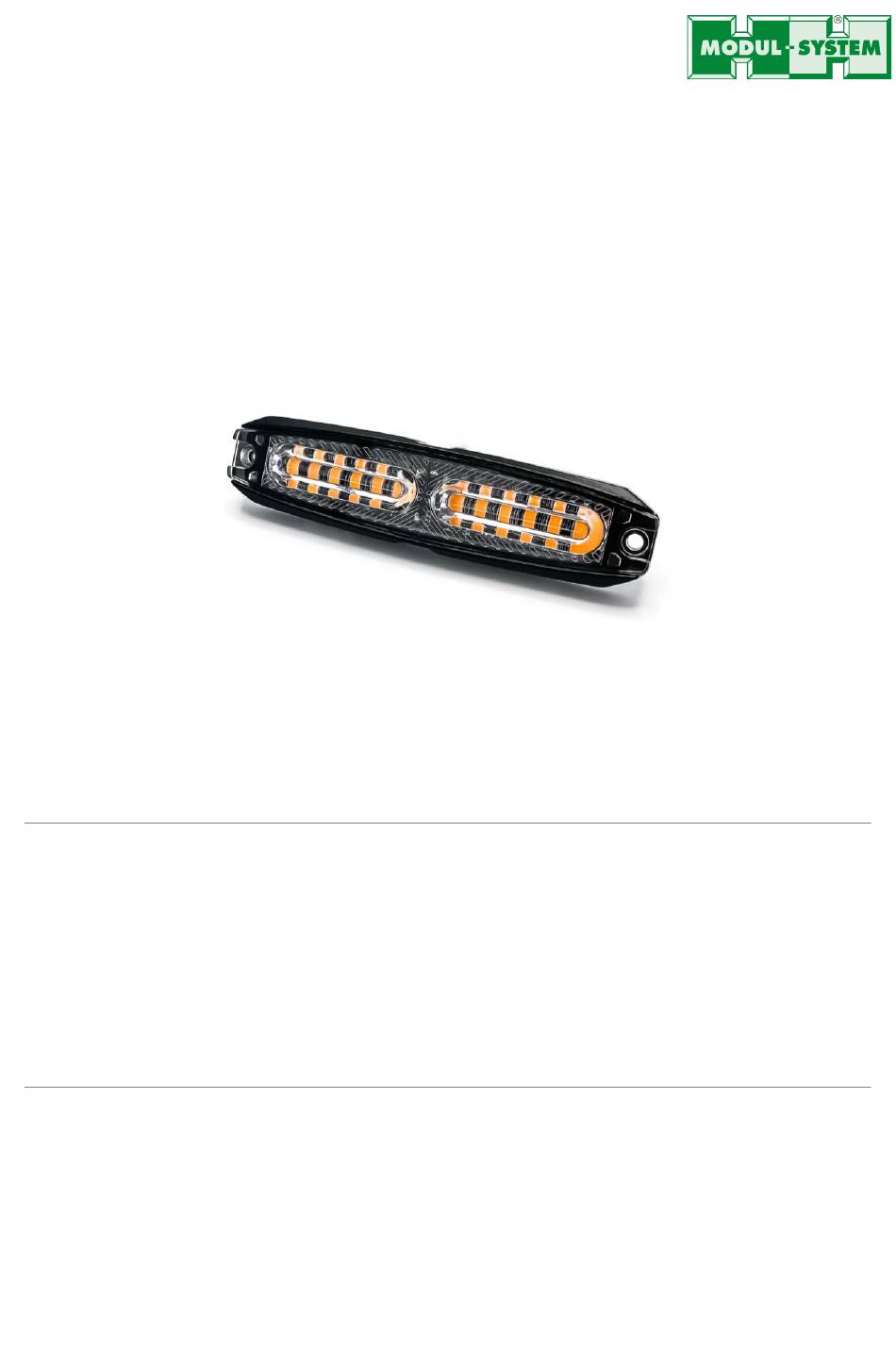

Strobe light, flat 12/24V CLASS II
FEATURES
• 14 flash patterns
• Possibility to synchronise multiple pcs
• Operating voltage: 10~30 Vdc
• IP67
• ECE R65 class 2, ECE R10
CABLE COLOURS
RED:
Power
BLACK:
Ground
BLUE:
Pattern
WHITE:
Dimming
YELLOW:
Synchronisation
2022-04-27
INSTRUCTION MANUAL
Part no: 19771-04
1
Advertisement
Summary of Contents for Modul-System 19771-04
- Page 1 INSTRUCTION MANUAL Strobe light, flat 12/24V CLASS II Part no: 19771-04 FEATURES • 14 flash patterns • Possibility to synchronise multiple pcs • Operating voltage: 10~30 Vdc • IP67 • ECE R65 class 2, ECE R10 CABLE COLOURS RED: Power...
- Page 2 OPERATING INSTRUCTION POWER • Connect RED wire to +Vdc. Fuse at 2A minimum. When connecting 3-4 pcs, we recommend a 5A fuse, and for 5-6 pcs we recommend a 7.5A fuse. • Connect BLACK wire to GND. FLASH PATTERN • Tap BLUE wire to +Vdc quickly to select next flash pattern. •...
- Page 3 TECHNICAL SPECIFICATION Part number 19771-04 Description Strobe light, flat 12/24V CLASS II Total width (mm) Total depth (mm) Total height (mm) Weight (g) Operating voltage 10~30 Vdc Power supply 12 Vdc / 24 Vdc Operating temperature -30°C to +65°C Maximum power @ 12V ~ 6.5W...
