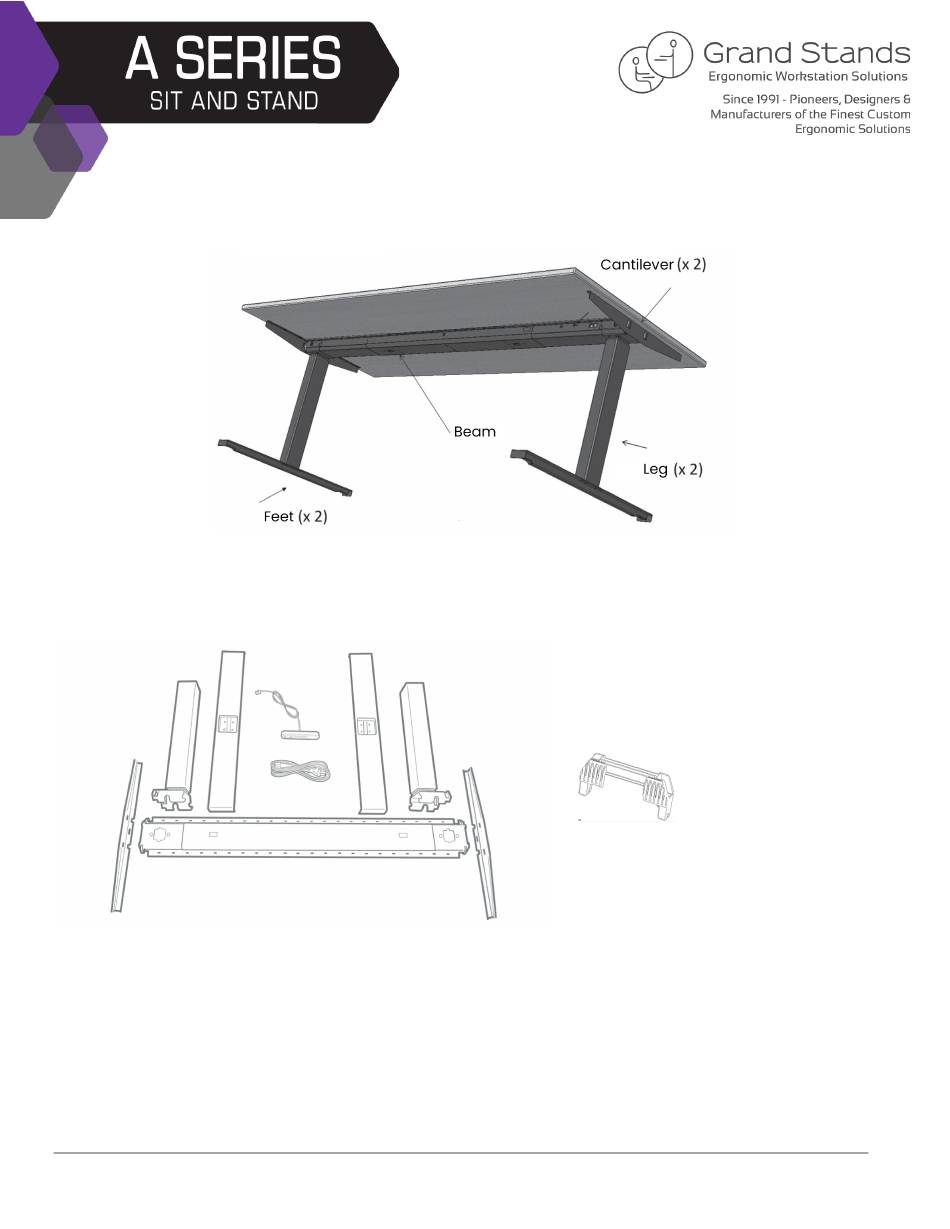

1. Gather all parts for the desk including the tabletop.
(1) pc Expandable Beam
(2) pcs Side Cantilevers
(2) pcs Snap-on Lifting Columns 2 pcs Snap-on Feet
(1) pc Power Cable
(1) pc Control Switch 1 pc Hardware Pack
(1) pc Lifting Column Removal tool
2. Turn the tabletop upside down.
3. Fix the beam length.
A-Series Installation
Installation
1
Advertisement
Summary of Contents for Grand Stands A Series
- Page 1 Installation Parts 1. Gather all parts for the desk including the tabletop. (1) pc Expandable Beam (2) pcs Side Cantilevers (2) pcs Snap-on Lifting Columns 2 pcs Snap-on Feet (1) pc Power Cable (1) pc Control Switch 1 pc Hardware Pack (1) pc Lifting Column Removal tool 2.
- Page 2 3.1. Extend the beam to the required length (1150 mm to 1750 mm (45” to 69”), adjustable in 50 mm (2”) steps). 4. Mount the cantilevers. 4.1. Place a cantilever slightly tilted at the end of the beam. 4.2. Press the cantilever into place until a click is heard and the snap joint locks the cantilever in the correct position. 4.3.
- Page 3 7.1. Ensure that the columns are completely retracted. 7.2. Tilt the columns and place them correctly on the beam using the guiding notches. 7.3. Fix the column to the beam by pressing down until a “click” is heard and both pawls lock the column in the correct position. 8.
- Page 4 10. Mount the feet Important information Important information on GRAND STANDS products can be found under the following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.
- Page 5 Repairs In order to avoid the risk of malfunction, all A-Series repairs must only be carried out by authorized GRAND STANDS workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorized GRAND STANDS workshops.
