Summary of Contents for Automotive ET2238B
- Page 1 PRESSURE / VACUUM PUMP AND BRAKE BLEEDING KIT 1. FEATURES 2. SPECIFICATIONS 3. INSTRUCTIONS...

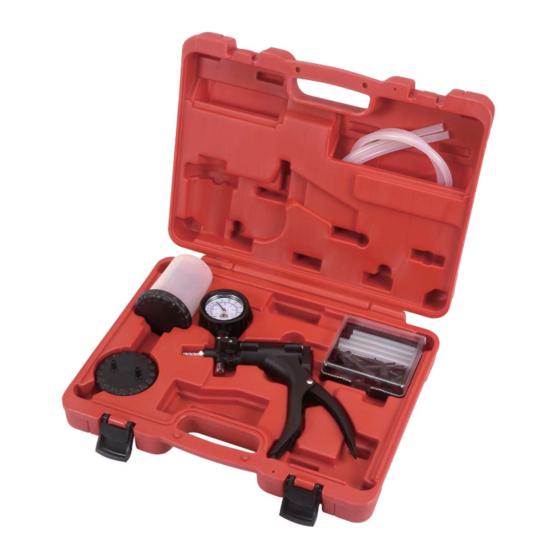

- Page 2 1. FEATURES Kit for testing and diagnosing most systems that require pressure or vacuum to operate, for example, intake manifold vacuum, fuel pressure valve, EGR, air conditioning, and forced-air induction systems Pump with a sturdy nylon case and with a gauge that can test both pressure and vacuum Accessories include a reservoir bottle, caps, hoses, and adapters for one-person brake bleeding Provided with a pack of adapters for brake bleeder valves and pressure/vacuum tests 2.
- Page 3 (Fig. 2) and the pump. Press the handle continuously and read the pressure value on the gauge (Fig. 3) Refer to automotive manufacturer’s service manual for standard Fig. 2 values. Press pressure release button to release pressure before disconnecting the pump from the engine.
- Page 4 Press the handle continuously and read the vacuum value on the gauge (Fig. 5) Refer to automotive manufacturer’s service manual for standard Fig. 5 values Press pressure release button (Fig. 6) to release vacuum before disconnecting the pump from the engine Fig.
