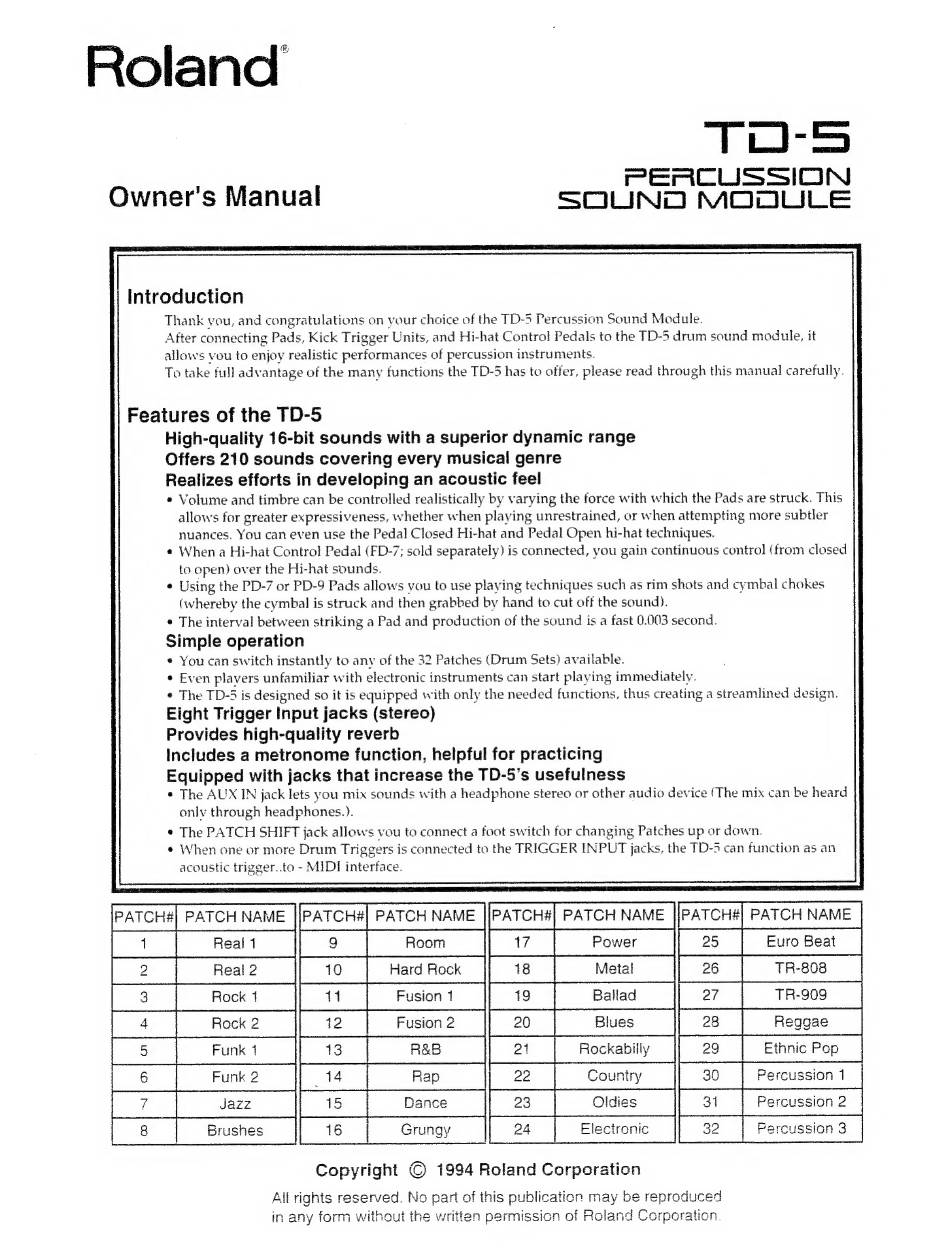

Rolan TD-5 Owner's Manual

Roland
To-5
PERCUSSION
Owner's Manual SOUND MODULE
Introduction
Thank you, and congratulations on your choice of the TD-3 Percussion Sound Module.
After connecting Pads, Kick Trigger Units, and Hi-hat Control Pedals to the TD-5 drum sound module, it
allows vou to enjoy realistic performances of percussion instruments.
To take full advantage of the many functions the TD-5 has to offer, please read through this manual carefully.
Features of the TD-5
High-quality 16-bit sounds with a superior dynamic range
Offers 210 sounds covering every musical genre
Realizes efforts in developing an acoustic feel
* Volume and timbre can be controlled realistically by varying the force with which the Pads are struck. This
allows for greater expressiveness, whether when playing unrestrained, or when attempting more subtler
nuances. You can even use the Pedal Closed Hi-hat and Pedal Open hi-hat techniques.
¢ When a Hi-hat Control Pedal (FD-7; sold separately) is connected, you gain continuous control (from closed
to open) over the Hi-hat sounds.
* Using the PD-7 or PD-9 Pads allows you to use playing techniques such as rim shots and cymbal chokes
(whereby the cymbal is struck and then grabbed by hand to cut off the sound).
¢ The interval between striking a Pad and production of the sound is a fast 0.003 second.
Simple operation
* You can switch instantly to any of the 32 Patches (Drum Sets) available.
* Even players unfamiliar with electronic instruments can start playing immediately.
* The TD-5 is designed so it is equipped with only the needed functions. thus creating a streamlined design.
Eight Trigger Input jacks (stereo)
Provides high-quality reverb
Includes a metronome function, helpful for practicing
Equipped with jacks that increase the TD-5's usefulness
* The AUX IN jack lets you mix sounds with a headphone stereo or other audio device (The mix can be heard
only through headphones. ).
¢ The PATCH SHIFT jack allows vou to connect a foot switch for changing Patches up or down.
* When one or more Drum Triggers is connected to the TRIGGER INPUT jacks, the TD-5 can function as an
acoustic trigger..to - MIDI interface.
=| Foon
13 R&B 29 Ethnic Pop
z
lectroni
3
24 E
Percussion 3
Co u
Copyright © 1994 Roland Corporation
All rights reserved. No part of this publication may be reproduced
in any form without the written permission of Roland Corporation.
