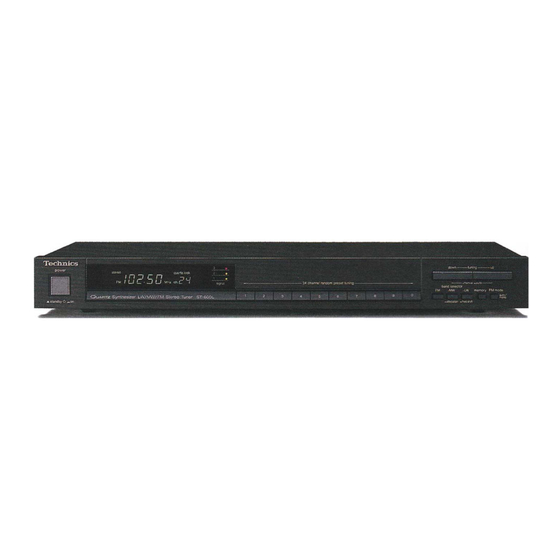

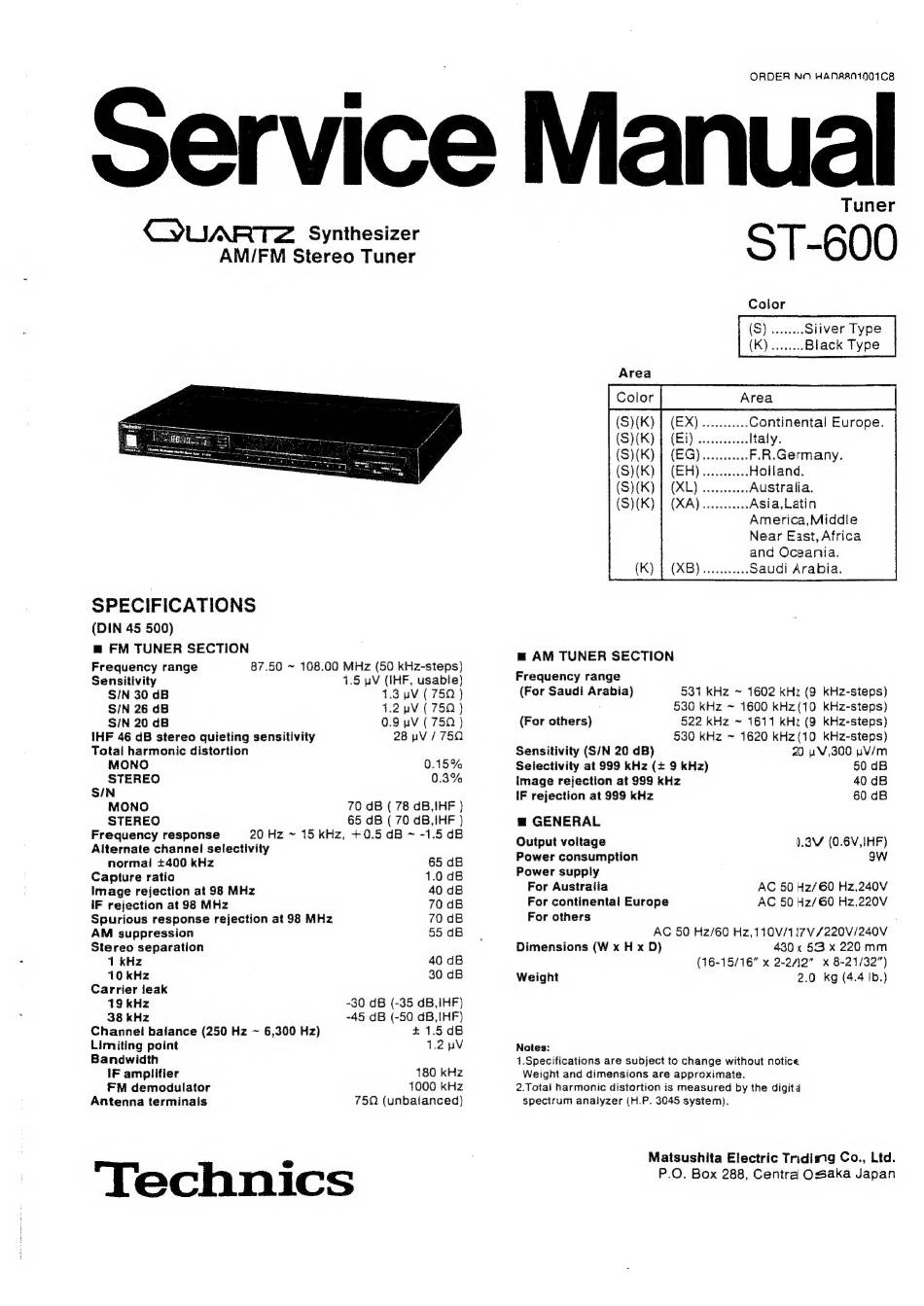

Technics ST-600 Service Manual

CYUARTZ Synthesizer
AM/FM Stereo Tuner
SPECIFICATIONS
(DIN 45 500)
m FM TUNER SECTION
Frequency range 87.50 ~ 108.00 MHz (50 kHz-steps)
Sensitivity 1.5 uV (IHF, usable)
S/N 30 dB 1.3 uV (75Q )
S/N 26 dB 4.2 pV (760 )
S/N 20 dB 0.9 pV (750 )
IHF 46 dB stereo quieting sensitivity 28 pV / 750
Total harmonic distortion
MONO 0.15%
STEREO 0.3%
S/N
MONO 70 dB ( 78 dB,IJHF )
STEREO 65 dB ( 70 dB,IHF )}
Frequency response 20 Hz ~ 15 kHz, +0.5 dB ~ -1.5 dB
Alternate channel selectivity
normal +400 kHz 65 dB
Capture ratio 1.0 dB
Image rejection at 98 MHz 40 dB
IF rejection at 98 MHz 70 dB
Spurious response rejection at 98 MHz 70 dB
AM suppression 55 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Carrier leak
19 kHz -30 dB (-35 dB,IHF)
38 kHz -45 dB (-50 dB, IHF)
Channet balance (250 Hz ~ 6,300 Hz) +1.6dB
Limiting point 1.2 pV
Bandwidth
IF amplitier 180 kHz
FM demodulator 1000 kHz
Antenna terminals 75Q (unbalanced)
'Technics
ervice Man
ORDER NO HaAnARN1N01C8
Tuner
5 T-600
Color
Siiver Type
Black Type
Asia,Latin
America,Middle
Near East, Africa
and Oceania.
Saudi Arabia.
m@ AM TUNER SECTION
Frequency range
(For Saudi Arabia) 531 KHz ~ 1602 kHz (9 kHz-steps)
§30 kHz ~ 1600 kHz(10 kHz-steps)
(For others) 522 kHz ~ 1611 kHz (9 kKHz-steps)
§30 kHz ~ 1620 kHz(10 kHz-steps)
Sensitivity (S/N 20 dB) 20 pV,300 pVv/m
Selectivity at 999 kHz (+ 9 kHz) 50 dB
Image rejection at 999 kHz 40 dB
IF rejection at 999 kHz 60 dB
mw GENERAL
Output voltage ).38V (0.6V,IHF)
Power consumption OW
Power supply
For Australia AC 50 Hz/60 Hz,240V
For continentai Europe AC 50 Hz/60 Hz,220V
For others ;
AC 50 Hz/60 Hz,110V/127V/220V/240V
Dimensions (W x H x D) 430 « 53 x 220mm
(16-15/16" x 2-242" x 8-21/32")
Weight 2.0 kg (4.4 Ib.)
Notes:
1.Specifications are subject to change without notice
Weight and dimensions are approximate.
2.Totai harmonic distortion is measured by the digitd
spectrum analyzer (H.P. 3045 system).
Matsushita Electric Tridis1g Co., Ltd.
P.O. Box 288, Central OSaka Japan
