Running Boards Side Steps suitable for Mercedes GLC-Class X254 Coupe C254 (2022-up)
Code RBMBX254
To facilitate your installation, please read the product instruction manual
carefully before installation.
Accessories:
No. Qty.
1
2
2
2
3
2
4
8
5
24
Details

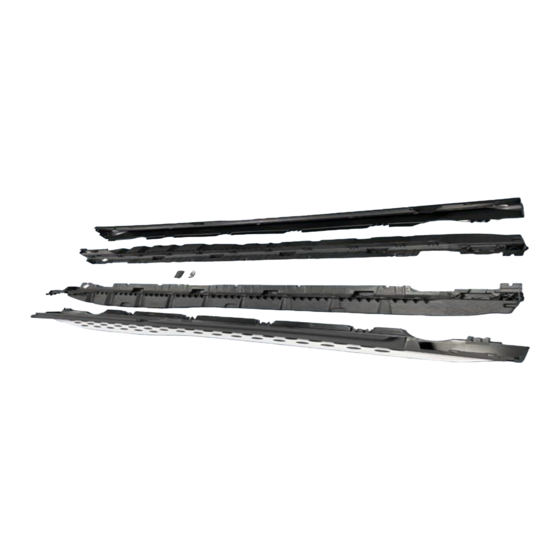

Side step assembly (left and right symmetry)
Lined skeleton (left and right symmetry)
Side step sealing plate (left and right symmetry)
buckle
M6 nut with pad
Advertisement
Related Manuals for KITT RBMBX254
Summary of Contents for KITT RBMBX254
- Page 1 Running Boards Side Steps suitable for Mercedes GLC-Class X254 Coupe C254 (2022-up) Code RBMBX254 To facilitate your installation, please read the product instruction manual carefully before installation. Accessories: No. Qty. Details Side step assembly (left and right symmetry) Lined skeleton (left and right symmetry)
- Page 2 Running Boards Side Steps suitable for Mercedes GLC-Class X254 Coupe C254 (2022-up) Code RBMBX254 Installation steps: (The installation steps on the left and right are the same, only the installation method on the right is described. Step 1: Remove the original car skirt.
- Page 3 Running Boards Side Steps suitable for Mercedes GLC-Class X254 Coupe C254 (2022-up) Code RBMBX254 Step 3: Open the car door, fix the lining frame on the car and tighten it. Picture 4 Step 4: Cut off the middle section of the pedal shell according to the dotted line in Figure 5 and install the spare clamp in Figure 1 at this position (Figure 6).
- Page 4 Running Boards Side Steps suitable for Mercedes GLC-Class X254 Coupe C254 (2022-up) Code RBMBX254 Picture 7 Step 5: Cut off part of the rear wheel eyebrow tab (remaining 3MM, cut off the rest) Picture 3MM remaining...
- Page 5 Running Boards Side Steps suitable for Mercedes GLC-Class X254 Coupe C254 (2022-up) Code RBMBX254 Step 6: Install the pedal shell (Picture 9) and lock the bottom nut (install the rear section first) (Picture 10). Picture 9 Picture 10 Step 7: Check whether all screws are tightened, pack the tools, and the installation is complete.
