Summary of Contents for purway Crystal Group PUR PREMIUM TOP 600 GPD

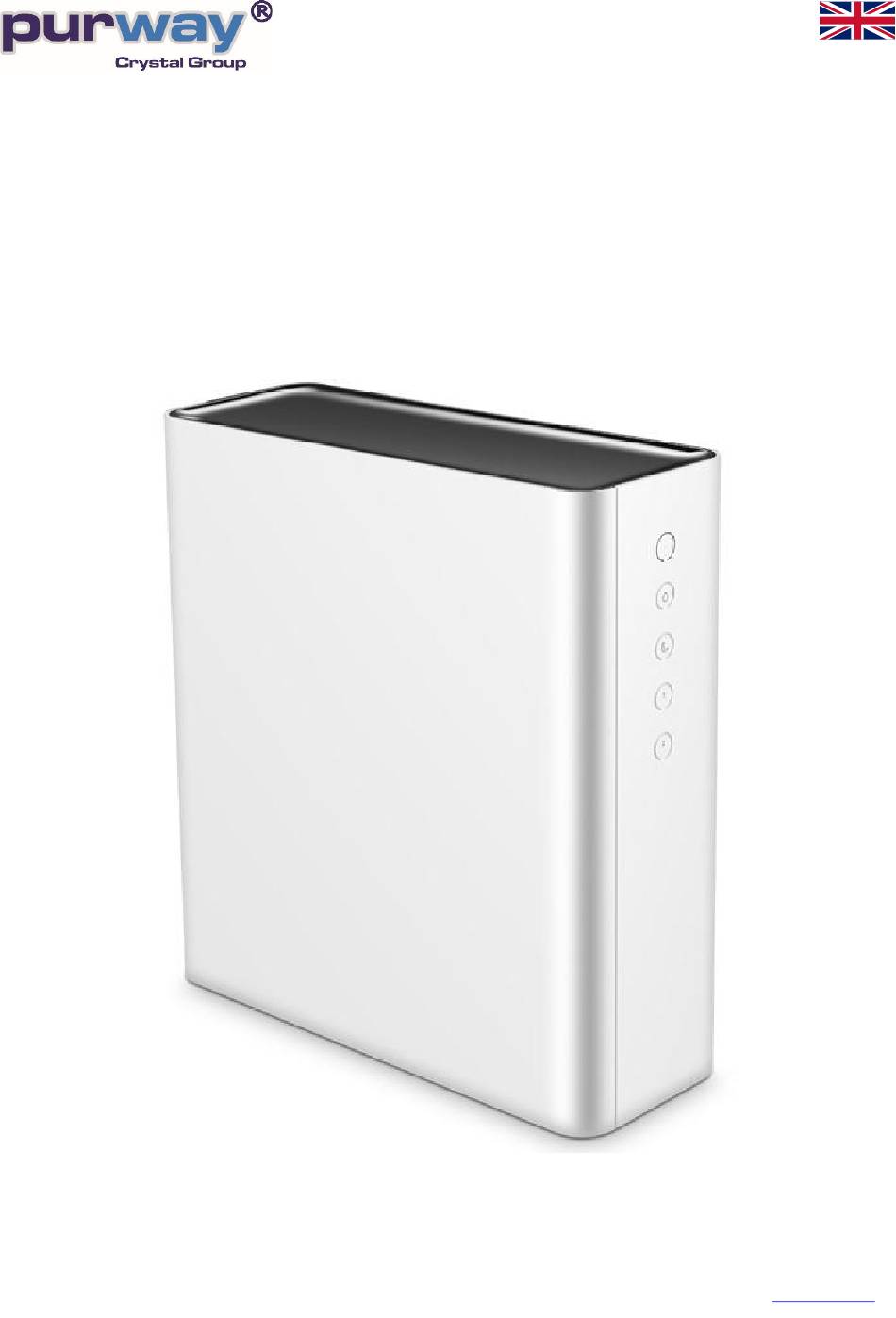

- Page 1 PUR PREMIUM TOP 600 GPD User manual Bongartz GmbH - purway Crystal Group® | Damaschkestr. 10 | 28307 Bremen | Telefon: +49 (0)4721 - 66 30 50 | E-Mail: info@purway.de...
-
Page 2: Table Of Contents
Troubleshooting ..............................14 Dear Customer, Thank you for purchasing the PUR PREMIUM TOP 600 GPD direct flow reserve osmosis water purifier produced by purway Crystal Group©. The reverse osmosis system in your possession is one of the most efficient and practical water treatment systems currently available on the market. -
Page 3: Safety Instructions
Safety instructions Do not make any changes to Do not cover the device! the device! Do not exceed the maximum Do not load the system with water inlet pressure of 4 bar! heavy objects! Do not contaminate the Do not use the device near system with caustic or sources of fire! corrosive materials! -
Page 4: Scope Of Delivery
Scope of delivery • 1x Reverse osmosis system PUR PREMIUM TOP 600 GPD including pre-installed filters • 1x User manual PUR PREMIUM TOP 600 GPD • 1x Drain clamp for 1/4“ tube • 1x 3-way inlet valve with washer 1/2" and 3/8”... -
Page 5: Introduction To The Main Functions Of The Reverse Osmosis System
Introduction to the main functions of the reverse osmosis system Inlet solenoid valves Wastewater solenoid valves cleaning solenoid valve RO-membrane 600 GPD: 0,0001 µm effective filtration of bacteria, viruses, heavy metals, pesticides, insecticides, residues, and other harmful substances. The achieved TDS reduction rate can be up to 95%. HPCC filter: Pre-filter: 5 µm PP filter for filtering fine sediments such as sand, rust, etc. -
Page 6: Overview
Overview water inlet Waste water clean/reset operation mode Stand by on / off filter HPCC pure water RO-membrane RO membrane 600 GPD filter HPCC top cover Clean: Press the "clean/reset" button and the system will flush for 60 seconds, if you press the button again within the 60 seconds, the flushing process will be interrupted. -
Page 7: Installation Instructions
Installation instructions • Please read the operating instructions carefully and be sure to follow the instructions and information. • If the device or its components are damaged, please contact the supplier or a specialist. We are not liable for any damage caused by improper handling. •... - Page 8 Connection diagramm...
- Page 9 4. Installation of the water supply Ball valve Connection faucet Screw nut Washer 3-way inlet valve Ball valve Washer Inlet water valve 4.1 Shut off the water supply. 4.2 Release the flex tube of your faucet in the cold water and screw the 3-way inlet valve to the water pipe. 4.3 Ensure a correct fit of the washers.
- Page 10 5. Install the ball valve to the reverse osmosis system. 5.1 Wrap Teflon tape around the male thread of the ball valve and screw it into the 3-way inlet valve 5.2 Take the 3/8“tube and carefully cut it to the Teflon tape desired length with the cutter.
- Page 11 7. Installation wastewater 6.1 Drill a 6 mm hole above 6.2 Mount the supplied d rain clamp with 6.3 Insert the wastewater the siphon bend. the seal on the hole and tighten the screws tube into the quick- with a screwdriver. change adapter.
-
Page 12: Initial Start-Up
Initial start-up Please make sure that the faucet of the reverse osmosis system is closed when the system is started up for the first time, so that the system can perform an automatic flush after plugging in the power switch. This ensures that any possible coal dust from the prefilters will be flushed out and does not reach the membrane! Usage hint To prevent microbial contamination on the membrane during storage and transport, the membrane was... -
Page 13: Filterchange
Filterchange You must change the filter when you have reached the maximum service life or the maximum flow volume, the latter is signaled to you with the help of the display matrix. The useful life of six months based on DIN standard maintenance of drinking water systems . DIN EN 806- 5:2012 must be observed for hygienic reasons. - Page 14 To change the filter, shut off the water supply to the reverse osmosis system! Step 1: Step 2: Open the housing cover of your Turn cartridge PUR PREMIUM TOP 600 GPD approx. 90° anti- reverse osmosis system to clockwise until it stops.
-
Page 15: Troubleshooting
Troubleshooting Error Reason Solution The device cannot be Device is not connected to the power. Check the power supply. switched on. power supply defective. Contact customer service. The pump works Blown fuse in the computer control. Replace the computer controller. normally, but no pure Inlet water solenoid valve is defective, Replace the solenoid valve. - Page 16 Directive 2014//35/EU, 2014/30/EU and 2011/65 /EU. Only for use in closed rooms! Bongartz GmbH - purway Crystal Group® | Damaschkestr. 10 | 28307 Bremen | Telefon: +49 (0)4721 - 66 30 50 | E-Mail: info@purway.de...
