INSTALLATION/OWNER'S MANUAL

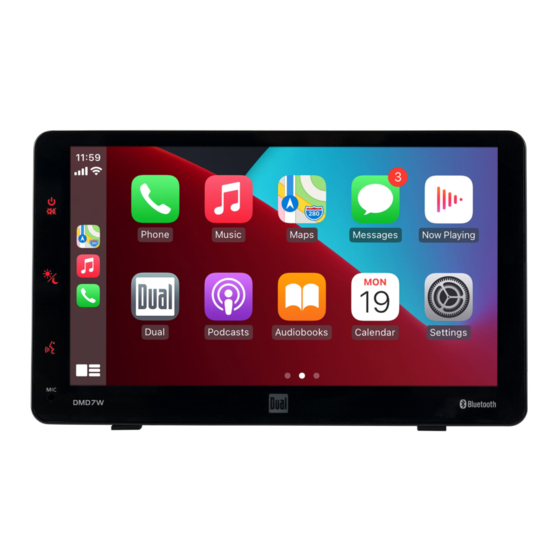

Dash Mount 7" Touchscreen Monitor with Wireless Apple CarPlay

and Android

Table of Contents

Summary of Contents for Dual DMD7W

Page 1 DMD7W INSTALLATION/OWNER’S MANUAL ® Dash Mount 7" Touchscreen Monitor with Wireless Apple CarPlay and Android...
Page 2 Copyright Notes The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. Use of the Apple CarPlay logo means that a verhicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that use of this product with iPhone, iPod or iPad may affect wireless performance.
Page 3: Table Of Contents
Table of Contents Page Important Notes ..........FCC Compliance .
Page 4: Important Notes
INSTALLATION DMD7W Important Notes Please read the instructions carefully before attempting to operate. • Ensure that the is mounted in a place that will not block your view of the road. • The has a built-in speaker. However, to play music over your car radio please ensure that the FM Transmitter function has been set up and is connected properly with your car radio (see page 9) or use the 3.5mm audio output located on the 12v power adapter and connect to your car radio AUX input (if available).
Page 5: Preparation/Mounting
INSTALLATION DMD7W Preparation Before You Start • Avoid installing the unit where it would be subject to high temperatures from direct sunlight, dust, dirt or excessive vibration. WINDSHIELD / DASHBOARD MOUNT SILICON COVER (Cover on the back) Adjustable plastic legs •...
Page 6: Wiring Diagram

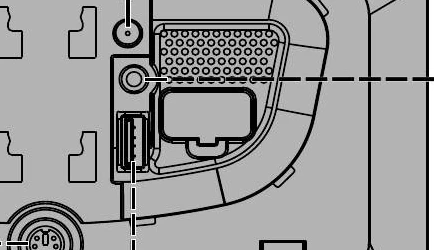

INSTALLATION DMD7W Wiring Diagram - Inputs/Outputs GPS ANTENNA Note: Use to improve map accuracy. Speaker Send audio to your existing car stereo through the 3.5mm AUX output. 12V Power Adapter USB Playback External Microphone USB port for charging only (2.1A) Wired Apple CarPlay and Use to improve voice quality.
Page 7: Control Locations
INSTALLATION DMD7W Control Locations The radio display features the following functions and displays: POWER/MUTE DIMMER VOICE ACTIVATION BUTTON INTERNAL MICROPHONE...
Page 8: General Operation
INSTALLATION DMD7W General Operation Long press icon to turn the unit on. Press and hold to turn the unit Power On/Off off. Volume Press icon at the top left corner of the screen to display the volume .Press to increase or decrease the volume level.
Page 9 INSTALLATION DMD7W General Operation From the Main Menu screen, select Setup to access the Settings menu and Setup Menu select from categories represented by the icons on the bottom of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
Page 10: Audio Operation
INSTALLATION DMD7W Audio Operation Equalizer Menu Press the "Settings" icon on the main menu screen to adjust the Balance and Equalizer controls (16-Band Tone Control and 8 Presets EQ Settings). FM Transmitter FM Transmitter Operation From the main menu, touch FM Transmitter icon on the screen to select FM Transmitter mode.
Page 11: Usb Operation
INSTALLATION DMD7W USB Operation From the main menu, touch the USB icon on the main screen. Press icon to return to Main Menu screen. Main Menu Displays source currently playing. Current Mode Indicator Press the icon to adjust Equalizer setting.
Page 12: Media Compatibility
INSTALLATION DMD7W Media Compatibility File Type FAT 12 File System FAT 16/FAT 32  .mp3/.MP3/.Mp3/.mP3/.flac  File Extension .rmp/.m4a MPEG 1  MPEG MPEG 2  Format MPEG 2.5  MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz...
Page 13 INSTALLATION DMD7W Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
Page 14: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "DMD7W". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once.
Page 15 INSTALLATION DMD7W Bluetooth Operation Devices Press the "DEVICES" to show the pairing device list. To connect to a previously connected device. Press the current device name. Any previously connected devices that are in rang will be listed by their device name. Press the desired device name to disconnect from the current device and connect to the new device.
Page 16: Driving Orientation Settings
INSTALLATION DMD7W Driving Orientation Settings To enhance the driving experience, the allows the user to configure Apple CarPlay and Android for either Left Hand Drive (LHD) or Right Hand Drive (RHD) vehicles. To select desired configuration, select either LHD or RHD from the Settings menu:...
Page 17: Wired & Wireless Apple Carplay Operation
INSTALLATION DMD7W Wired & Wireless Apple CarPlay Operation Wired connection 1. Connect an Apple CarPlay compatible device to this unit via USB. 2. Press the Apple CarPlay icon. The Apple CarPlay home screen appears. Wireless connection Before using Apple CarPlay wirelessly, turn on the Bluetooth/Wifi function on the Phone.
Page 18: Apple Carplay Operation
INSTALLATION DMD7W Apple CarPlay Operation Apple CarPlay is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
Page 19 INSTALLATION DMD7W Apple CarPlay Operation When the Apple CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands.
Page 20: Android Operation
INSTALLATION DMD7W Android Operation Android brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music.
Page 21 INSTALLATION DMD7W Android Operation Using Android The Android home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
Page 22: Register Your Product
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name...
Page 23: Specifications
INSTALLATION DMD7W Specifications Monitor Panel size: 7” Touchscreen Resolution: 1024 (H) x 600 (V) Phone Connectivity Connection method: Wired / Wireless Rear USB Compatibility: High Speed USB 2.0 USB Class: Mass storage class General Car Connectivity: Broadcast to FM Station or 3.5mm Aux Output...
Page 24: Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized Dual dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •...
