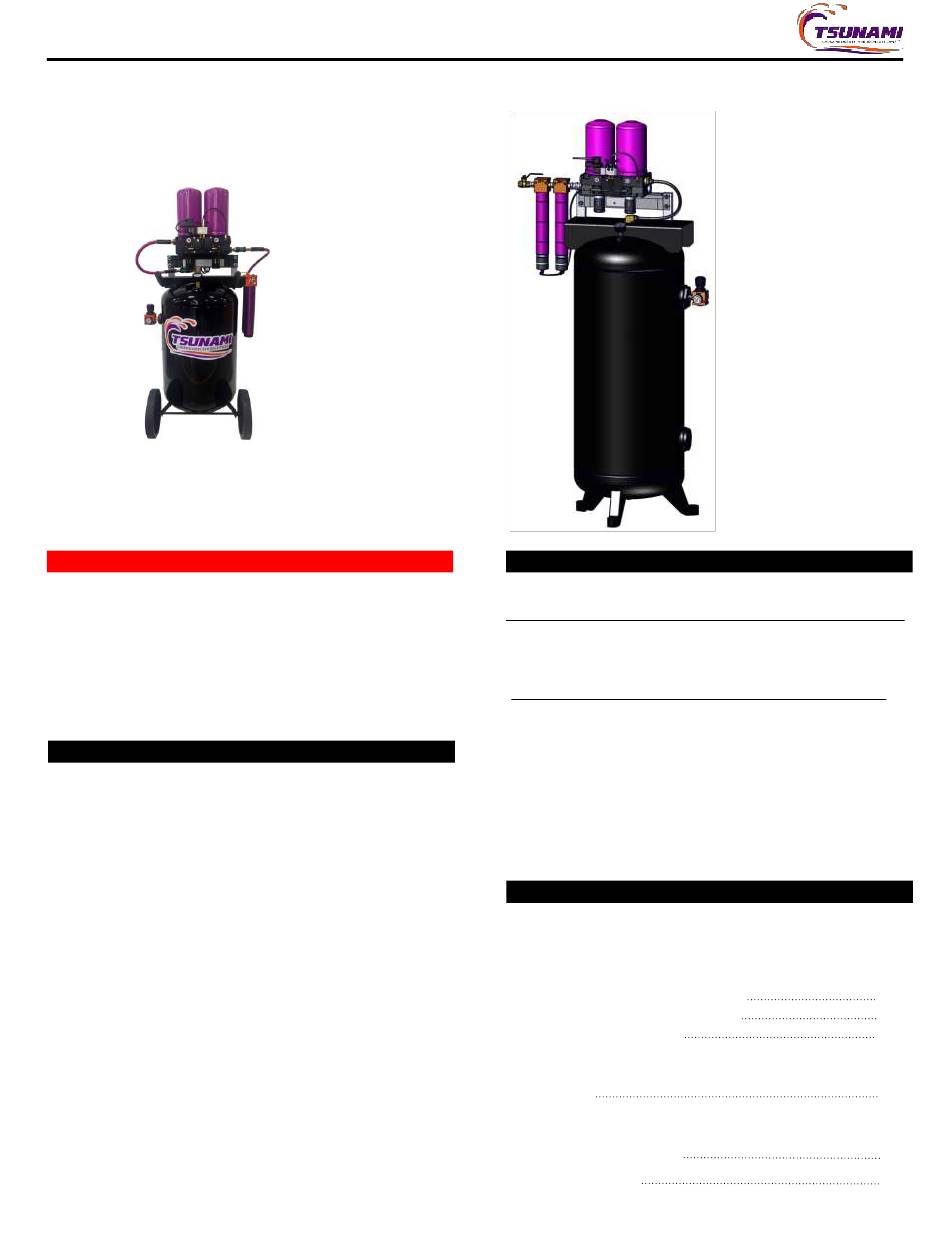

Tsunami PURE Series User Manual

USER MANUAL
THE FOLLOWING USER MANUAL APPLIES TO TSUNAMI PURE SERIES TANK MOUNTED REGENERATIVE DRYERS
WARNING
Your safety is very important. Read all instructions before beginning any
service or installation on your Tsunami Regenerative Dryer. Always wear
safety eye protection when working with compressed air products.
Failure to follow maintenance instructions could result in operating
failure or product damage. System pressure must be released prior to
any installation or service. Always install the system with the arrows
indicating the direction of airflow. Use appropriate thread sealant on all
connection fittings unless otherwise specified. Do not alter the dryer or
filtration system from its original design as this may cause failure in its
operational parameters.
DESCRIPTION
Congratulations on the purchase of your Tsunami Regenerative Drying
System! By adhering to the specifications and maintenance schedule
listed in the manual, your air system will provide years of service with
minimal maintenance.
Incoming air enters the 1st stage water separator where water and
particulates are removed down to 10 micron. The air then travels
through the 2nd stage oil coalescing filter where oil aerosols are filtered
down to .001 ppm and particulates are trapped down to .01 micron. The
pretreated air enters the regenerative dryer where molecular sieve
desiccant captures water vapor. Approximately every 2 minutes (90 seconds for
12v timers using the pneumatic powered generator) the timer sends out a
signal causing an internal piston to shift. The shift in the piston redirects air
flow through the opposite dryer canister(s); dryers are available with
alternative voltage options. The Tsunami Regenerative Drying System can
provide dew points down to -80°F and relative humidity down to .01% RH. All
dryers come standard with automatic drains to assure proper discharge of all
contaminants captured in the water separator and oil coalescing filter.

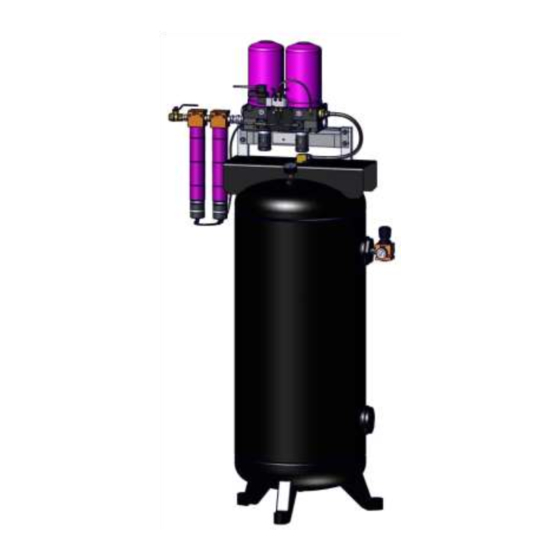

Tsunami Pure Series Tank Mounted Dryers come standard with a 110v
timer/coil assembly to operate the air valve actuation controlling tower cycling.
Other voltages are available, including 220 VAC as well as self powered units
equipped a pneumatic generator. The Pneumo-Generator has the ultimate
solution for self-contained installations, or mobility, as the generator provides
power to the 24 VDC timer/coil assembly.
Date Printed: 7/24/2023
21999-0945
21999-0945-PP
21999-0945-PP-MM
DRYER SPECIFICATIONS
Maximum Inlet Air Temperature: 150°F
Dryer Max Flow
Pure-10 Tank Mounted 40 CFM
ROVE Mobile Dryer 40 CFM
Regeneration
Orifice # of Towers
.030 2
Pneumatic Generator Models
Pneumo-Generator Specifications:
Suggested Inlet Pressure: 45-50 PSI
Minimum Inlet Pressure: 44 PSI
Maximum Inlet Pressure: 101 PSI
Maximum Inlet Air Temperature: 122°F
Maximum Air Consumption at 101 PSI: 2.6 CFM
INSTALLATION & SERVICE REQUIREMENTS
IMPORTANT: Tsunami Regenerative Dryers are configurable in multiple
variations. Before beginning installation it is important to determine the
direction of air flow which best meets your installation application
requirements. Failure to follow required maintenance schedule will void
warranty.
Dryer Installation – ROVE Mobile Dryer
Dryer Installation – Pure-10 Tank Mounted
6 Month Service, Every 6 Months
•
Replace Oil Coalescing Filter Element
•
Inspect and lubricate pistons and piston bores
3 Year Service
•
Replacement of desiccant towers
•
Replacement pistons
Parts Breakdown – Service Parts
Troubleshooting Guide
1
21999-0955
21999-0955-220
21999-0955-PP
Maximum Pressure: 175 psi
Inlet Port Outlet Port Weight
1/2" NPT 1/2" NPT 42 lbs
1/2" NPT 1/2" NPT 42 lbs
# of Towers # of Towers
Drying Regenerating
1 1
764-2089
pg. 2
pg. 3
pg. 4
pg. 5
pg. 5
pg. 5
