EASY ASSEMBLY AND OPERATION INSTRUCTIONS

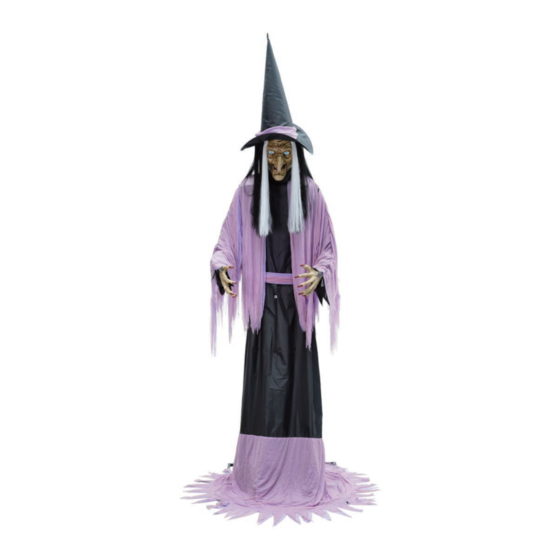

280-4349 Animated Oversized Towering Witch
Please follow the step by step guide and enjoy your
Animated Oversized Towering Witch!
FOR INDOOR AND OUTDOOR USE.
CARE AND STORAGE INSTRUCTIONS
For best performance operate your item indoors. When not in use, store this product in its
original packing. Do not over expose prop from heat.

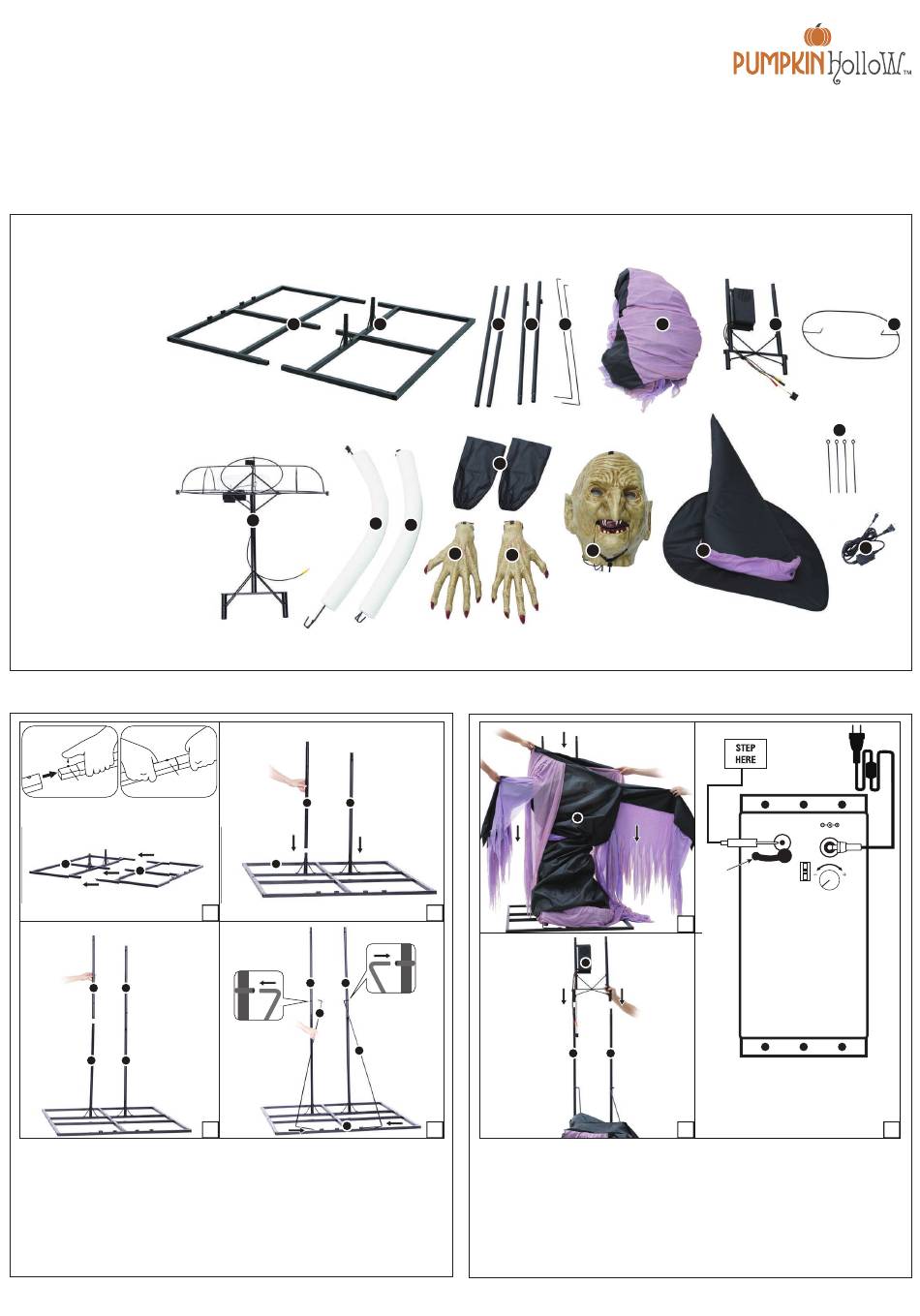

PARTS LIST
A. Base Front x 1
B. Base Back x 1
C. Lower Poles x 2
D. Upper Poles x 2
E. Support Struts x 2
F. Costume x 1
G. Lower Body Frame x 1
H. Hip Hoop x 1
I. Upper Body Frame x 1
J. Left Arm x 1
K. Right Arm x 1
L. Sleeve Cuffs x 2
M. Left Hand x 1
N. Right Hand x 1
O. Head x 1
P. Hat x 1
Q. Stakes x 4
R. Adapter (Included)
Input: 120V AC 50/60Hz
Output: 5.9V 1.5A
PLEASE REMOVE AND LAY OUT ALL PARTS FROM THE BOX PRIOR TO ASSEMBLY. IF PARTS ARE MISSING, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT AND CONTACT
CUSTOMER SERVICE (SEE LAST PAGE FOR CUSTOMER SERVICE CONTACT INFORMATION).
Click
Means It's
Locking Pin
Locked
Left
Back
B
A
Front
Right
D
D
C
C
STEP 1
Attach the (A) Base Front to the (B) Base Back by using the available quick connect push buttons
and pre-drilled holes as shown in Figure 1.
Attach the (C) Lower Poles to the (B) Base Back using the available quick connect push buttons and
pre-drilled holes as shown in Figure 2.
Attach the (D) Upper Poles to the (C) Lower Poles using the available quick connect push buttons and
pre-drilled holes as shown in Figure 3.
Slide the (E) Struts into the housings available on the (A) Base Front and in the housings available on
the (D) Upper Poles as shown in Figure 4.
A
B
I
J
C
C
Back
B
Right
Front
1
D
D
E
E
A
3
WARNING
This item is not a toy and should be used for decoration only. This item contains small parts that can be a
choking hazard. Keep all plastic and wire parts away from children.
1. Please use the adapter supplied by manufacturer.
2. Please assemble item according to instructions. Connect all wires according to matching color.
3. Children should be supervised by adults. Item should not be grabbed, as it becomes a tipping
hazard. Keep all away from the adapter, as it heats up during operation.
Please read all instructions carefully before assembling. Save this instruction sheet for future reference.
C
D
E
L
K
M
N
F
Left
2
D
4
STEP 2
Slide the (F) Costume over the assembly so that the opening of the (F) Costume is aimed towards the
back as shown in Figure 1.
Attach the (G) Lower Body Frame to the (D) Upper Poles using the available quick connect push
buttons and pre-drilled holes as shown in Figure 2.
Warning: The waterproof cap must cover the Try Me receiver when not in use as shown in Figure 3.
Now, plug the Adapter into the input receiving jack marked "DC 5.9V" on the Function Control Box
and route the Power Adapter down and out the bottom of the item.
F
O
P
(Not Included)
Waterproof
cap
1
G
D
OPTIONAL: If you choose to use the Step Activation Pad, plug
the connector into the input receiving jack marked "TRY ME"
on the Function Control Box and set the Step pad in front of
the character when ready to display.
Note: Do not plug the Power Adapter into power outlet until
item assembly is completed.
2
G
H
Q
R
Try Me / Essaie-moi / Pruébame
5.9 V
Sensor
Off/Try Me
On
3
1/4
