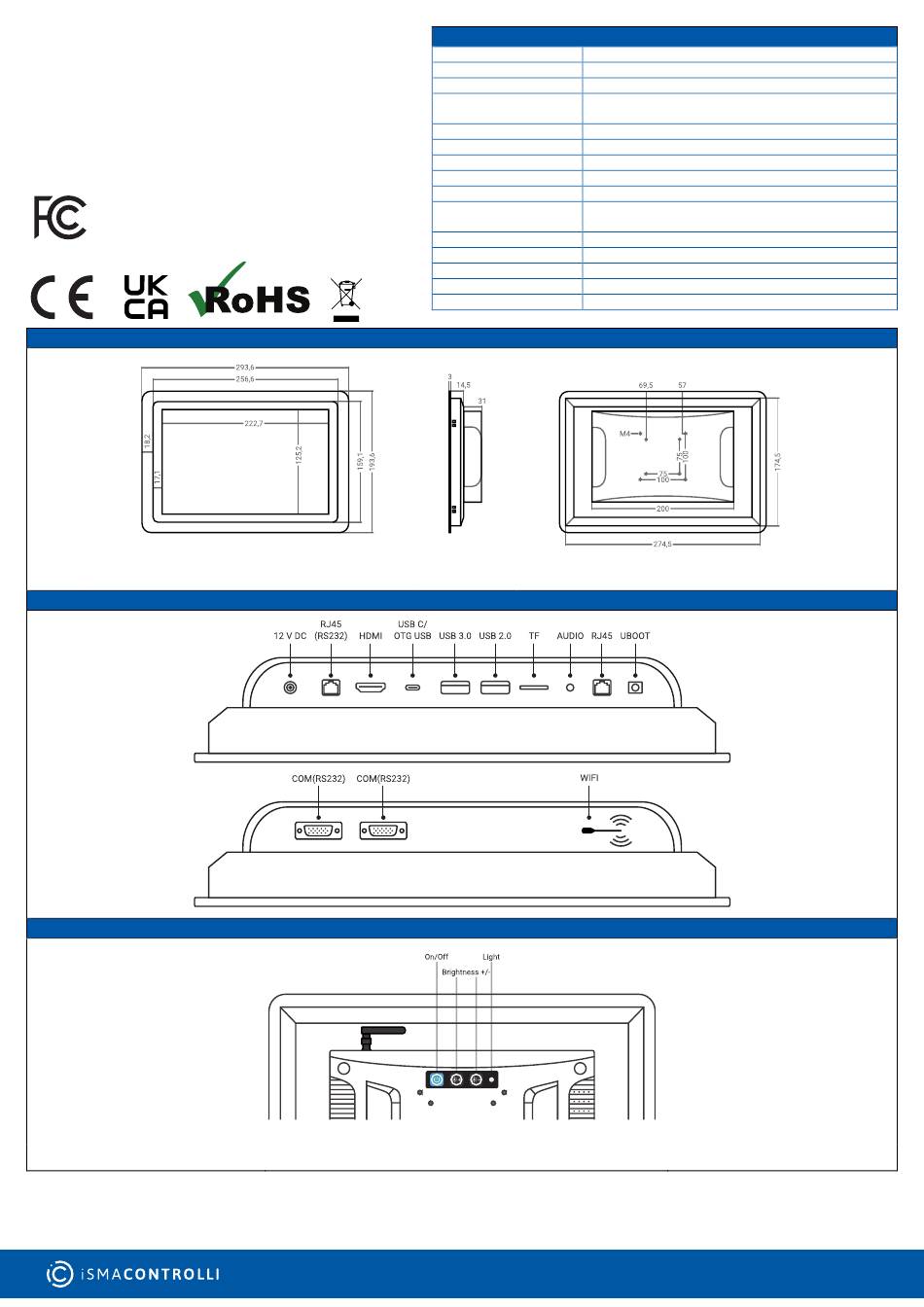

iSMA CONTROLLI iSMA-D-PA10C-B1 Installation Instruction

iSMA-D-PA10C-B1
iSMA CONTROLLI S.p.A. – Via Carlo Levi 52, 16010 Sant'Olcese (GE) - Italy | support@ismacontrolli.com
FRONT
REAR NAVIGATION BUTTONS
Brightness +/- buttons are prepared for future development
www.ismacontrolli.com
Power supply 110-240 V AC, 50/60 Hz
Panel power input 12 V DC
Power supply adapter EU, UK or US
IP, RS232, TF/SD Card, USB2.0, USB 3.0, USB C(OTG USB),
Interface
HDMI, RJ45, Audio output
Operating system Android 7.1
Display 10,1'', 10-point capacitive screen
Aspect ratio 16:9
Resolution 1366x768
Ingress protection rating IP65 - for front panel
Operating: -10°C to +60°C (14°F to 140°F)
Temperature
Storage -10°C to +60°C (14°F to 140°F)
Operation humidity 10 to 80%
Connectors Separable, max 2.5 mm
Dimension 293.6x193.6x48.5 mm (11.560x7.622x1.909 in)
Response time 5 ms
Housing material Aluminum alloy enclosure, color black, Bezel thickness 3 mm
DIMENSION
SIDE
INTERFACE
Installation Instruction| 1
SPECIFICATION
(18 – 12 AWG)
2
REAR
st Issue rev. 4 | 01/2022 page 1
