LumenRadio WDMXT500DUOMK2 User Manual

Wireless dmx transceiver
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
WDMXT500DUOMK2
Wireless DMX Transceiver
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDMXT500DUOMK2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LumenRadio WDMXT500DUOMK2

Summary of Contents for LumenRadio WDMXT500DUOMK2

  • Page 1 WDMXT500DUOMK2 Wireless DMX Transceiver User Manual...

  • Page 2: Safety Instructions

    1. INTRODUCTION Powered by Lumenradio CRMX module, the WDMX T500 DUO MK2 is an versatile and useful tool for lighting professional. With Cognitive Coexistence technology, the CRMX is the most safe adn reliable wireless DMX across the globe. It can act as transmitter, receiver or repeater.

  • Page 3: Specifications

    4. Specifications • Frequency band: 2.4GHz • DMX latency: <5ms • Antenna type: 5dBi • Transmission distance: approx. 500m • IP rating: IP20 • Power supply: AC 220-240V 50-60Hz • Power consumption: 15W max. • Fuse: F1A/250V • Dimension: 482mm x 147mm x 44mm •...
  • Page 4 DMX cable 3.4 TX mode selection 1) Press FUNCTION button shortly 3 times, then press and hold the button for at least 3 seconds to enter TX mode selection. LED will blink in different patterns to indicate currently selected protocol. One flash then a pause = W-DMX G3 mode is selected Two flashes then a pause = W-DMX G4S mode is selected Three flashes then a pause = CRMX mode is selected...

  • Page 5: Production Overview

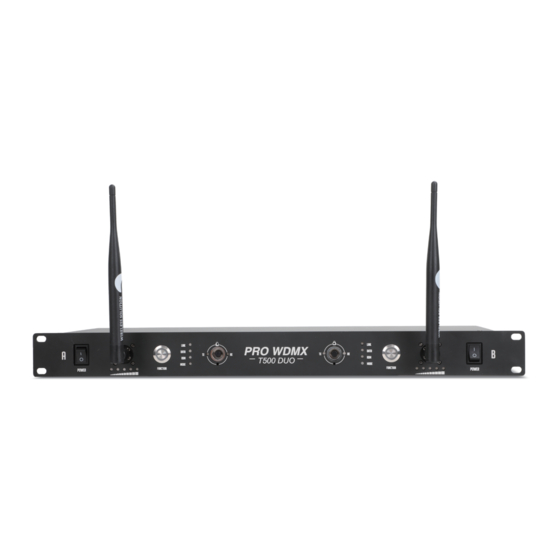

    1.4 Production Overview Power switch for A and B universe Antenna for A or B universe Signal strength level for A and B universe, Red = Link problem Function switch for A or B universe Interface LED indicators LINK on Transmitter: On=Normal operation, Fast flashing=Linking, Slow flashing =Unlinking LINK on Receiver: On=Linked with a Transmitter, Off =Unlinked...

  • Page 6: System Connection

    2. SETUP 500m max. in line of sight TRANSMITTER RECEIVER TRANSMITTER RECEIVER 1m min. 2.3 System connection Use DMX cables to connect DMX IN of the TRANSCEIVER to DMX source and DMX OUT of RECEIVER to lighting equipments. 2.4 Power Adapter The wireless system is designed to work on AC 100-240V 50/60Hz.
  • Page 7 DMX CABLE DMX CABLE Note: Maximum universes in coexistence: 16 3. OPERATION INSTRUCTIONS...
