- Page 1 ET3320C/3330C/3340C/3350C/3360C Two-channel Function/ Arbitrary Waveform Generator User's Manual Hangzhou Zhongchuang Electronics Co., Ltd.
- Page 2 Hangzhou Zhongchuang Electronics Co., Ltd. Adress: NO. 3 Kangle Road, Gongshu District, Hangzhou,China Postcode: 310015 Tel. No.：0571-56770222 Fax： 0571-56861355 Website：http://www.easttester.com http://www.cnheader.com QQ：2853705700...
-
Page 3: Table Of Contents
Contents 1. Basic introduction ...................... 1 1.1. Functional characteristic .................. 1 1.2. Matters needing attention .................1 2. Introduction to Front and Rear Panels ............... 1 3. Device Connection .....................3 3.1. Power connection .....................3 3.2. USB device interface ..................3 3.3. Communication extension interface .............. -
Page 4: Basic Introduction

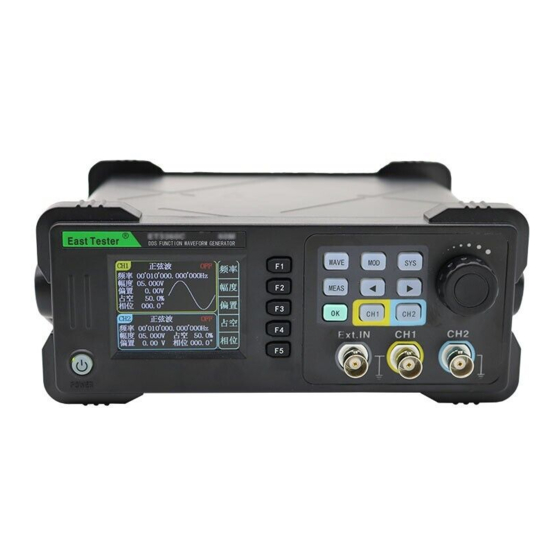

ET33C series has five models: ET3320C, ET3330C, ET3340C, ET3350C, ET3360C, the highest output frequency is 20MHz, 30MHz, 40MHz, 50MHz and 60MHz respectively. - Page 5 ET33C Function Signal Generator manual Figure 2-1 Front panel of the switch Power Key: Long press to power on, long press to power off. WAVE key: Enter the basic waveform output screen or selects a channel waveform on the basic waveform output screen.
-
Page 6: Device Connection
ET33C Function Signal Generator manual Figure 2-2 Rear panel (Standard configuration, no optional) 3. Device Connection 3.1. Power connection Please connect one end of the auxiliary power cord with the power supply socket of the instrument back panel, and the other end is connected to the AC. Turn on the power switch at the bottom of the power supply socket to charge the instrument. -
Page 7: Modulation Mode Operation
ET33C Function Signal Generator manual Figure 4-1-1 screen (main screen) Press the OK key, close or open the channel output at the same time, and perform a phase operation. Press CH1 or CH2 to select a channel as the primary channel. When the channel is open, press this key to close the channel. - Page 8 ET33C Function Signal Generator manual Figure 4-2-2 Modulation mode - frequency sweep Among them, burst, AM, FM, PM, ASK, FSK and PSK can be selected to edit the carrier. Press the carrier soft key of F4 to enter the carrier interface. Figure 4-2-3 Modulation mode - burst, AM The carrier interface is shown in FIG.
-
Page 9: Measurement Mode Operation
ET33C Function Signal Generator manual Figure 4-3-1 Measurement mode - Frequency meter and counter The measurement mode has 2 functions, one is a frequency meter, the other is a counter. They measure digital signals from the external input port. The frequency meter is used to measure the frequency. The frequency is measured by equal precision measurement. -
Page 10: Accessories
1. One three-core power cable 2. Two pc BNC coaxial cables 3. A USB data cable 4. One straight signal cable 5. Instruction Manual 6. Product Technical Indicators Frequency Characteristics Model ET3320C ET3330C ET3340C ET3350C ET3360C Sine 1μHz~ 20MHz 1μHz ~ 30MHz 1μHz ~ 40MHz... - Page 11 ET33C Function Signal Generator manual Duty Cycle freq<100kHz: 1%~99%; 100kHz≤freq<5MHz: 20% ~ 80%; 5MHz≤freq: 40% ~ 60%(0.1% resolution) Pulse Wave Characteristics Pulse Width Min 20ns; 1ns resolution Edge jump time Min 20ns; Pulse Wave Overshoot <5% Jitter 6ns+0.1%Period Sawtooth wave Characteristics Linearity Degree ≥98%(0.01Hz~10kHz) Sawtooth wave...
- Page 12 ET33C Function Signal Generator manual Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding Carrier Wave Source Internal/External VCO(external optional) Sine wave, square wave, triangle wave, upper oblique wave, lower Modulation Wave oblique wave Modulation 2mHz~20kHz Frequency Modulation depth 0%~120% FM Modulation Output Channel CH1 or CH2...
-
Page 13: Outline Specification
ET33C Function Signal Generator manual The phase 0°~360° modulation Frequency sweep function Sweep frequency CH1 or CH2 channel Frequency sweep Linear scan, logarithmic scan type Frequency sweep 1ms ~ 999.999s time Setting range Arbitrarily set the start and end points Frequency sweep Forward, reverse, round trip direction... -
Page 14: Links For The Software
ET33C Function Signal Generator manual 8. Links for the software http://www.easttester.com Appendics Table 1 Comparison table of 32 arbitrary waves in Chinese and English NegRamp Boxcar 负斜波 矩形窗 AttALT Barlett 指数衰减振荡 巴特利特窗 AmpALT Triang 指数增加振荡 三角窗 StairUP Blackman 上阶梯 布莱克曼窗 Halfsin Hamming 半波正弦...
