Summary of Contents for MERLYN FRAMELESS 8 Series

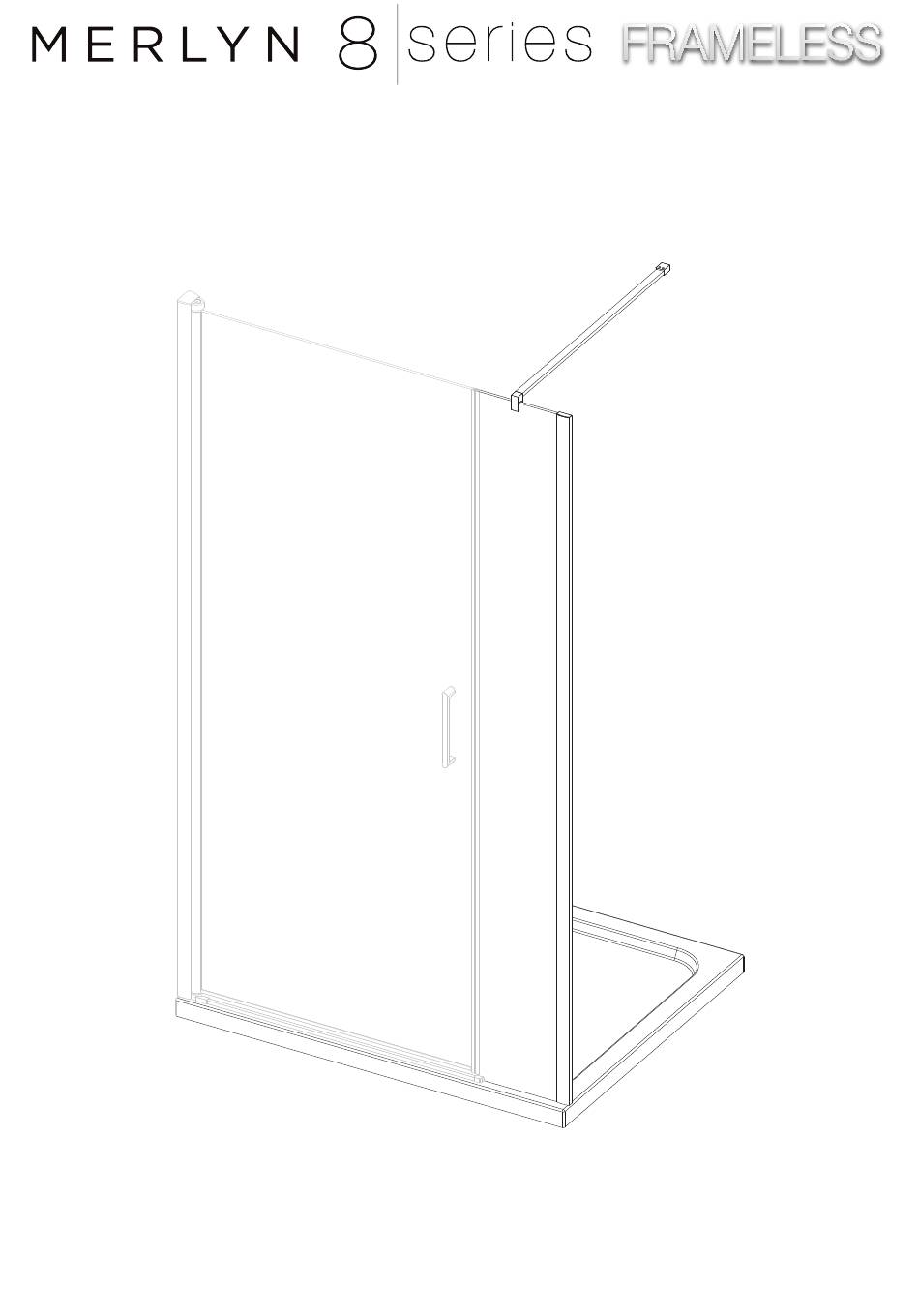

- Page 1 Installation guide for inline panel...
- Page 2 IMPORTANT: Please read the complete instructions before commencing fitting. Do not attempt to install the product unless you can tick all 4 boxes satisfactorily. Check that you have the tools required Check the installation site is compatible with the sizes of door supplied Check all the enclosure components are present Check the installation kit is complete The wall plugs supplied with the installation kit are...
- Page 3 Part No. Part No. Magnet seal Wall profile M7130 M7142 Flat head screw ST4x30 2SY51 Wall profile top capL/R M7144/M7145 Wall bracket M7127 Glass Panel A Φ6x30 wall plug B08070 M7128 Top support bar with glass clamp Bottom strip corner clip(L&R) M7147/M7148 Screw cap M7012...
-
Page 4: Tools Required
Fixing kit components M7127x1 M7012x1 2.5ALKEY M7128x1 2SAKx1 4x30mm B08070x5 2SY51x5 M7147/M7148 x2 M7144/M7145 x2 Tools required... - Page 5 Inline Panel Adjustment Adjustment “X” size 760+200 920-960 760+500 1220-1260 800+200 960-1000 800+500 1260-1300 900+200 1060-1100 900+500 1360-1400 1000+200 1160-1200 1000+500 1460-1500...
- Page 6 M7127 6*30WSER...
- Page 7 M7127 M7128 M7012 M7147/M7148 WARNIING - The bottom profile must be used to ensure water tightness under the moving panel. We cannot guarantee water tightness if this is not used.
- Page 8 SEALING INSIDE Seal top to bottom on the INSIDE between the wall profile and the wall Do not apply sealant on Note: 24 h. the inside of the tray. SEALING OUTSIDE Seal only along bottom on the OUTSIDE between glass rail profile and the tray and approx 50mm up...
