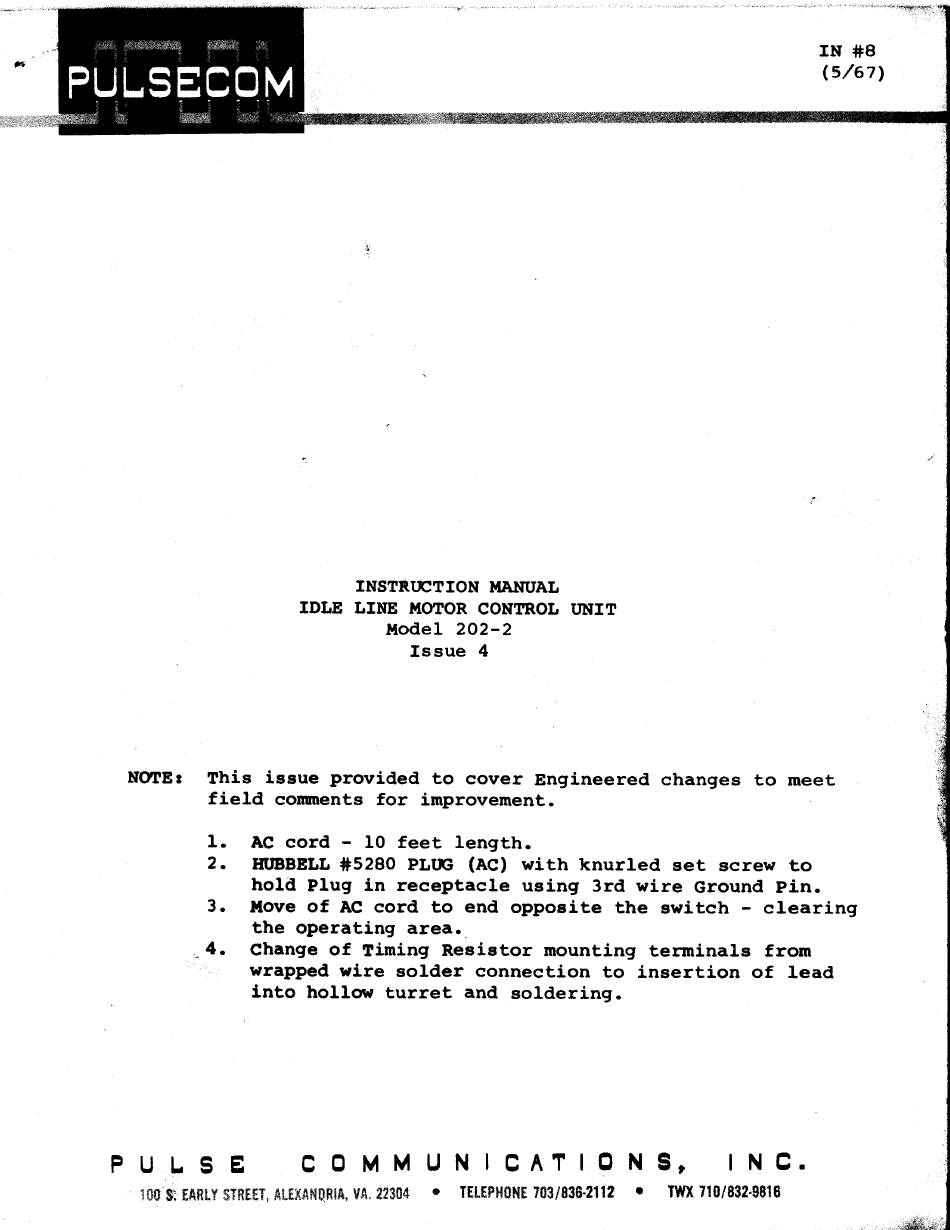

INSTRUCTION MANUAL
IDLE LINE MOTOR CONTROL UNIT
Model 202-2
Issue 4
IN #8
(5/67)
NOTE1 This issue provided to cover Engineered changes to meet
field comments for improvement.
1. AC cord - 10 feet length.
2. HUBBELL #5280 PLUG (AC) with knurled set screw to
hold Plug in receptacle using 3rd wire Ground Pin.
3. Move of AC cord to end opposite the switch - clearing
the operating area._
4. Change of Timing Resistor mounting terminals from
wrapped wire solder connection to insertion of lead
into hollow turret and soldering.
P U
L.
S E
COMMUNICATIONS, I N C.
1011
s;
EARLY STREET, AlEXANQRIA, VA. 22304 • TElEPHONE
703/836·2112 •
TWX
710/832·9816
