ERI967NAL

EAN: 5063022074317

ORIGINAL INSTRUCTIONS

V10823 BX220IM

MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 1

9/05/23 14:38 PM

Table of Contents

Need help?

Do you have a question about the ERI967NAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Erbauer ERI967NAL

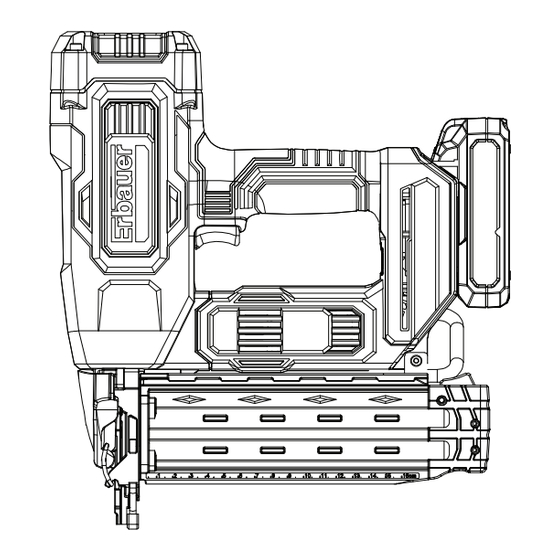

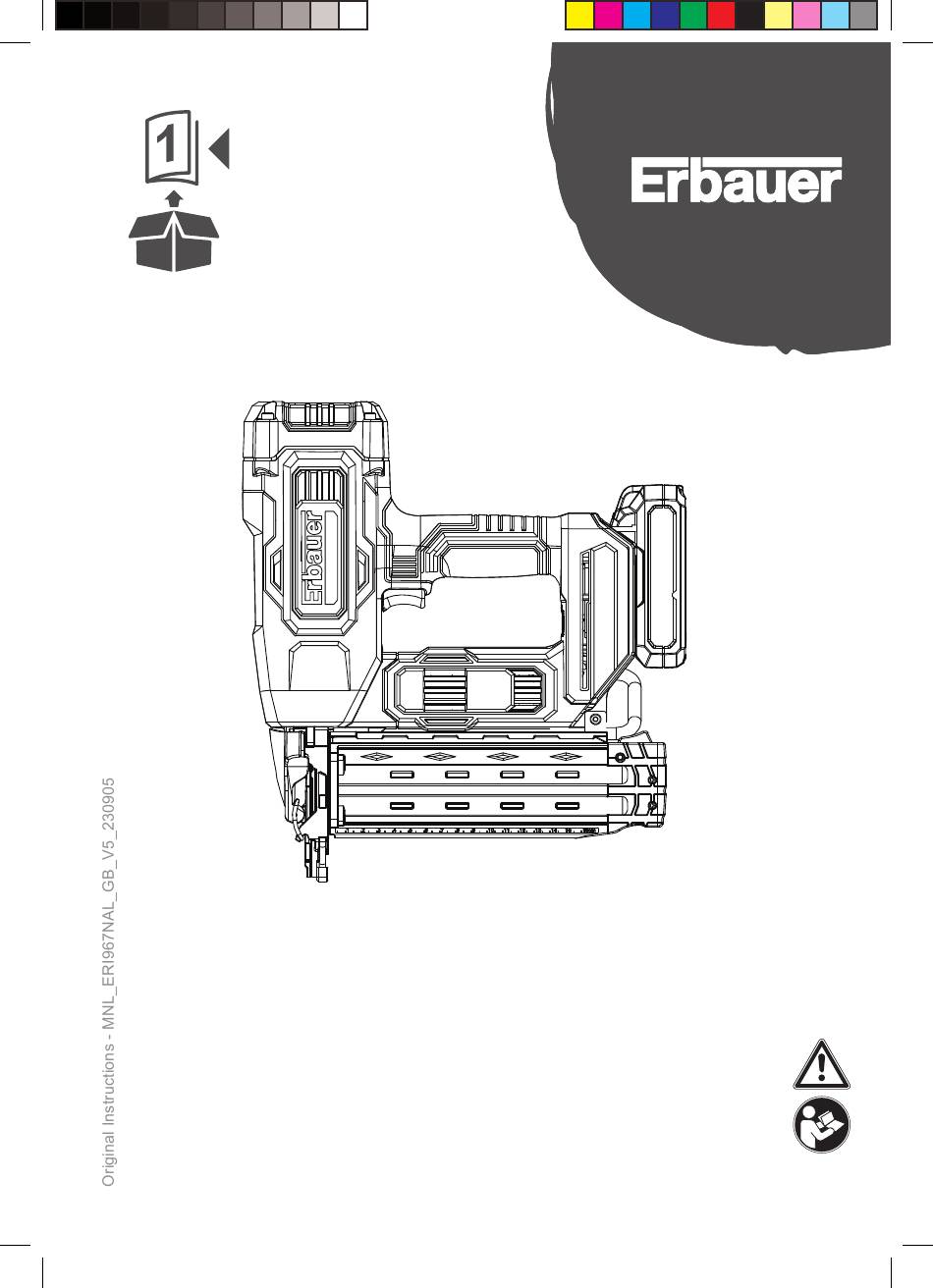

Page 1 ERI967NAL EAN: 5063022074317 ORIGINAL INSTRUCTIONS V10823 BX220IM MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 1 9/05/23 14:38 PM...
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 2 9/05/23 14:38 PM...
Page 3: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read safety warnings, provided with this power tool. Failure to follow all instructions listed below may result in electric shock, Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.
Page 4 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Page 5 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times.
Page 6 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
Page 7 d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use battery pack or tool that is damaged or of injury.
Page 8 d) Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the nailer may be accidentally activated if it is plugged in. e) Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
Page 9 n) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. o) Keep the area clear of all bystanders, children, and pets while operating the product. p) Remove the battery pack before carrying out maintenance or cleaning work.
Page 10 h) When disposing of battery pack, keep the battery pack of different electrochemical systems separate from each other. HEALTH SURVEILLANCE All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
Page 11 EMERGENCY Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
Page 12 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 12 9/05/23 14:38 PM...
Page 13: Product Description
Product description MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 13 9/05/23 15:38 PM...
Page 14 10 9 A=15/20/25/30/32/35/38/40/45/ 50/55mm B=1.25mm C=2mm 12 11 76-100% 51-75% 26-50% 5-25% <5% 18c 18b MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 14 9/05/23 14:38 PM...
Page 15 MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 15 9/05/23 14:38 PM...
Page 16 MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 16 9/05/23 14:38 PM...
Page 17 MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 17 9/05/23 14:38 PM...
Page 18 Product description Part index The index below refers to Fig. 1 on page 13. 1. Cylinder 12. Magazine 18. Battery pack (not 2. On/off trigger 13. Safety yoke supplied) 3. Handle grip a) Tip protector a) Battery capacity 4. User interface b) Shot duct indicators 5.
Page 19 Wear a dust mask. Wear protective gloves. Wear protective, slip-resistant footwear. Remove battery pack before assembly, cleaning, adjustments, maintenance, storage and transportation. Do not expose the product to rain or wet conditions (moisture). To prevent serious injury, keep your hands away from shot duct (13b)! Do not stare into the light beam for longer periods.
Page 20 The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. Technical data General Max. Rated voltage : 18V Impact rate : 120 min Magazine volume : Up to 100 nails Degree of protection IPX0 Weight...
Page 21: Assembly
Rating label explanation ERI967NAL = Model Number ER = ERBAUER (brand) I = 18 V d. c. Li-Ion...
Page 22 You will need (items not supplied) (items supplied) Suitable personal protective equipment Nail strip (50 mm x 100 nails) Suitable nail strip Suitable pliers NOTE: The accessories required depend on the intended application. Ask your dealer for advice. Assembly WARNING! Before using the product, familiarise yourself with the operating features read the entire instruction manual paying particular attention to the safety rules and operating procedures.
Page 23: Use
(Fig. F). Refer to the battery pack’s instruction manual for details. Intended use This cordless 55mm Nailer ERI967NAL is designated with a rated voltage of 18 V . It is designed only to be used with the battery pack which is listed in the The product is intended for nailing fabrics, leather, cardboard, foils, insulation material and similar materials to a soft surface, such as wood or wood-like materials.
Page 24 Do not use the product for any other purpose. operation and to observe all the instructions therein. Before you start Protection Controls User interface Use the user interface (4) to set operation program, check product status (Fig. G). Symbol Function On: Press and hold the power switch button for more than Power switch button...
Page 25 Symbol Function Mode button Firing mode button (A): Press the mode button (A) to shift the full sequential / contact firing mode. button (B) for more than 2 senconds to switch bettween full inflating/firing mode. Firing mode indicator The inflation mode indicator will light up during exchanging internal components.
Page 26 Operation 1. Check the product, battery pack (not supplied) and charger (not supplied) as well as accessories for damage before each use. Do not use the product if it is damaged 3. Always hold the product on the handle grip (3). Keep the handle dry to ensure safe operation.
Page 27 Important safety features the on/off trigger (2) later than 5 seconds after the safety yoke (13) is 2. The power switch cannot be turned on when the safety yoke (13) or/and the on/off trigger (2) are pressed down. 3. If the power switch is turned on for 30 minutes without using the nailer, the power switch will automatically turn off;...
Page 28 3. Ensure that no people or animals are in the work area. hand away from the shot duct (13b). 5. Press the on/off trigger (2) and hold it in position (Fig. Q, step 1). 6. Press the safety yoke (13) onto the material/workpiece that you want to nail (Fig.
Page 29: Care & Maintenance
Care & maintenance WARNING! Always remove the battery pack (18) and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. 2. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
Page 30 Maintenance Before and after each use, check the product and accessories (or tool attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. Removing jams WARNING! Wear safety gloves when working on the nails and close to them! Use proper tools to remove jammed nail! Never use your bare hands! The jammed nail should be removed before being put back into use,...
Page 31 NOTE: disabled later, press the power switch button to restart the product. of scrap soft wood. 15. If any malfunctions occur, stop using the product immediately and return to the dealer. Repair This product does not contain any parts that can be repaired by the consumer. Contact repaired.
Page 32 Troubleshooting Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed cannot solve the problem yourself! Problem Possible cause Solution...
Page 33 Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is working properly.
Page 34: Guarantee
Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product 18V Cordless 55mm Nailer) has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
Page 35: Declaration Of Conformity
A presente declaração de conformidade é emitida sob a exclusiva responsabilidade do fabricante. Objectofthedeclaration/Objet de la declaration/Przedmiotdeklaracji/Obiectuldeclarației/Objeto de la declaración/Objeto da declaração Product/Produit/Produkt/Produsul/Producto/ Model/Modèle/Model/Modelul/Modelo/Model Produto 18V Cordless 55 mm Nailer / Cloueur ERI967NAL 5063022074317 sans Gwoździarkabezprzewodowa 55 mm/Pistol pentrucuie de 55 mm fără fir / Clavadorainalámbrica de /55 mm/...
Page 36 Odwołania do odnośnych norm zharmonizowanych, które zastosowano, wraz z datą normy, lub do innych specyfikacji technicznych, wraz z datą specyfikacji, w odniesieniu do których deklarowana jest zgodność: Trimiteri la standardele armonizate relevante folosite, inclusiv data standardului, sau trimiteri la celelalte specificații tehnice, inclusiv data specificațiilor, în legătură...
Page 37 (UK) DECLARATION OF CONFORMITY Product 18V Cordless 55mm Nailer ERI967NAL Serial number range from000001to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 1 Paddington Square London W2 1GG United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
Page 38 UK manufacturer: 3 Sheldon Square London W2 6PX United Kingdom EU manufacturer: Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands To view instruction manuals online, Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk MNL_Erbauer_18V Cordless 55mm Nailer_GB_V05_230905.indd 38 9/05/23 14:38 PM...
