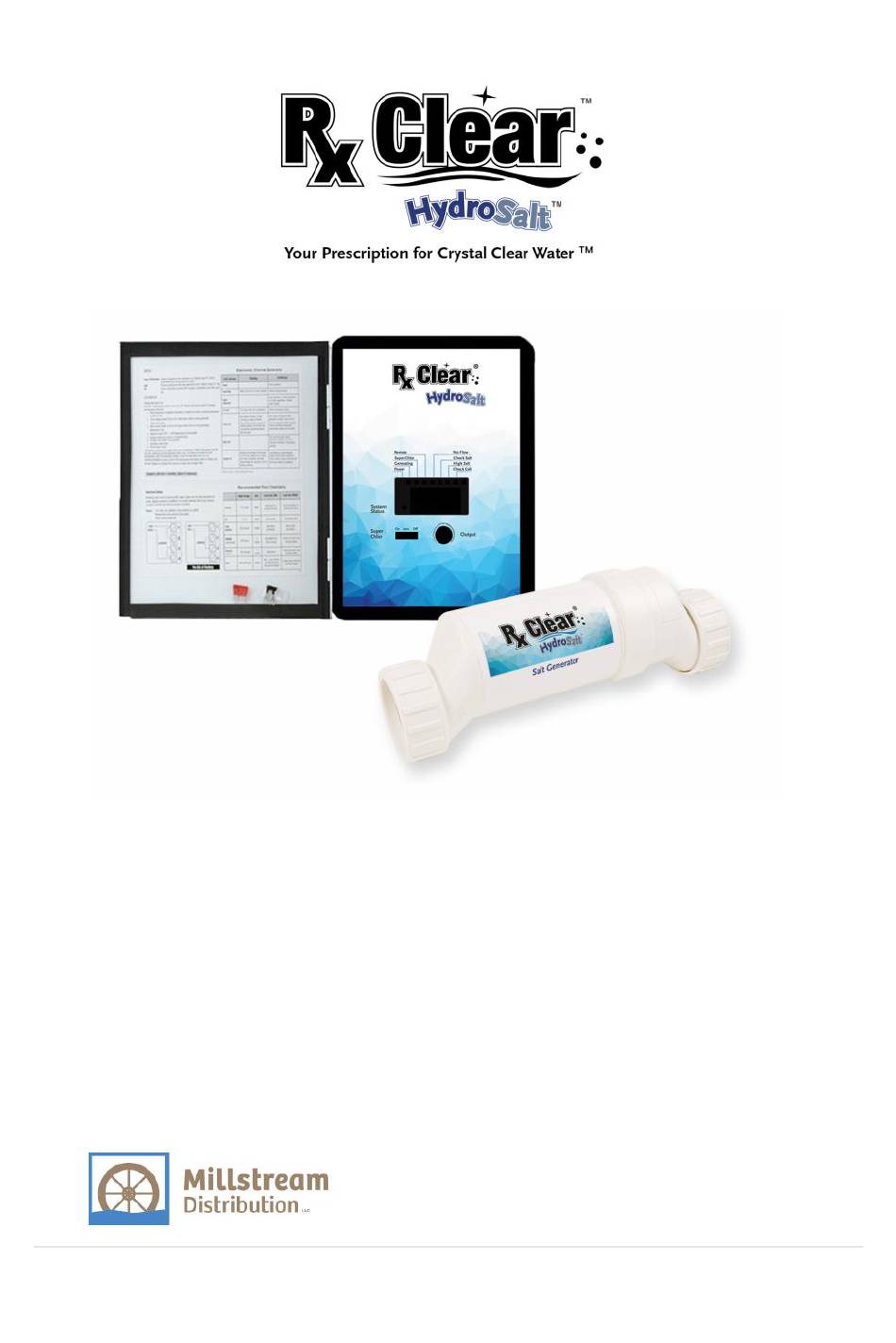

- Page 1 Electronic Chlorine Generator Installation & Operation Manual Millstream Distribution LLC 1-800-253-4775 P a g e...
-
Page 2: Important Warning And Safety Instructions
www.millstreamdstr.com IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be exercised, including the following: WARNING Risk of Electric Shock. All electrical wiring MUST be in conformance with all applicable local codes, regulations, and the National Electric Code ®... - Page 3 • Ensure that the chlorine generator operates only when the circulation pump is operating. When installed with a pool equipment timer, the Control Module must be to the load side of the timer clock. • If additional chlorine is required (due to hot weather), Sodium Hypochlorite to maintain an appropriate chlorine residual in the water.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Important warning and safety instructions....2 Introduction..............5 Switches of Control...........5 Water chemistry..........7 Operation............12 Installation............17 Troubleshooting.............21 Warranty..............25 P a g e... -
Page 5: Introduction
INTRODUCTION HydroSalt™ Salt water chlorination is a process that uses dissolved salt for the chlorination of swimming pools. The HydroSalt™ chlorine generator uses electrolysis in the presence of dissolved salt to produce chlorine gas or dissolved forms, hypochlorous acid and sodium hypochlorite, which are already commonly used as sanitizing in pools. - Page 6 AUTO: Generally, if the HydroSalt™ is in “Auto”, it will automatically work according to the chlorine output settings. SUPER CHLOR: The “Super Chlor” function is the process of temporarily increasing the free chlorine levels in the pool for the purpose of increased sanitation power. It's often necessary when the pool water is cloudy, free chlorine levels to fall below optimum levels.
-
Page 7: Water Chemistry
WATER CHEMISTRY For any pools it is mandatory to mountain proper water chemistry of the pool water, including pH, calcium levels, and alkaline content, especially to maintain proper levels of salt and stabilizer. It helps to prevent corrosion or scaling and to bring better experience for pool users. - Page 8 Use the table below to help determine the amount of salt and pool size. The ideal salt level is between 3200-3400 ppm. How to calculate your pool size in Gallons: Rectangular Pools: Length(feet) x width(feet) x average depth(feet) x 7.5 Circular Pools: Diameter x diameter x average depth x 5.9 Oval Pools:...
- Page 9 salt (also called water conditioner) Granules are an economical way to buy large amounts of salt. However, only NaCl salt with a purity of at least 99% can be used. The pill is a compressed form of evaporated salt and may take longer to dissolve. Avoid using salt with an anti-caking agent, which may cause discoloration.
- Page 10 10 | P a g e...
- Page 11 To ensure HydroSalt™ working well, swimming pool stabilizer to protect and extend the life of chlorine generator. Use the chart to see how to reach ideal 80 ppm. 11 | P a g e...
-
Page 12: Operation
OPERATION By familiarizing yourself with the operation of the HydroSalt™ generator, you can achieve maximum performance for your pool. When chemical levels are in the recommended range, there are FOUR factors that you can control. Filter time each day, amount of salt in the pool, the output of chlorine you set, and stabilizer level in the water will directly impact the amount of chlorine the HydroSalt™... - Page 13 GENERATION: Model in normal operation, the LED will be steady. If it is flashing, check the pool water chemicals. SUPER CHLOR: The generator runs at 100% capacity which can produce enough chlorine to clear up moderate cloudiness, but the generator is forced to overwork. It will be automatically switched to the original output after 24- hour SUPER CHLOR operation.
- Page 14 3. Cell Amperage (typically 2.50 to 7.80 amps when chlorine is being generated, otherwise 0 amps) 4. Desired Output % (“0P”—“100P”depending on knob position) 5. Instant salinity (-xxxx PPM or-x.xx PPT) 6. Product name sent to the display 7. Software revision level 8.
- Page 15 Spring Start-up When reopening the pool after long term, check all water chemistry before power on the HydroSalt™. Maintenance When checking other water chemistry levels, always monitor the salinity level of the swimming pool. After the system runs for a period of time, it will eventually need to clean the cells due to the scaling of natural minerals.
- Page 16 1) Turn off all power sources of all swimming pool equipment and close the water supply line valve (if applicable). 2) Unplug the cell cable connecting to the control box. 3) Loosen the threaded ring around the joint at the junction of the pool and the pipes.
-
Page 17: Installation
INSTALLATION Before installation, make sure all the water chemistry is in normal range. Using 2-inch pipes and should be performed by qualified personnel in case there is a 1.5-inch pipe, a reducer can be used to fit the system; be sure to pay attention to any changes. Check each measurement carefully before cutting. - Page 18 Plumbing These instructions apply to 2-inch pipe (typical). Make sure to choose with existing pool pipe size (1.5 inches or 2 inches), and discard other unnecessary joints. For articulated connections, you will also use the included 2" to 1.5" reducer bushing to accommodate the flow switch. For 1½" installations, be sure to pay attention to any new or other measurements before cutting the tube.
- Page 19 Overview All service should only be attempted by a person with appropriate elect rical skills needs to be licensed electrician only,with all equipment disconnected from power. The factory setting is 220-240V,if you need 100-120V,please move the internal jumper as below. 19 | P a g e...
- Page 20 20 | P a g e...
-
Page 21: Troubleshooting
TROUBLESHOOTING Situation Possible Cause Suggestion Use test pencil to check if there is electricity Check the power Change the socket connection Check the wire connection Start the HydroSalt ™ Check the overload without reaction, protection device no display Check the fuse If fuse blow out, replace it Check the connection of If the PCB board just be... - Page 22 Start the machine, it is normal that the light blink Normal because it need time to "NO FLOW" light is detect the water flow blinking Variable speed pump, Change the flow switch water flow too slow Press the "System Status" "Inspect Cell"...
- Page 23 Match the right cell type Check cell type with the program "Check Salt" light Actual Salinity is between Add salt, ideal salt level is flashing 2300-2500PPM 3500-3600ppm Cell is blocked Clean the cell Match the right cell type Check cell type with the program Actual Salinity is between Add water, ideal salt level...
- Page 24 Check the temperature, The water temp too high water temp should or too cold above 55°F, less than 122°F PH not normal, the water in alkalinity will influence Keep PH 7.2-7.7 the chlorine Low or no Chlorine in pool Bad water quality has large quantity of Change good quality water microorganism or germ...
-
Page 25: Warranty
Two (2) Year Limited Warranty RxClear™ (HydroSalt™) is warranted to be free from defects in materials and workmanship, under normal use and non-commercial application, for a period of Two (2) years from date of purchase, per the schedule below. To obtain service, contact the authorized dealer from which the unit was purchased. - Page 26 water or any damages that may occur. The purchaser is responsible for all shipping and handling fees for the replacement and/or replacement parts covered by this warranty. This Warranty provides the exclusive remedy for any damages, including direct, consequential, special or incidental loss or damage. This warranty gives you specific legal rights.
