Summary of Contents for Thomas Dudley Resan RWC-4C

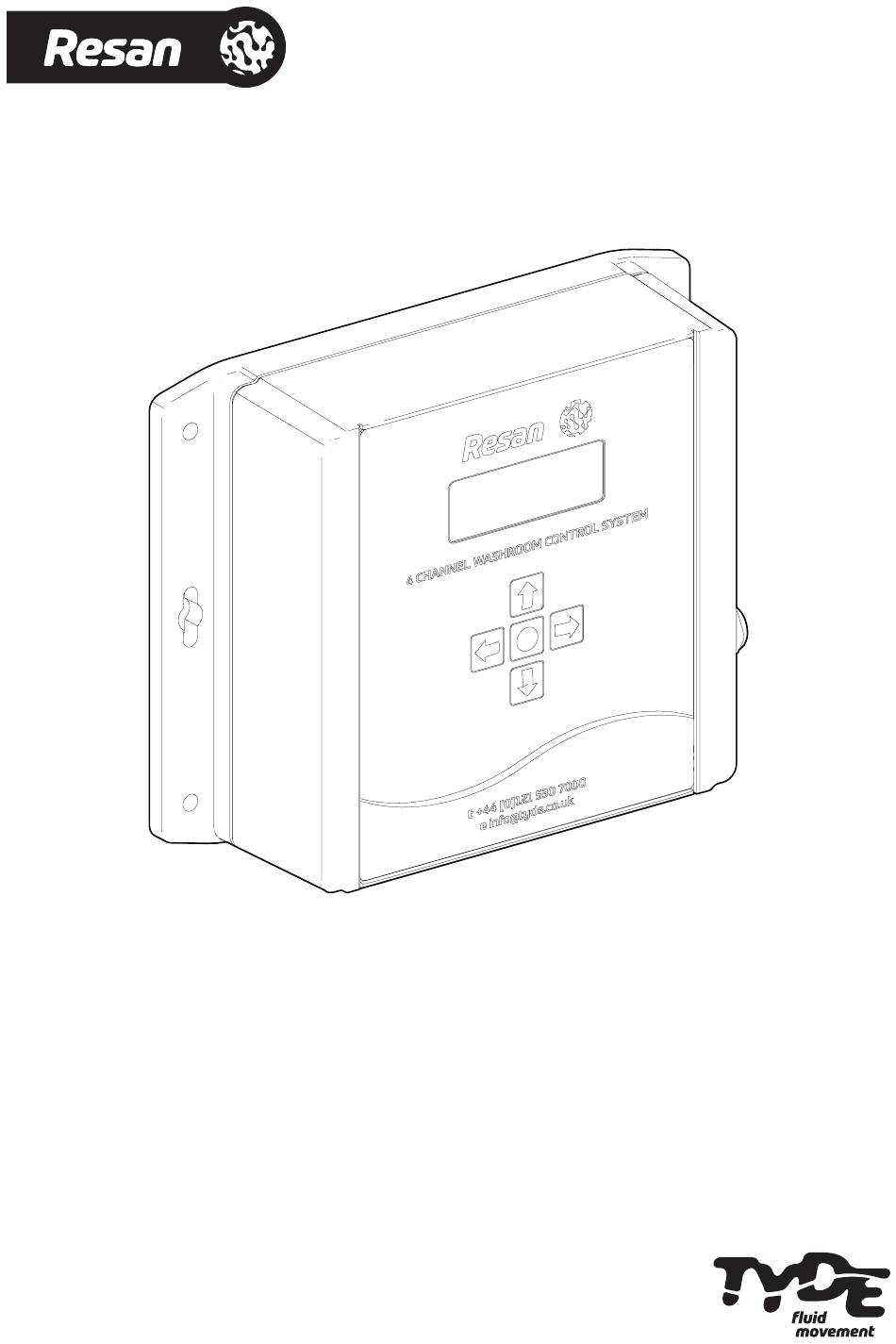

- Page 1 WASHROOM CONTROL SYSTEM 4 CHANNEL INSTALLATION GUIDE...
- Page 2 IMPORTANT NOTES TECHNICAL DATA Electrical installation of this product Control Unit must be carried out and checked by a Model No. RWC - 4C qualified electrician in accordance with IEE 220 - 240V AC 50Hz regulations. Mains Supply Single Phase During installation do not expose the Power Output 12V DC 30W Max.
- Page 3 TYPICAL INSTALLATION DIRECT FLUSH CISTERN FLUSH OUTPUT OPTIONS INPUT OPTIONS WC Cistern Flush Kit IR Sensors Electroflo Interface 500mm Input Cable 4m Output Cable 4m Extension Cable Cistern sold separately Touch Buttons 500mm Input Cable 4m Extension Cable WC Direct Flush Kit Solenoid Valve OPTIONAL EXTRAS DC Pipe Interupter...
-
Page 4: Control Module
CONTROL MODULE 4 CHANNEL REFERENCE INFORMATION 200mm FIXINGS NOT SUPPLIED Select suitable fixings for the required application FIXING SUBSTRATE Ensure the unit is level and mounted to a stable surface OUTPUT CHANNELS INPUT CHANNELS Menu Navigation Keys Up / down - Menu navigate AVOID EASY Increase / decrease - Variables... - Page 5 INPUT IR SENSOR & TOUCH BUTTONS INSTALLATION OPTIONS 5 - 40mm SPACER 55 - 90mm Inc. Default Channels >90mm WC (Cistern) Shower EXTENSION* Tap Cold Tap Hot *sold separately. SENSOR RANGE ADJUST (IR ONLY) Adjustment Range: 20 - 250mm Factory Setting: 115 - 120mm...
- Page 6 4 9 m m OUTPUT PNEUMATIC WC CISTERN REFERENCE INFORMATION E N T D J U S T M L F I N E A L A T E R A DEBURR 260 MAX 4 9 m m...
- Page 7 Set any channel to WC (Ch1 default). Press on any WC channel to enter the channel configuration menu. +Channel Options > +Time Slots +Purge Settings +Lockout Settings Select ‘Channel Options’. Note: See ‘Channel Settings’ section for information on Time Slots, Purge Inc.
- Page 8 OUTPUT MAINS (MIN. 100 LPM) DIRECT FLUSH VALVE REFERENCE INFORMATION Direction of flow MAINS (MIN. 100 LPM) FULL BORE ISOLATION RECOMMENDED 1” BSP 4m CABLE INSTALL VALVE AT MAXIMUM POSSIBLE HEIGHT 610 MAX DEBURR REVERSIBLE (NO POLARITY)
- Page 9 Note: See ‘Channel Settings’ section Default Channels for information on Time Slots, Purge WC (Cistern) Settings, and Lockout Setings. Shower CHANNEL OPTIONS: WC DIRECT Tap Cold FLUSH Tap Hot Flush Type Direct Dual Flush Open Time 7.1 sec Set the flush type to ‘Direct’ and configure the cistern flush options as desired.
- Page 10 OUTPUT WASH BASIN TAP / SHOWER VALVE REFERENCE INFORMATION MAINS ISOLATION RECOMMENDED 2x ½” BSP REVERSIBLE (NO POLARITY) Default Channels WC (Cistern) Shower Tap Cold 4m CABLE Tap Hot INSTALL VALVE AS CLOSE TO TAP CONFIGURE TAP / SHOWER VALVE AS POSSIBLE Home >...
-
Page 11: Auxiliary Input
AUXILIARY INPUT ACTIVATE REMOTE LOCKOUT Home > Main menu > System settings LOCK OUT KEY SWITCH +Time and Date Remote Lockout Yes > Exclusivity Factory Reset If the remote lockout key switch is installed, set Remote Lockout setting to ‘Yes’ to activate functionality of this device. -
Page 12: Home Screen
HOME SCREEN SYSTEM SETTINGS Home > Main menu > System settings RESAN +Time and Date > 12:00 Remote Lockout Mon 01 Jan Exclusivity Factory Reset SYSTEM MANAGEMENT TIME AND DATE Set the time and date settings. HOME SCREEN OPTIONS Year 2023 >... -
Page 13: Channel Settings
CHANNEL SETTINGS PURGE SETTINGS Independantly configure the purge mode and timings for each channel. Home > Main menu > Channel settings Default channels Purge Mode > Idle Time 1 days +Ch1 On > Duration 30 secs +Ch2 On Shower +Auto Purge Times +Ch3 On Tap Cold +Ch4 On... -
Page 14: Manual Purge
MANUAL PURGE LOCKOUT SETTINGS Independantly configure the lockout settings for each channel. Home > Main menu > Manual Purge manual purge options... Auto Lockout > Activations Purge Selection Time Window 15 min Lock Period 30 min All Channels Auto Lockout OFF (Default) No auto lockout active. -
Page 15: Troubleshooting
TROUBLESHOOTING... -
Page 16: Disclaimer And Copyright Notice
In any event, and without prejudice to any warranties in Thomas Dudley Ltd.'s terms and conditions of sale, Thomas Dudley Ltd.'s liability for all damages and losses (including negligence) shall not in any circumstances exceed the amount paid by the customer for the unit.
