Page 1 ROCKET USER GUIDE...
Page 2 Raith User Guide...
Page 3 Hills and high speed riding can be extremely dangerous as Do not ride your Raith in wet or icy conditions. Whilst the a crash could result in serious injuries or death. Be extra board has been designed to handle a light amount of water,...
Page 4 Raith User Guide...
Page 5: Congratulations On Your Purchase
CONGRATULATIONS ON YOUR PURCHASE! From all of us at Raith, we wanted to thank you for choosing us. We are excited to welcome you to the Raith team! Raith Skateboards are an exciting product and will provide you with endless fun. Please read ALL the information within before you begin using your equipment.
Page 6 YOUR RAITH ROCKET Raith User Guide...

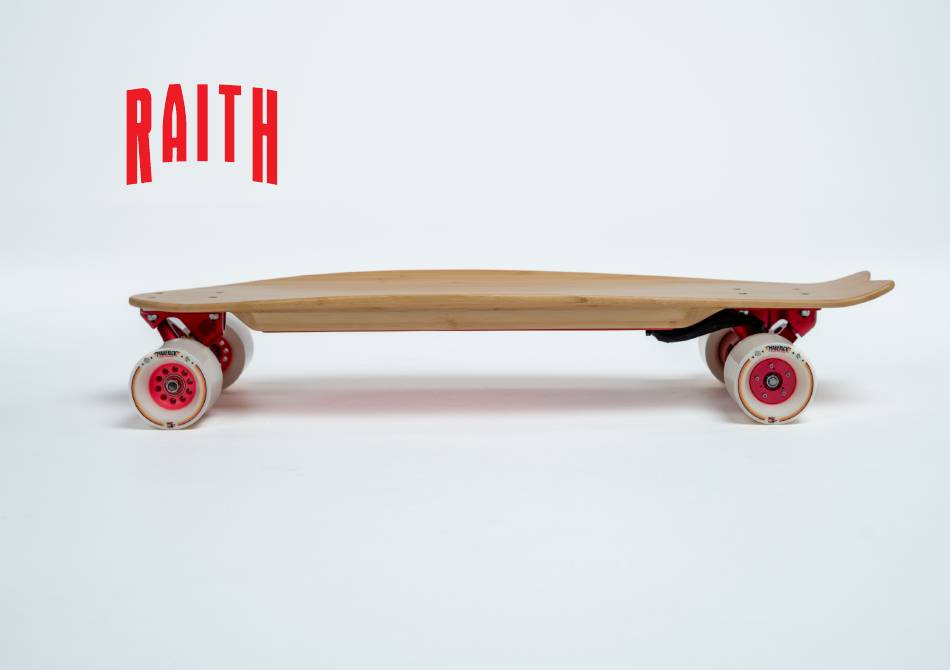

Page 7 RAITH ROCKET The Raith Rocket is the ultimate urban commuter. Measuring in at 30.9” long and 9.5” wide it gives you a great stable platform for manoeuvring around the busiest of cities. With a kick-tail, you can accelerate hard in a jiffy and the tail will keep you locked into the board.
Page 8: What's In The Box
WHAT’S IN THE BOX Raith User Guide...
Page 9 WHAT’S IN THE BOX Raith Rocket Knuckle-Duster Remote Micro-USB Cable Skate Tool Charger Raith User Guide...
Page 10 RAITH CHARGER, BMS (BATTERY MANAGEMENT SYSTEM), ALARM AND BATTERY Raith User Guide...
Page 11 CHARGING THE BOARD Your battery pack has been designed only to operate with the included Raith Rocket charger, it operates at a specific voltage for your Rocket board. BEFORE USING the board, allow the battery to be FULLY CHARGED. Chargers from other RAITH models or other manufacturers must not be used to charge this board.
Page 12: Hot Weather
Sensors measure different aspects of the battery pack and Battery/Cell high voltage communicate this to your Raith Rocket BMS to ensure the Battery/Cell low voltage battery is always running at optimal levels. Cell difference voltage...
Page 13 If you aren’t capable of these intermittently on the controller when the battery is charging) mechanical ways of stopping, do not ride faster than a to ensure the longevity of your battery. speed you could run off to a stop. Raith User Guide...
Page 14 ROLL TO START If you plan to use large amounts of regenerative brakes from Your Rocket electric skateboard is fitted with a smart switch the beginning of your ride (for instance in racing or riding which enables the roll to start feature. To turn on your...
Page 15 Only use red or yellow torque modes for short bursts of time, to get up hills or for short bursts of acceleration. Entering temperature protection mode will not damage your board permanently. Rider experience will teach how much sustained power will cause motor temperature protection. Raith User Guide...
Page 16 AIRLINE TRAVEL TIPS Raith User Guide...
Page 17: Air Travel
AIR TRAVEL The Raith Rocket battery is 144Wh, this board may be taken as carry on luggage on passenger aircraft. It is recommended to keep the board stored in a protective case. Please note that some airlines may require prior approval in order to carry on batteries of 99-160Wh on size, always check with your airline prior to flying.
Page 18: Getting To Know Your Remote
GETTING TO KNOW YOUR REMOTE Raith User Guide...
Page 19 Throttle Wheel Power Button Mode Button Remote Signal Indicator Board Battery Indicator Remote Battery Indicator Micro-USB Charging Port Raith User Guide...
Page 20: Charging The Remote
Your Raith remote features a unique design for simple and easy operation. To get started with your remote, simply place it over your fingers similar to how a knuckle duster...
Page 21: Connection Status
Power on the skateboard and check the remote signal light. light is now ON. Test the throttle and brakes for functionality, if functions are working correctly, pairing is successful. If the signal light is still blinking, it means Raith User Guide...
Page 22: Cruise Mode
( O <> O O ) 15S: #2 LED on ( O @ O O ) Your remote is set to the voltage of your Raith Rocket, which 16S: #2&3 LED blinking ( O <> <> O ) is 8S, so it can display the correct remaining battery 17S: #2&3 LED on...
Page 23 When the remote is switched off and the remote is charging, capacity 20% - 10% the remote power indication light is red. When the remote is Skateboard battery indicates 0 lights on - refer above switched off and the remote is fully charged the red light will Raith User Guide...
Page 24 Wait 10 seconds after high discharge moments (remote must be at zero throttle) for the remote to display correctly again. Raith User Guide...
Page 25 Raith ser Gui...
Page 26 GETTING TO KNOW YOUR RAITH DRIVE™...
Page 28 (use only Raith designated fitment wheels with the correct marking for fitting as drive wheels): Your Raith Rocket includes a set of high quality RAITH steel Use your skate tool (included) to undo the wheel nut bearings that are long lasting and have a tight fit on the axle.
Page 29: Servicing And Maintenance
Then pull out the inner drive collar assembly from the wheel, it will require some pulling The Raith Rocket is designed to operate with minimal force, wiggle from side to side to loosen it. Keep note...
Page 30: Torque Specs
Re-assemble the drive system, screws, wheel and axle nut. Use the Raith drive service tool or non-ferrous tool to press the motor back onto the drive collar bearing ensuring the screw holes line up, rotate to align them.
Page 31 Raith User Guide...
Page 32 MAINTAINING YOUR ROCKET Raith User Guide...
Page 33 A balance of the drive wheels and motors may be required when changing wheels, refer to the service section for more details on how to carry this out. • Always store your board at room temperature. Raith User Guide...
Page 34: Riding Tips
RIDING TIPS Raith User Guide...
Page 35 (regular) or your right foot facing the front (goofy) Take it slow As you learn to ride your Raith Rocket, start off in the slowest torque setting, this will allow you to understand how the board works, and prepare yourself for the higher speed modes.
Page 36: Warranty Information
WARRANTY INFORMATION Raith User Guide...
Page 37 12 MONTH LIMITED WARRANTY Fastboard Pty Ltd, warrant the Rocket to apply to the customer. For example, The warranty does not apply to damage be free from defects in materials or some states in the USA, as well as some...
Page 38 The user assumes all liability and wear and tear. responsibility for risk associated with Wear and tear parts are subject to the use of the Raith Skateboards damage as a result of normal use, electric skateboards. You assume all failure...
Page 39 Raith User Guide...
