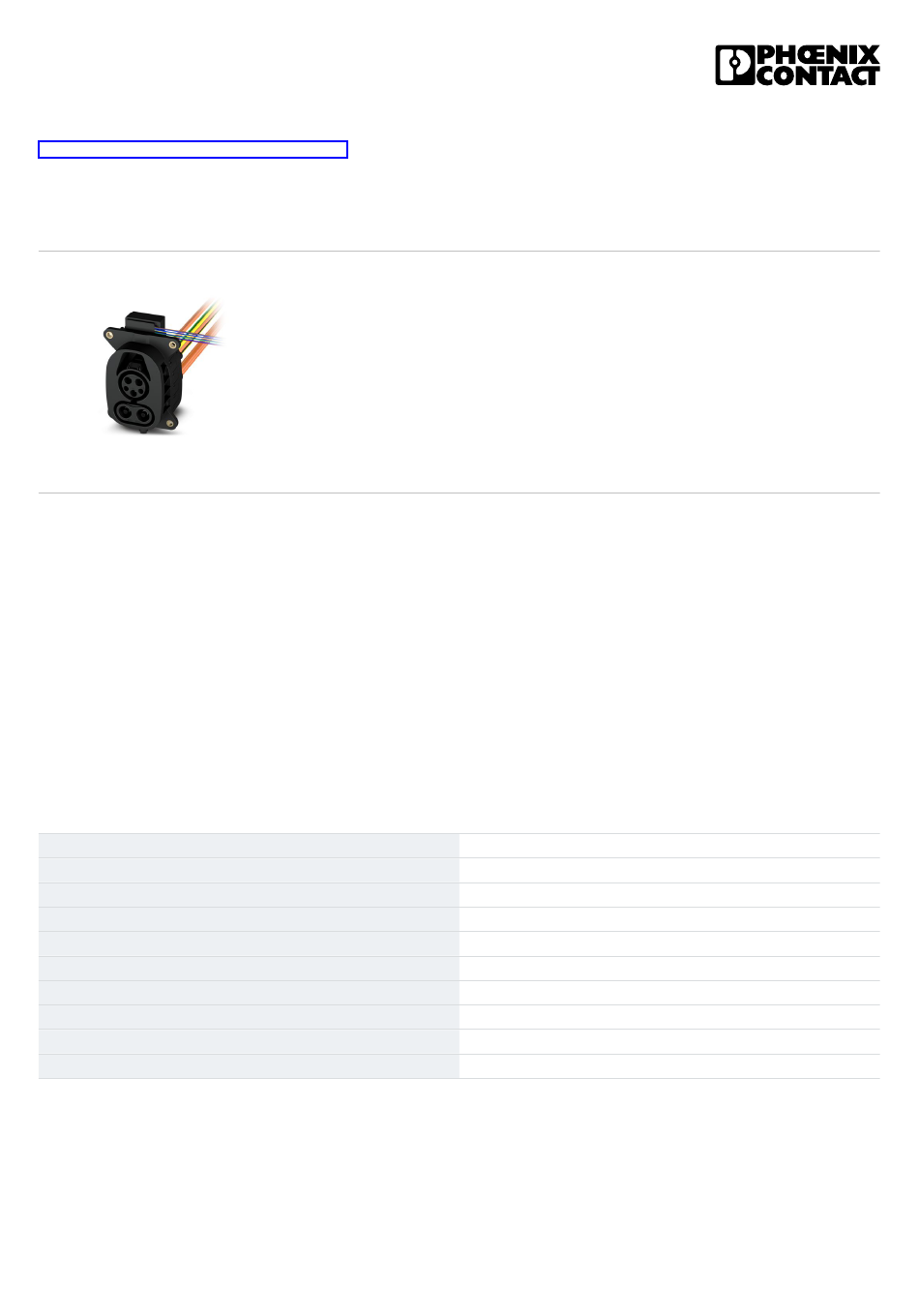

CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle
charging inlet
1162178
https://www.phoenixcontact.com/us/products/1162178
Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user
documentation. Our general terms of use for downloads are valid.
Product description

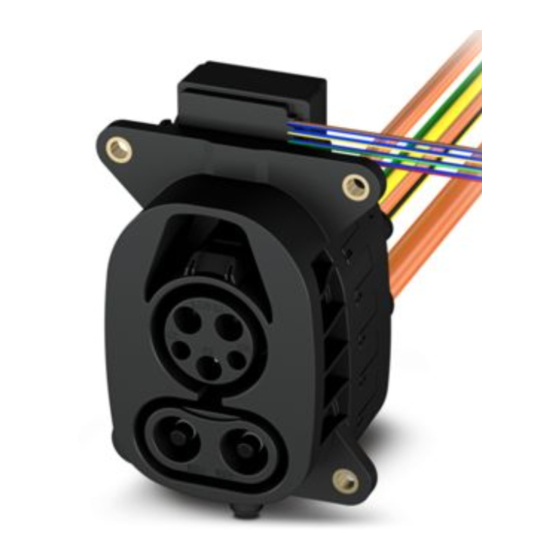

Vehicle charging inlet for charging with alternating current (AC) and direct current (DC), compatible with type 1 AC and CCS vehicle charging
connectors (EVSE), for installation in electric vehicles (EV).
Your advantages
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
Commercial data
Item number
Packing unit
Minimum order quantity
Sales key
Product key
GTIN
Weight per piece (including packing)
Weight per piece (excluding packing)
Customs tariff number
Country of origin
CHARX connect universal, Vehicle charging inlet, for charging with alternating current (AC) and
with direct current (DC), CCS type 1, IEC 62196-2, IEC 62196-3, 200 A / 1000 V (DC), 48 A /
250 V (AC), Single wires, length: 2 m, locking actuator: 12 V, 4-pos., Front and rear mounting,
M6, housing: black, A protective cap is supplied as standard for the DC and AC contacts.
1162178
1 pc
1 pc
EM01
XWCAIB
4063151172121
5,815 g
5,815 g
85444290
PL
Mar 11, 2024, 11:14 AM
Page 1 (16)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHARX T1HBI12-1AC48DC200-2,0M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix Contact CHARX T1HBI12-1AC48DC200-2,0M1

  • Page 1 Your advantages • Complete product range • Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets • Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 •...
  • Page 2: Technical Data

    CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Technical data Notes General A protective cap is supplied as standard for the DC and AC contacts. Product properties Product type Vehicle charging inlet Product family CHARX connect universal Application for charging with alternating current (AC) and with direct current...
  • Page 3: Material Specifications

    CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Standards/regulations DIN EN 60738-1 Attachment point Sensor for the AC contacts Measuring range_resistance 790.00 Ω ... 1420.00 Ω Resistance max. 1200 Ω ±5 K Ambient temperature -40 °C ... 130 °C (Operation) Temperature sensors (Pt 1000)
  • Page 4 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Single wire, cross section 70.00 mm² Single-core wires for AC Cable length Cable structure 2 x 6 mm² Single wire, material Silicone Single wire, color External cable diameter 12.60 mm ±0.2 mm Cable resistance ≤ 3.2 Ω/km...
  • Page 5: Mechanical Properties

    Degree of protection (Vehicle charging inlet) IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard- compliant products) IP67 (Inner area of vehicle charging inlet) Ambient temperature (operation) -40 °C ...
  • Page 6 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Drawings Schematic diagram BU/RD 0,5 mm ² BU/GN 0,5 mm ² BU/YE 0,5 mm ² BU/BN 0,5 mm ² Block diagram of the locking actuator Schematic diagram Shutdown Charging shutdown threshold Temperature sensor technology resistance range at AC contacts...
  • Page 7: Schematic Diagram

    CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Schematic diagram [II] [III] [IV] Operating instructions Connection diagram Installation positions Mar 11, 2024, 11:14 AM Page 7 (16)
  • Page 8 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Diagram 200 400 600 800 1000 1200 1400 1600 t [ms] 200 400 600 800 1000 1200 1400 1600 t [ms] Locking states of the locking actuator Mar 11, 2024, 11:14 AM...
  • Page 9: Dimensional Drawing

    CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Dimensional drawing Actuator <0,8 m = ±10 mm <0,8 m = ±10 mm >0,8 m = ±150 mm >0,8 m = ±150 mm Signal DC (+) DC (–) Reference points for measuring the line length...
  • Page 10 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Connection diagram ₁ ₂ ₃ X (mm) = 1 k = 11 k Detection for Vehicle Connector Mar 11, 2024, 11:14 AM Page 10 (16)
  • Page 11 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Dimensional drawing 122,8 97,9 27,4 50,8 80,8 Ø 11 Dimensional drawing Schematic diagram The Combined Charging System (CCS) principle - standard-compliant charging system for electric vehicles, which supports both conventional AC charging and fast DC charging. Both Vehicle Connectors fit into the CCS Vehicle Inlet.
  • Page 12 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Connection diagram L2/N Pin assignment of vehicle charging inlets Mar 11, 2024, 11:14 AM Page 12 (16)
  • Page 13 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Approvals To download certificates, visit the product detail page: https://www.phoenixcontact.com/us/products/1162178 cULus Recognized  Approval ID: E473195-20210730 Mar 11, 2024, 11:14 AM Page 13 (16)
  • Page 14 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Classifications ECLASS ECLASS-11.0 27144706 ECLASS-12.0 27144706 ECLASS-13.0 27144706 ETIM ETIM 9.0 EC002898 Mar 11, 2024, 11:14 AM Page 14 (16)
  • Page 15 CHARX T1HBI12-1AC48DC200-2,0M1 - Vehicle charging inlet 1162178 https://www.phoenixcontact.com/us/products/1162178 Environmental product compliance REACh SVHC Lead 7439-92-1 DOTE 15571-58-1 Dechlorane Plus China RoHS Environmentally Friendly Use Period = 10; For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”...
  • Page 16 CHARX connect universal, Locking, Accessories, for mounting on vehicle charging inlets, Type 1, IEC 61851-1, Single wires, length: 1 m, locking actuator: 12 V, 4-pos. Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road...
