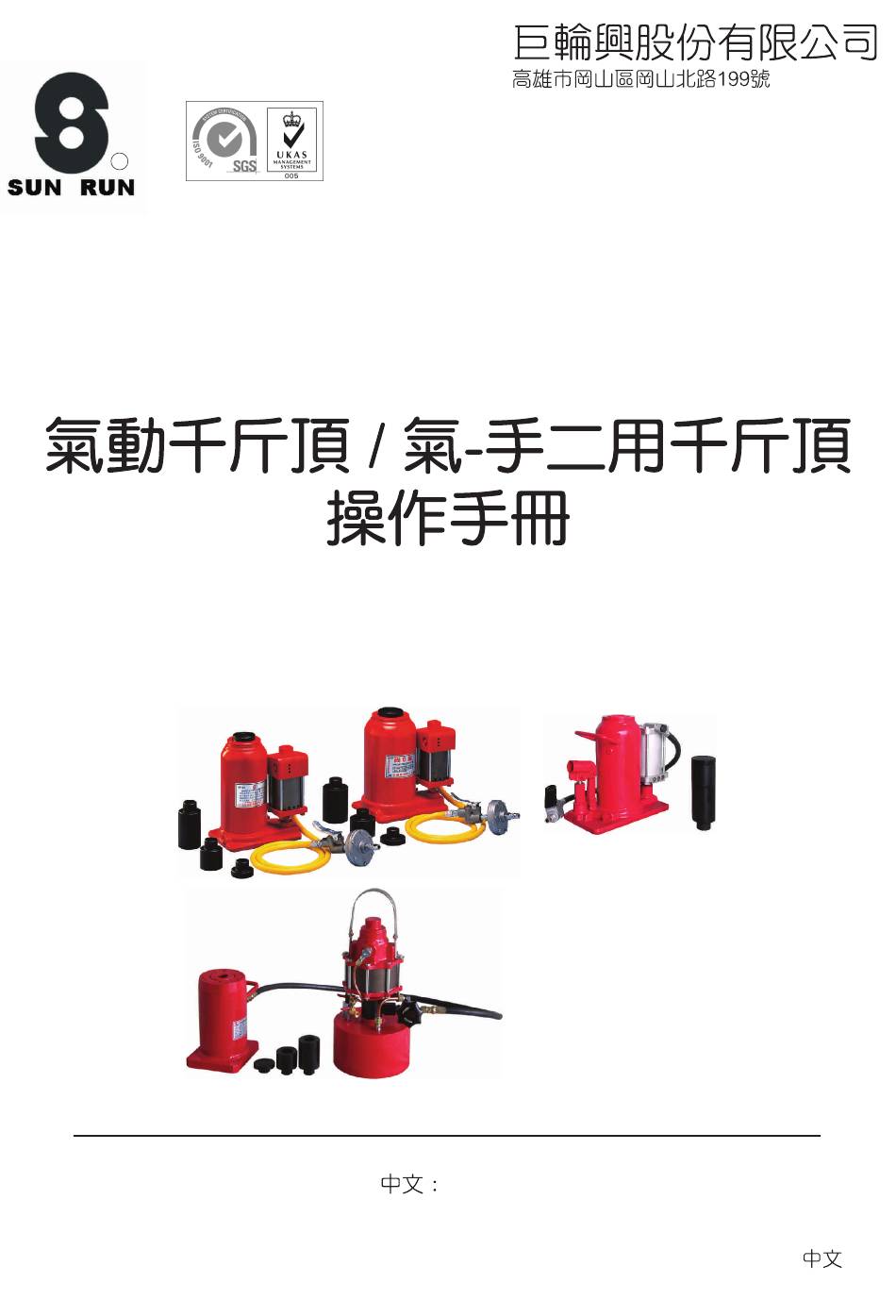

- Page 1 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 ST/ STH C1~C7 English Ver.24...
- Page 2 :STH-20A, STH-20B STH-30A,STH-30B A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B Page:C1...
- Page 3 :STH-20A, STH-20B STH-30A,STH-30B A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B « ¬ ¸ ¹ STH-20A STH-20B STH-30A STH-30B A-2012 (tons) A(mm) B(mm) (mm) 14.5 13.5 19.6 18.6 (kg) 8-12 (kgf/cm ) « ¬ ¸ ¹ ST-20H ST-20A ST-20B ST-20C ST-30A ST-30B...
- Page 4 :STA-50 Model Stroke Min. Ext. Plunger Base Auxiliary Air pressure Weight Capacity Number Height Height Diam. Dimensions Height range (ton) (mm) A (mm) B (mm) J (mm) L x W (mm) (mm) (kgf / cm ) (kg) 10,45,80 STA-50 150 x 170 8-12 37.0 3/8"HT...
- Page 5 :STH-20A, STH-20B STH-30A,STH-30B A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B 3.1 ST, STH, A-2012 3.1.1 3.1.2 3.1.3 SPA-63 SPA-70 Page:C4...
- Page 6 :STA-50 SPAT 3.2 STA-50 3.2.1 3/8"HT Release ¬ ª À £ » Ö Valve ª Å ® ð ± µ À Y coupler SPAT-130-700 3.2.2 3.2.3 BOBO Page:C5...
- Page 7 :STH-20A, STH-20B STH-30A,STH-30B A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B, STA-50 3.1(b) 4.5 STA-50 SPAT 4.5.1 1/2" (1cm) SUN RUN 4.5.2 1/2 inch (1cm) Page:C6...
- Page 8 :STH-20A, STH-20B STH-30A,STH-30B A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B 8kgf/cm 3.1.1(B) Page:C7...
- Page 9 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS HYDRAULIC BOTTLE JACK WITH AIR PUMP ST/ STH English E1~E7 English Ver.24...
-
Page 10: Safety Precautions
WARNING: USE ONLY RIGID PIECES TO damaged parts with genuine SUN RUN HOLD LOAD. Carefully select steel or wood parts. SUN RUN parts are designed to fit blocks that are capable of supporting the properly and withstand rated loads. load. Never use a hydraulic cylinder as a... -
Page 11: Introduction And Specifications
Instructions for: Models:STH-20A, STH-20B STH-30A,STH-30B Air operate Bottle Jacks A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B 2.INTRODUCTION & SPECIFICATIONS These are air operated hydraulic bottle jacks with the facility for manual operation should an air supply not be available. All have a release valve (as below) to adjustable saddle-to-piston height, allowing for maximum hydraulic stroke over a range of standing heights. - Page 12 Instructions for: Models:STA-50 Air operate Bottle Jacks 2.INTRODUCTION & SPECIFICATIONS Model Capacity Stroke Min. Ext. Plunger Base Auxiliary Air pressure Weight Number Height Height Diam. Dimensions Height range (ton) (mm) A (mm) B (mm) J (mm) L x W (mm) (mm) (kgf / cm ) (kg)
-
Page 13: Operation
Instructions for: Models:STH-20A, STH-20B STH-30A,STH-30B Air operate Bottle Jacks A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B 3. OPERATION 3.1 ST, STH, A-2012 series 3.1.1 Before first using jack carry out the following preparation: (A) Check oil level: Open release valve with handle (not more than two turns)and press down on saddle to ensure piston is fully down, then remove oil filler plug. - Page 14 Instructions for: Models:STA-50 Air operate Bottle Jacks 3. OPERATION (refer SPAT instruction manual 3.2 STA-50 series 3.2.1 Connecting the Pump (A) Thread hose into pump outlet. Use 1-1/2 wraps of Teflon tape (or suitable thread sealant) on hose fitting, leaving the first complete thread free of tape to ensure that tape does not shed into hydraulic system, causing damage.
- Page 15 Check reservoir hydraulic oil level every 40 hours of operation. Add oil when necessary to bring the level to 1/2" (1cm) below the fill opening. Use only SUN RUN hydraulic oil. The use of other oils or fluids may damage your system, and will void your SUN RUN warranty.
-
Page 16: Troubleshooting
Instructions for: Models:STH-20A, STH-20B STH-30A,STH-30B Air operate Bottle Jacks A-2012, ST-20A, ST-20B, ST-20C, ST-30A ST-30B 5. TROUBLESHOOTING Solve problems Situation Result Jack will not lift load. 1.Release valve not fully closed. 1.Close valve firmly. 2.Oil level low. 2.Top-up to correct level.
