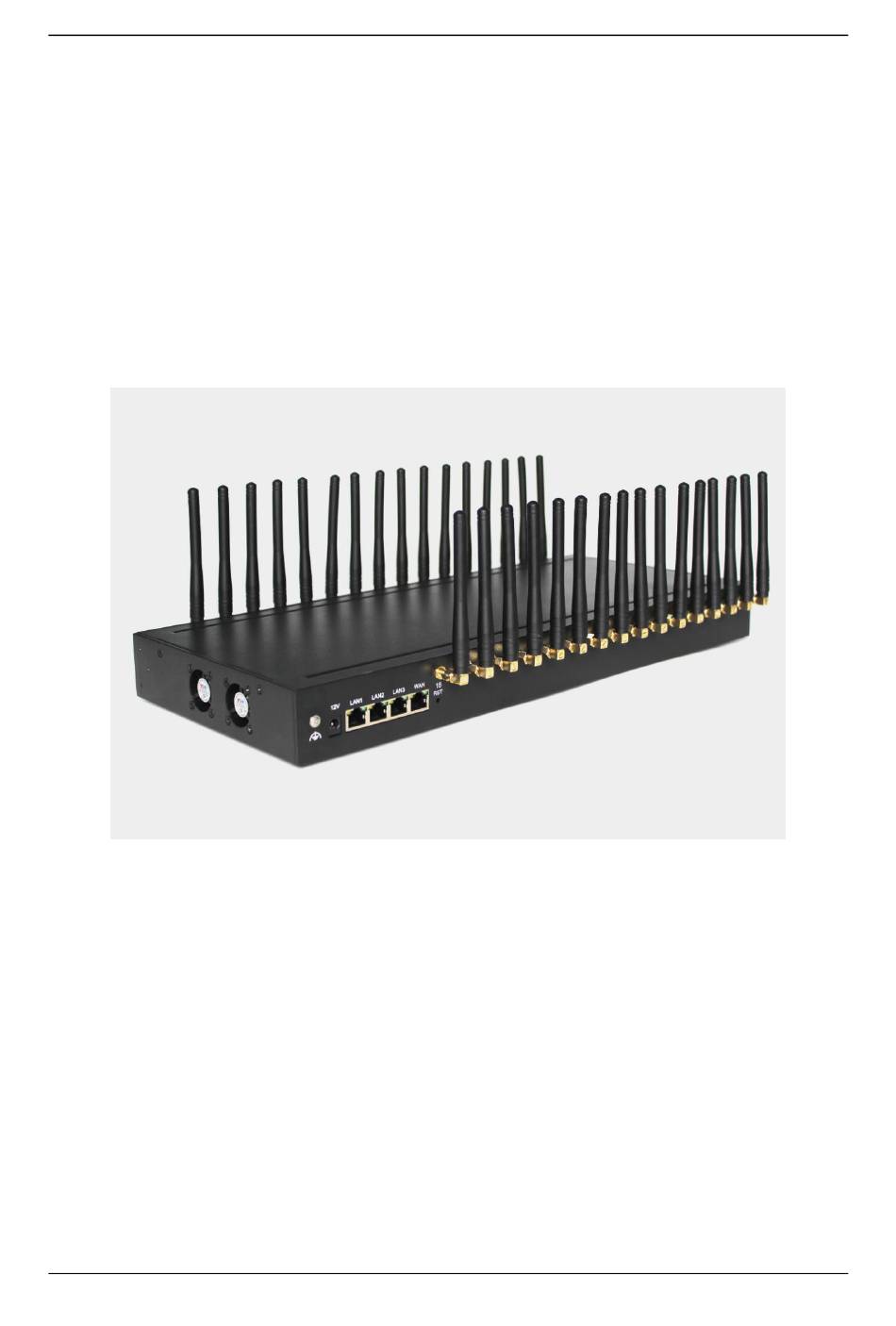

ACOM716 User Manual
EJOIN ACOM716 Router
User Manual
Shenzhen Ejoin Technology Co.,Ltd.
Address: 3rd Floor, Wanyuan Business Building, Liuxian NO.2 Road, 71 Block, Bao an
District. Shenzhen City, P.R China.
Tel: +86-755-85245166
Fax: +86-755-85245122
Email: manager@ejointech.com
Skype: szejointech
Website: www.ejointech.com
Shenzhen Ejoin Technology Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACOM716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ejoin ACOM716

  • Page 1 ACOM716 User Manual EJOIN ACOM716 Router User Manual Shenzhen Ejoin Technology Co.,Ltd. Address: 3rd Floor, Wanyuan Business Building, Liuxian NO.2 Road, 71 Block, Bao an District. Shenzhen City, P.R China. Tel: +86-755-85245166 Fax: +86-755-85245122 Email: manager@ejointech.com Skype: szejointech Website: www.ejointech.com...
  • Page 2 ACOM716 User Manual Revision History Date Version Description Autor 2020/11/20 V1.0 First draft Chelson Chou Shenzhen Ejoin Technology Co.,Ltd.
  • Page 3 Technology makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Ejoin Technology shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.

  • Page 4: Table Of Contents

    ACOM716 User Manual Contents Chapter Ⅰ Equipment Information ..............6 Product Brief ..................6 Product Application ................6 Product Appearance ................7 Special Features .................. 8 Chapter Ⅱ Equipment Installation ..............9 SIM Card Placement ................9 Antenna Installation ................9 Network Connection ................
  • Page 5 ACOM716 User Manual 3.4.2 SMS Receive ......................23 3.4.3 SMS Forward ......................24 3.4.4 SMS Control ......................28 3.4.5 SMPP Settings......................28 3.4.6 EIMS Settings ......................31 3.4.7 Prefix route ......................32 3.4.8 SMS Filter ........................ 33 Network Setting ................34 3.5.1 VPN settings ......................

  • Page 6: Chapter Ⅰ Equipment Information

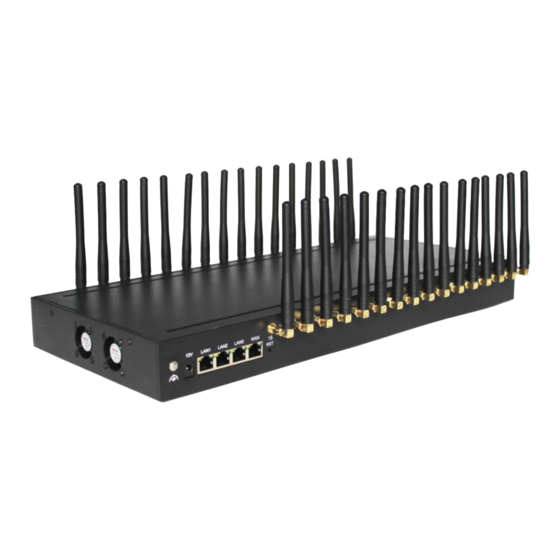

    Chapter Ⅰ Equipment Information Product Brief ACOM716 Router is a routing product independently developed by Shenzhen Ejoin Technology Co.,Ltd. In addition to basic functions such as routing, it also support socks5 proxy, http&https proxy, port forwarding , sms sending and receiving and so on. It has the characteristics of economy, security and efficiency.

  • Page 7: Product Appearance

    ACOM716 User Manual Product Appearance Back Panel Figure 1.3-1 Back Panel Description of the front panel(from left to right)： ⚫ 1 Ground connection ⚫ 1 reset button (press RST button about 10s will restore to factory settings) ⚫ 1 Power Interface (DC 12V 5A) ⚫...

  • Page 8: Special Features

    ACOM716 User Manual ： Description of the front panel(from left to right) ⚫ 16 SIM slots (4 SIM cards per channel) ⚫ 1 Power light (indicate the status of the power connection) ⚫ 2 fans ⚫ 1 Console Interface (USB to Serial, Baudrate 115200) Special Features ⚫...

  • Page 9: Chapter Ⅱ Equipment Installation

    ACOM716 User Manual Chapter Ⅱ Equipment Installation SIM Card Placement Insert SIM cards like the figure 2.1-1. The SIM cards should be mini-SIM (2FF). Figure 2.1-1 SIM Card Placement Antenna Installation The external antenna should be installed vertically always on a site with a good wireless signal.

  • Page 10: Power Connection

    ACOM716 User Manual Figure 2.3-1 Network Connection Power Connection Connect the small end of the power cable to the power input on the back panel, and plug the other end of the cable into a 220V power outlet. Figure 2.4-1 Power Connection 2.5 Serial Connection...

  • Page 11: Chapter Ⅲ Web Settings

    ACOM716 User Manual Figure 2.5-1 Serial Connection Chapter Ⅲ Web Settings Login Open the web browser and type the IP address. If it is the first time you login the gateway, please use the default settings below: IP Address: 192.168.1.67...

  • Page 12: System Settings

    ACOM716 User Manual Figure 3.1-1 Login web System Settings 3.2.1 Admin The default username/password of gateway are admin/admin. You are allowed to change the password on this page. Figure 3.2.1-1 Admin Shenzhen Ejoin Technology Co.,Ltd.
  • Page 13 ACOM716 User Manual 3.2.2 System config System On this page, you can change time zone and NTP settings, the device also can be used as a NTP server. Figure 3.2.2-1 System Set Public IP Config When the sim card online and it dial ok, most of the sim cards can’t show the public IP, you...
  • Page 14 ACOM716 User Manual can configure on this page to get the public IP. Figure 3.2.2-2 IP config 3.2.3 System operation Import On this page, you can update the firmware for device, you can also update other files like rom, license etc.

  • Page 15: Gateway Settings

    ACOM716 User Manual Figure 3.2.3-2 Restore to factory Reboot device Click restart to reboot device. Figure 3.2.3-1 Reboot device 3.2.4 Network test It’s used to test the reachability of the destination server. Figure 3.2.4-1 Network test Gateway Settings 3.3.1 IMEI Settings IMEI means International Mobile equipment Identity, it is a 15-digit number.
  • Page 16 ACOM716 User Manual Figure 3.3.1-1 IMEI Settings You can set any different IMEI for every port, just set 14-digit number, the last digit will Shenzhen Ejoin Technology Co.,Ltd.

  • Page 17: At Command

    ACOM716 User Manual generate itself. If you need set with special prefix, just click “copy” , you can see the figure as above: set 865 in port 1, after click “copy”, every port will have a IMEI prefix 865, click “auto complete”, the IMEI prefix will generate automatically.

  • Page 18: Switch Card

    ACOM716 User Manual Figure 3.3.3-1 USSD List 3.3.4 Switch Card Basic Settings When sim card locked, device will send a sms to destination mobile for warning. Figure 3.3.4-1 Basic Setting Conditions for Switch Card When the SIM reaches any conditions below, device will lock/switch it.
  • Page 19 ACOM716 User Manual Figure 3.3.4-2 Locking Card Conditions We take “accumulated failed SMS checking” for example to explain the lock/switch function. Items Description If it is enabled, the accumulated failed SMS will be used as a Enable or Not condition for system to check.

  • Page 20: Apn Settings

    ACOM716 User Manual 3.3.5 APN settings If the sim card dialed failed, please try to configure APN. Figure 3.3.5-1 APN Settings 3.3.6 Remote MGT We can’t access in device web interface with other network if the device is behind NAT, ETMS is the remote system which can help us access in the device with other network.

  • Page 21: Data Control

    ACOM716 User Manual Items Description Server type Disable or enable ETMS Server IP ETMS server ip Server Port The port of ETMS service. Default is 50000 Account ETMS device account. Password Password of ETMS device account. status The Registration status of gateway with ETMS server.
  • Page 22 ACOM716 User Manual value, the SIM will be locked by device. 0 means no limit. The value of limitation. After this month data usage reaches this Data Ctrl Month Limit value, the SIM will be locked by device. 0 means no limit.

  • Page 23: Sms Settings

    ACOM716 User Manual SMS Settings 3.4.1 SMS Send You can select one or more ports to send SMS to different receiver. Successful and failed SMS records will be show below. Figure 3.4.1-1 Send SMS 3.4.2 SMS Receive You can check the latest SMS content and clean up all the SMS content on this page.

  • Page 24: Sms Forward

    ACOM716 User Manual reply and delete SMS here. Figure 3.4.2-2 SMS Details 3.4.3 SMS Forward Emai to message Figure 3.4.3-1 Email to message Items Description Enabled, use email send to the email address which configured, the Email to messages content will send by device sim card to destination mobile...
  • Page 25 ACOM716 User Manual SMS forward HTTP Figure 3.4.3-2 forward by HTTP Items Description GET: the sms content will be in request line Forward protocol POST: the sms content will be in request body The URL which the sms forward to.
  • Page 26 ACOM716 User Manual SMS forward GSM When sim card receive sms, will forward the sms to the destination mobile which is set in “forward number” Figure 3.4.3-3 forward by GSM SMS forward SIP Figure 3.4.3-4 forward by SIP Items Description Server ip Sip server ip.
  • Page 27 ACOM716 User Manual SMS forward email Figure 3.4.3-5 forward by Email Items Description Email: when sim card receive sms, device will use sender email address Forward protocol send email to recipient. Disable: all sms send to one email address. Multiple Port Enabled: different port send to different email address.

  • Page 28: Sms Control

    External Short Messaging Entities (ESME). The protocol is a level-7 TCP/IP protocol, which allows fast delivery of SMS messages. EJOIN device support SMPP V3.4, it can works as SMPP client and server, but we usually used it as a SMPP server BASIC settings Shenzhen Ejoin Technology Co.,Ltd.
  • Page 29 ACOM716 User Manual Figure 3.4.5-1 Basic Settings Items Description client: device work as smpp client SMPP server: device work as smpp server, if device is in NAT, need to forward the device smpp port first. Port Device smpp port Account Smpp account for smpp client register.
  • Page 30 ACOM716 User Manual Figure 3.4.5-2 Advanced Settings Items Description Enabled: forward sms to smpp client. Forward sms Disabled: don’t forward sms to smpp client. Sms Report Msg Type Sms report message type, default is Deliver_SM. Submitted: when device receive request, send back submit ok.

  • Page 31: Eims Settings

    Figure 3.4.5-3 Translation List 3.4.6 EIMS Settings EIMS is a SMS server which connect with Ejoin device by private protocol. It also support HTTP, SMPP to connect the third-party SMS system to send and receive SMS. Basic Settings Figure 3.4.6-1 Basic Settings...

  • Page 32: Prefix Route

    ACOM716 User Manual Items Description Server Type Enable or disable eims setting. Server address EIMS server ip, default port 20002. User Name The device account in EIMS Password Account’s password Registeration status OK means register successfully Table 3.4.6-1 Basic Settings 3.4.7 Prefix route...

  • Page 33: Sms Filter

    ACOM716 User Manual Figure 3.4.7-2 port prefix 3.4.8 SMS Filter SMS filter is used for filtering the spam message, configure the sender number or sensitive word. When the receive sms match with sender or sensitive word, the receive sms will not show in page “SMS receive”, it will shows in SMS Trash Box, and also these sms will not forward to third-party system.

  • Page 34: Network Setting

    ACOM716 User Manual Figure 3.4.8-2 SMS trash box Network Setting 3.5.1 VPN settings A virtual private network (VPN) extends a private network across a public network, such as the Internet. It enables a computer or network-enabled device to send and receive data across shared or public networks as if it were directly connected to the private network, while benefiting from the functionality, security and management policies of the private network.

  • Page 35: Interface Settings

    ACOM716 User Manual 3.5.2 Interface Settings This page can view the current network interface status information of the device, and also you can edit wan port ip and redial 4G interface in this page. Figure 3.5.2-1 Interface Settings 3.5.3 Routes This page is mainly used to display the current routing information of the device.

  • Page 36: Application Settings

    ACOM716 User Manual Port forwarding: allows remote computers (for example, computers on the Internet) to connect to a specific computer or service within a private local-area network (LAN). But sim card need public ip. Traffic rules: traffic transfer between different areas is defined.

  • Page 37: Http Proxy

    ACOM716 User Manual 3.6.2 HTTP Proxy This page is used to configure http and https proxy. Figure 3.6.2-1 HTTP Proxy 3.6.3 SSH Tunnel This page is used to configure SSH tunnel, SSH tunnel is used to forward the device tcp port.

  • Page 38: Software Log

    ACOM716 User Manual Figure 3.7.1-1 System log 3.7.2 software log This page is used to download software log. Figure 3.7.2-1 Software log 3.7.3 Log Settings You can enable the specific progress module running logs to monitor the device working status, and set the log file counts. Device will save 5 logs as default. You can back to software log page to download these log files.

  • Page 39: Statistics

    ACOM716 User Manual 3.8 Statistics 3.8.1 Data statistics This page can view sim card data statistics. Figure 3.8.1-1 Data statistics 3.9 System Status 3.9.1 Port Status There are two ways to show port status, panel mode and list mode, click the menu to select the mode.
  • Page 40 ACOM716 User Manual Figure 3.9.1-1 Panel mode Items Description SIM card is detected, but it is not active. SIM card inserted, but the module not read the card. SIM card inserted, and module already read the card. SIM card is registered.
  • Page 41 ACOM716 User Manual Figure 3.9.1-2 List mode Items Description Port Number of device ports. The SIM slot number SIM Status Indicates whether SIM dial ok or not Online Dur. The online duration of sim card The sim card ip when dial successfully...
