Related Manuals for Teufel REAL BLUE TWS 3
Summary of Contents for Teufel REAL BLUE TWS 3

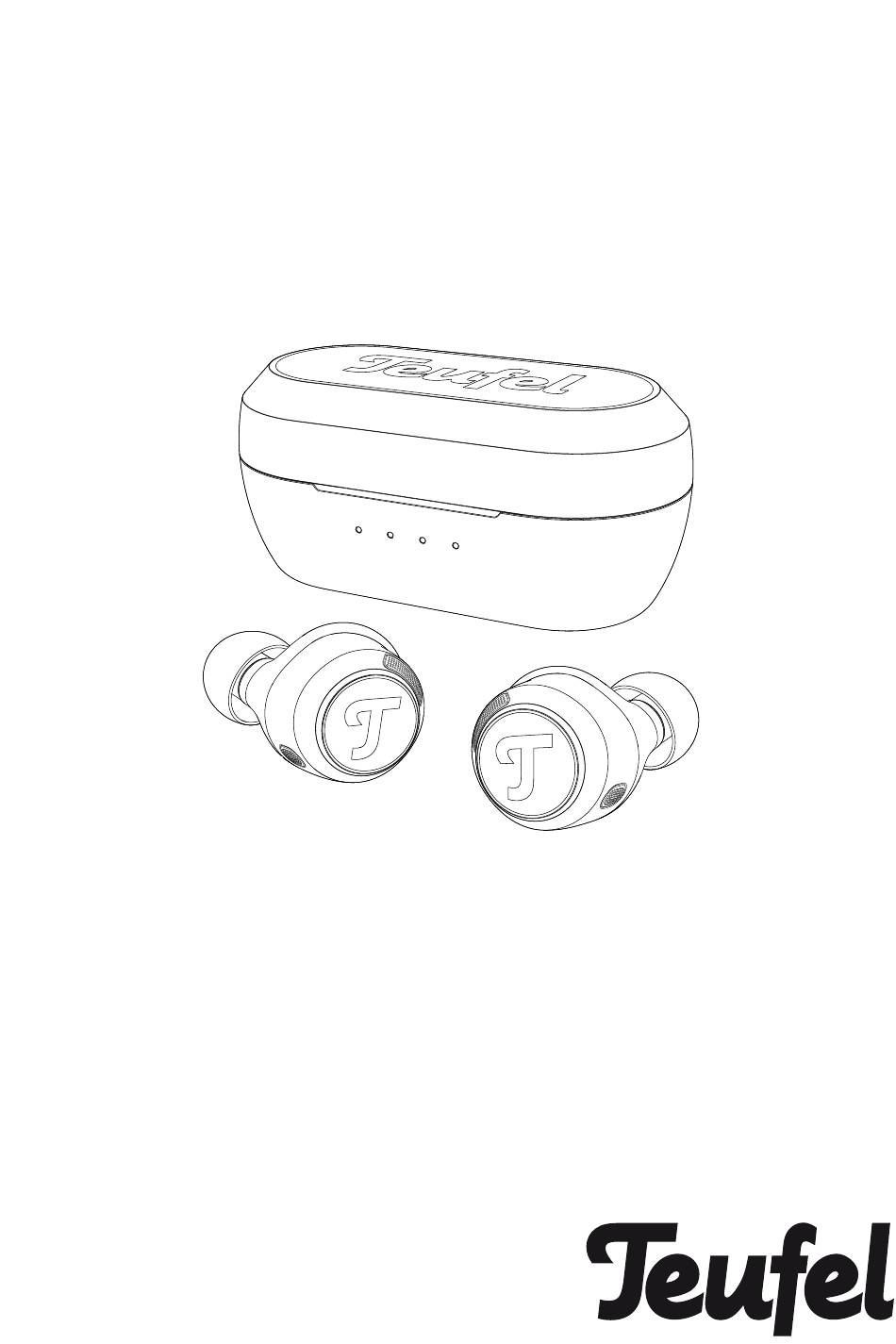

- Page 1 Technical Description And User Manual REAL BLUE REAL BLUE TWS 3 Bluetooth In-Ear Earphone...
-
Page 2: Table Of Contents
3.3 Connecting with the 7. Troubleshooting ......17 earphones ........11 8. Technical Data ......20 3.4 Information on the Bluetooth 9. Declaration Of Conformity ..21 wireless connection ....11 3.5 Teufel Headphones App ..11 4. Using the Earphones ....12 • REAL BLUE TWS 3... -
Page 3: Introduction
Introduction Thank you for purchasing the Teufel REAL BLUE TWS 3 Bluetooth earphones which are designed to bring an extraordinary sound experience for your entertainment. Please read this user manual before using the earphones for the first time, it will provide you with useful information and help you get started. -
Page 4: General Information
Lautsprecher Teufel The invoice number can be found GmbH. on the sales slip (enclosed with the... -
Page 5: For Your Safety
For Your Safety Proper Use Before operating the earphones, please first read The “Teufel REAL BLUE TWS 3” the safety notes and user Earphone are designed for the manual carefully. This is the playback of audio signals that only way to use all functions safely can be wirelessly transmitted via and reliably. -
Page 6: Trademarks
Android and Google Assistant are trademarks of Google LLC. The Bluetooth word mark and logos ® are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Lautsprecher Teufel is under license. • REAL BLUE TWS 3... -
Page 7: What's In The Box
1x pair of Earphones with eartips 1x Case 4x pairs of ear tips 1x Type C to Type A cable 1x Multi-language Quick Start Guide 1x Safety Booklet • REAL BLUE TWS 3... -
Page 8: Product Overview
The User Interface of “REAL BLUE TWS 3” has the following elements: 1. Multipurpose Area 2. Built-in Microphone 3. Charging contacts 4. Position label - left (L) and right (R) 5. Venting hole • REAL BLUE TWS 3... -
Page 9: Charging Case
2.2 Charging Case 1. Battery indicator 2. USB-C charging port • REAL BLUE TWS 3... -
Page 10: Getting Started
You comfortably and snugly. may need a different size for each ear. NOTICE To test the fit, try speaking aloud. Your voice should sound muffled in both ears; if not, select another tip size. • REAL BLUE TWS 3... -
Page 11: Connecting With The Earphones
2. Enable Bluetooth on your device ready for use. and search for the “Teufel REAL When you switch the earphones on, BLUE TWS 3”. A sound confirmed they automatically try to connect to once successfully paired. -
Page 12: Using The Earphones
Volume During playback, tap and hold R multipurpose area for volume up, L multipurpose area for volume down. Voice Assistant User defind command via Teufel Headphone App 1.5 sec Transparency Triple-tap L multipurpose area to turn on/off Transparency. Triple-tap R multipurpose area to turn on/off ANC. -
Page 13: Charging
Before charging, be sure and slowy flashing while charging. that the earphones are at the correct operating temperature of between 0°C and 45°C. • REAL BLUE TWS 3... -
Page 14: Charging Time
Mode by triple tape pressing front of the case, they glow according multipurpose area-L to the battery level as follows: External sounds are mixed to the music and you can hear conversations or announcements. 5.3 Charging wirelessly • REAL BLUE TWS 3... - Page 15 1 min. LEDs display current battery level for one second On connecting charging and then repeat charging pattern according to cable charging progress. On disconnecting LEDs display current battery level for 3s. Then off. charging cable • REAL BLUE TWS 3...
-
Page 16: Care And Maintenance
– Open the charging case, lift the top cover, and insert the left earphone into the left charging compartment and the right earphone into the right charging compartment. The earphones are magnetically pulled into the charging compartments. – Close the charging case. • REAL BLUE TWS 3... -
Page 17: Troubleshooting
1. Make sure your mobile device supports Bluetooth technology. 2. On your mobile device: Turn the Bluetooth feature off and then on. 3. Delete your Teufel REAL BLUE TWS 3 earphones from the Bluetooth list on your mobile device. Earphones don’t Connect again. - Page 18 4. Move your mobile device closer to the earphones (10 m) and away from any interference or obstructions. 5. Clear any debris or wax buildup from the earphones and earphones nozzles. Eartips falling off Securely attach the tips to the earphones. • REAL BLUE TWS 3...
- Page 19 TWS Pairing (for Lost and purchase a new 2. Put the two earphones in the charging case. earbud) 3. The pairing will be done with 3 short presses on both earphones respectively. • REAL BLUE TWS 3...
-
Page 20: Technical Data
Frequency bands in MHz: 2400 – 2483.5 Transmission power in mW/dBm: < 10 mW/< 10 dBm USB Charging Power: 5V 0.5A You can find further technical data on our website. Technical changes reserved! 2,5 W • REAL BLUE TWS 3... -
Page 21: Declaration Of Conformity
9. Declaration Of Conformity Lautsprecher Teufel GmbH declares that this product complies with Directive 2014/53/EU. The full text of the EU declaration of conformity can be found at these Internet addresses: www.teufel.de/konformitaetserklaerungen www.teufelaudio.com/declaration-of-conformity • REAL BLUE TWS 3... - Page 22 Fax: +49 (0) 30 / 300 930 930 www.teufelaudio.at Online-Support: www.teufelaudio.nl www.teufelaudio.com/service www.teufelaudio.be www.teufel.de/service www.teufelaudio.fr Kontaktformular: www.teufelaudio.pl www.teufel.de/kontakt www.teufelaudio.it Contact: www.teufelaudio.es www.teufelaudio.com/contact No responsibility is assumed for the correctness of this information. Technical changes, typographical errors and other errors reserved. Teufel REAL BLUE TWS 3_UM_V1.1...
