Summary of Contents for C&A IP Holdings LIVEFINE LVFPDWIFC
- Page 1 WiFi automatic Pill Dispenser ® User Guide LVFPDWIFC / LVFPDWIFF...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions Package Contents Product Overview Understanding the Daily Dosage Rings Setup Instructions Operating Instructions Operating the Pill Dispenser Care and Maintenance / Specifications Warranty NEED HELP? -
Page 3: Safety Precautions
Thank you for purchasing the LiveFine Wi-Fi® Automatic Pill Dispenser. This user guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. - Page 4 • Organizing medications correctly and assigning quantities and times is the sole responsibility of the user and/or their caregiver or healthcare provider. LiveFine is not liable for missed medications. • If you do miss a dose for any reason, please contact your healthcare provider and/or follow the directions provided by your physician or pharmacist.
-
Page 5: Package Contents
Package Contents LiveFine Automatic Locking key Dosage rings (x9) Pill Dispenser AA alkaline batteries (x4) Power cable Power adapter User guide... -

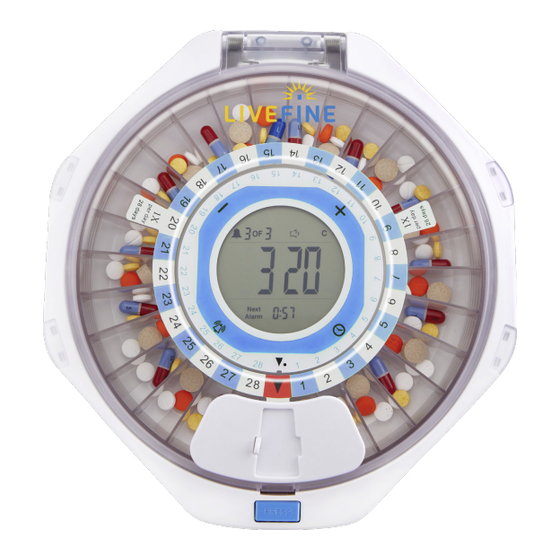

Page 6: Product Overview
Product Overview Dispensing window Top locking cover Daily dosage ring LCD display Internal pill container Cover button (removable) - Page 7 Speaker Power DC IN Battery Battery door door latch Cover lock...
-
Page 8: Understanding The Daily Dosage Rings
Understanding the Daily Dosage Rings Your Wi-Fi Automatic Pill Dispenser comes with 9 different rings, corresponding to the number of times per day that medication needs to be dispensed. The rings are designed and recommended to help you in laying out medication in the internal pill container, so it is properly dispensed. - Page 9 DO NOT PUT MEDICATION IN THE SLOTS INDICATED BY THE RED SPACES. These spaces indicate remainder times. For example, if you need medication dispensed at 5 different times during the day, the ring can accommodate 5 days or 25 medication times. Three slots are left over. These leftover slots are indicated by the red space, and this is why there are substantially larger red areas on the 5x per day and 6x per day rings.
-
Page 10: Setup Instructions
Setup Instructions Installing the Batteries 1. Turn the dispenser upside-down. Use the locking key by inserting it into the battery cover and turning it clockwise. 2. Remove the battery door. 3. Insert four (4) AA alkaline batteries, making sure to match the polarities (+ and –... -
Page 11: Operating Instructions
Operating Instructions Selecting the Time Format Press and hold the CLOCK “ ” button for two (2) seconds to switch between 12- and 24-hour mode. Setting the Time 1. Press the CLOCK button once to start the time setting 2. Press the + or – button to adjust the hour. Then, press the CLOCK button again to adjust the minute. Flash Flash adjust minute... - Page 12 4. Press the + or - button to adjust the minute, similar to the hour. NOTE: Pressing and holding the + or – button will cause the hour or minute digits to change faster. And the digits on display will flash to indicate which digits are currently being changed. 5.
- Page 13 Wi-Fi Connection Setup ® Make sure your smartphone is connected to your Wi-fi network. Download the LiveFine app from Google Play™ or the App Store®. Open the app on your mobile device. Then, sign up or log into your LiveFine account. Once you are logged in, tap “Add Device”...
-
Page 14: Operating The Pill Dispenser
Add Manually Tap the pill dispenser you wish to connect to. Make sure the pill dispenser is plugged in and is in pairing mode. Then, tap “Next” to move on. Enter your Wi-fi network name and password. Then, tap “Next”. Go to your Wi-fi settings on your mobile device and select “SL-LiveFine-XXXX”... - Page 15 the dosage window, it is time to refill the container. Set your medication alarm times on the dispenser (please refer to the “Setting the Alarm” section). Adjust the volume, time, and time format on the dispenser (please refer to “Setting the Alarm Volume”, “Setting the Time”, and “...
- Page 16 6. Once all the alarms are set, a popup window will appear. Tap “Okay” in the popup window. The dispenser will automatically rotate the tray back to the starting position. 7. Another popup window will appear indicating your tray is ready. Tap “Okay” in the popup window. Dashboard Overview Next Dose –...
- Page 17 Open Lid icon - indicates that the pill dispenser cover is currently open. Plug and battery icon – indicates that the pill dispenser has a battery installed and is plugged in with the power cable. NOTE: If the pill dispenser is plugged out, the plug icon will disappear from the dashboard. Medication is ready When it is time to take your medication, the next dose window will turn red, and the alarm will sound (if the pill dispenser is not muted).
- Page 18 Alarms Overview The alarms screen is where you can edit alarms that you made or set up a new medication schedule. Keep in mind that if a new medication schedule is set, the pill dispenser will automatically rotate and reset back to the starting position.
- Page 19 Options Overview You can select the options icon on the top right corner of your screen to go to the options screen. On this screen, you can see device information, device network, and more. On this screen, you can take actions like changing the name of the pill dispenser, sharing the information about the pill dispenser with another app user, or removing the device from the app altogether.
-
Page 20: Care And Maintenance / Specifications
Care and Maintenance • Wipe the exterior with a soft, damp cloth. Do not use harsh detergents. • If needed, remove the internal pill container, and gently rinse/wipe the individual pill compartments. Allow the container to dry fully before replacing it or refilling it. •... - Page 21 LIMITED WARRANTY TO ORIGINAL CONSUMER This LiveFine Wi-Fi ® Automatic Pill Dispense (“Product”), including any accessories included in the original packaging, as supplied and distributed new by an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only, against certain defects in material and workmanship (“Warranty”) as follows: To receive Warranty service, the original consumer purchaser must contact the Company or its authorized service provider for problem determination and service procedures.
- Page 22 (e) Damage caused by third party services; (f) A Product or part that has been modified to alter functionality or capability without the written permission of the Company; (g) Consumable parts, such as batteries, fuses, and bulbs; (h) Cosmetic damage; or (i) If any LiveFine Wi-Fi ®...
-
Page 23: Need Help
Need Help? ® If you experience any problems with your LiveFine Wi-Fi Automatic Pill Dispense, please contact us at supportlfc@camarketing.com or 888-390-7622 before returning your product to the place of purchase. WE’RE HERE TO HELP! LIVEFINE is a trademark of C&A IP Holdings LLC in the US. Wi-Fi, WPA, and WPA2 are trademarks of Wi-Fi Alliance in the U.S.
