Afinia L701 Quick Setup And Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

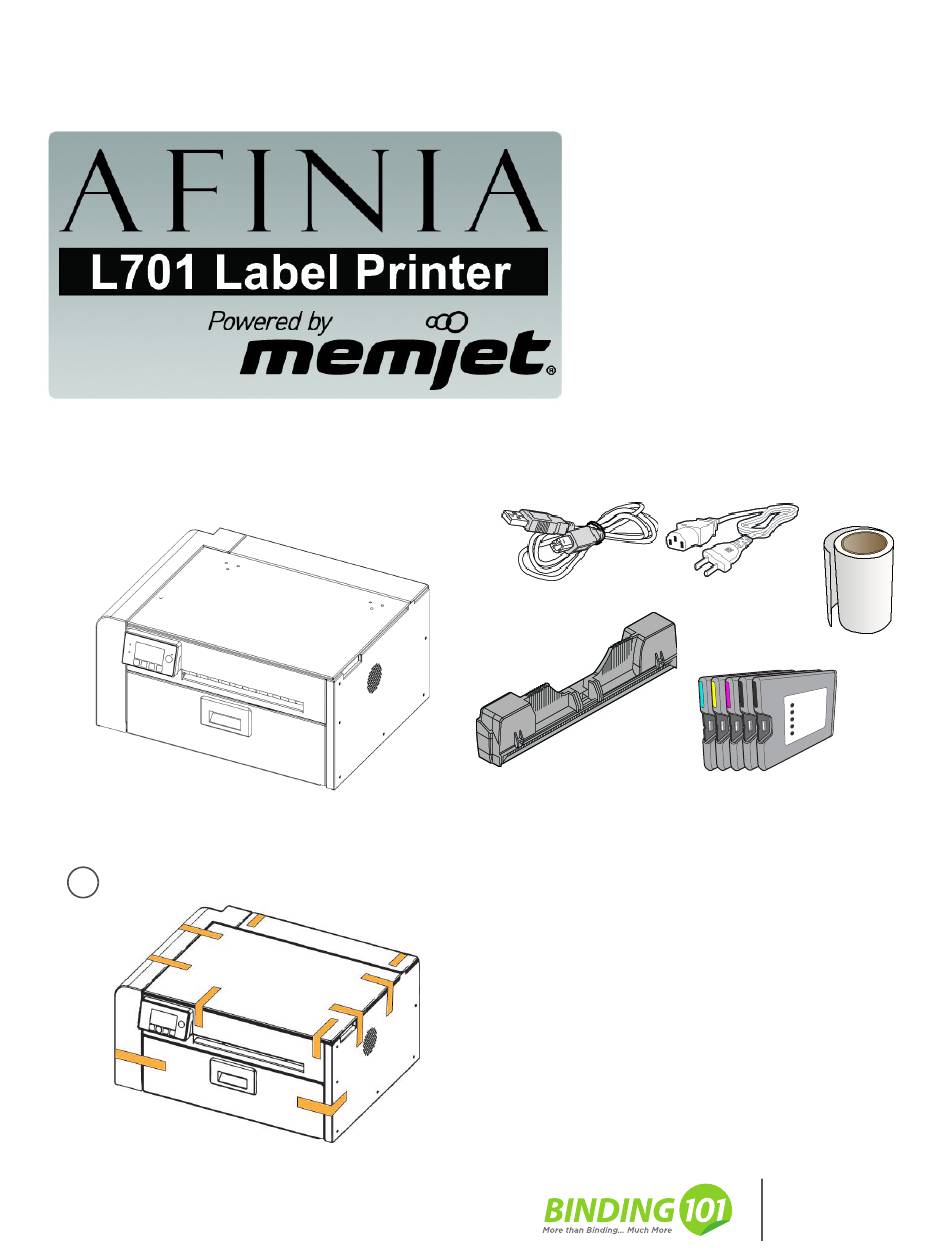

Unpack:
1
Remove tape and packing materials
a
Remove tapes.
Quick Setup
For more detailed information, insert the
Installation Disc into the PC and click the User
Guide button on the Setup Launcher main
page.
(continued on next page)
and
Installation
Guide
binding101.com
(866) 537-2244

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L701 and is the answer not in the manual?

Questions and answers

Related Manuals for Afinia L701

Summary of Contents for Afinia L701

  • Page 1 Quick Setup Installation Guide For more detailed information, insert the Installation Disc into the PC and click the User Guide button on the Setup Launcher main page. Unpack: Remove tape and packing materials Remove tapes. (continued on next page) binding101.com (866) 537-2244...
  • Page 2 Open top cover and remove tapes and foam. foam Remove cardboard. Save the packing foam and cardboard! Squeeze latches to open clamshell Lift tabs Pull tabs to remove cardboard binding101.com (866) 537-2244...
  • Page 3 Connect power, turn on switch in back Do not connect the printer to a PC until prompted to do so during the Printer Driver Installation! Choose display language LANGUAGE Missing Printhead 1. English Language not displayed, press Select For other languages, (Config) press (Select)

  • Page 4: Install Ink Cartridges

    Install ink cartridges binding101.com (866) 537-2244...

  • Page 5: Install Printhead

    Slowly remove tape from electrical contacts Install and nozzles printhead electrical contacts No less than 45° nozzles Missing Printhead (Config) CONFIGURATION 3. PRINTHEAD (Select) PRINTHEAD 2. REPLACE Wait for printhead latch to be released. Open printhead latch fully. Check that ink is flowing through the tubes on both sides of the printhead.

  • Page 6: Load Sample Media

    Load sample media Flat side against media roll. Unwinder Media path Tighten knob fully. Insert media until it stops Wait for printer to load media binding101.com (866) 537-2244...

  • Page 7: Print Test Label

    Print test label Requires inter-label gap or continuous media Printer Online CONFIGURATION (Config) 2. MAINTENANCE (Select) MAINTENANCE 1. PRINT TEST PAGE PRINT TEST PAGE 2. PQ PLOT Top Section: • Lines are defined with no missing nozzles Sample PQ Plot •...

  • Page 8: Install Printer Driver

    To connect printer to network Connect printer to network using Ethernet Download Latest Driver Network Printer https://afinialabel.com/product-support/ l701-support/ Network If you will be using DHCP to set the IP Address, skip to step c. To assign the printer a Static IP address, please see...
