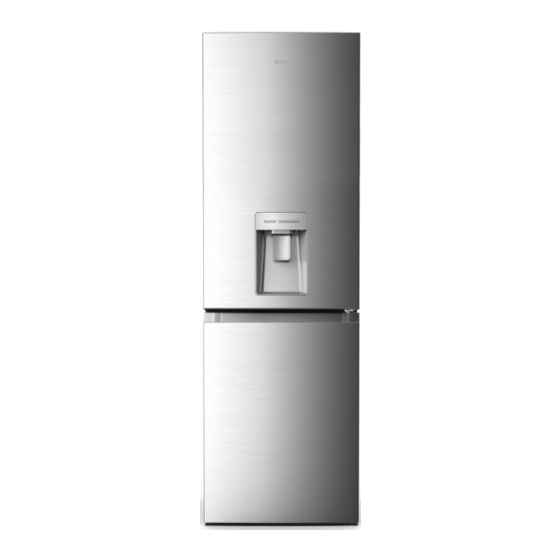

Refrigerator combi

Advertisement

Quick Links

USER GUIDE
AFC2701XAQUA
EN
Refrigerator
combi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFC2701XAQUA and is the answer not in the manual?

Questions and answers

Summary of Contents for AYA AFC2701XAQUA

  • Page 1 USER GUIDE AFC2701XAQUA Refrigerator combi...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important safety instructions - 36 - Structure illustration - 42 - Transport and handing - 43 - Installation - 43 - First use - 44 - Test - 45 - Temperature control - 45 - Storage of food - 46 - Defrosting - 51 -...
  • Page 3: Important Safety Instructions

    This product is for household use only! Please read these instructions carefully before the first use of this product and save this manual for your future reference. IMPORTANT SAFETY INSTRUCTIONS This warning is only for EUROPEAN market only! When using an electrical appliance, basic precautions should always be followed, including the following: 1.
  • Page 4 6. WARNING: Do not damage the refrigerant circuit. 7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. 8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • Page 5 the refrigerator, so that it is not in contact with or drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. – One-, two- and three-star compartments are not suitable for the freezing of fresh food.
  • Page 6 24. It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet. 25. Do not place hot food or drink into the refrigerator before it cools down to room temperature. 26.
  • Page 7 because too much frost may affect refrigeration. 38. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged. 39. Children should be supervised to ensure that they do not play with the appliance. 40.
  • Page 8 46. WARNING! Risk of fire – flammable material. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance. CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes throughout the EU.
  • Page 9: Structure Illustration

    STRUCTURE ILLUSTRATION Thermostat Device 6. Lower Drawer 2. Refrigerator Shelf 7. Adjustable Foot 3. Salad Crisper Cover 8. Full Balcony 4. Salad Crisper 9. Water Tank 5. Upper Drawer 10. Bottle Rack Note: The glass shelves and the crisper can be removed and inserted for cleaning and storing of food according to the appliance.
  • Page 10: Transport And Handing

    TRANSPORT AND HANDING When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree. Never hold the door handle as support. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet.
  • Page 11: First Use

    30cm 30cm 50-75mm FIRST USE Before the use of the refrigerator, remove all the packages, including bottom cushion and foam pads and rubber belts in the refrigerator. Adjust the feet and clear the outside and inside of the refrigerator with warm cloth. Do not start the refrigerator immediately after vertical placement.
  • Page 12: Test

    TEST Clean the parts of the refrigerator with lukewarm water on a soft cloth or with a neutral detergent and with clear water, then wipe them dry. Notes: Electric parts of the refrigerator can only be wiped by dry cloth. Turn the thermostat knob on the "3"...
  • Page 13: Storage Of Food

    knob from "1" position to "7" position, the temperature decreases continuously. Set the thermostat knob to "3-4"position for a normal use. STORAGE OF FOOD Your appliance has the accessories as the “Structure illustration” showed in general, with this part instruction you can have the right way to storage your food.
  • Page 14 Dairy foods and eggs · Most pre-packed dairy foods have a recommended 'use by /best before/best by/ date stamped on them. Store them in the fridge compartment and use within the recommended time. · Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
  • Page 15 Precooked foods and leftovers · These should be stored in suitable covered containers so that the food will not dry out. · Keep for only 1-2 days. · Reheat leftovers only once and until steaming hot. Vegetable container · The vegetable container is the optimum storage location for fresh fruit and vegetables.
  • Page 16 Storing frozen food Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.
  • Page 17 Suitable packaging: Plastic film, tubular film made of polyethylene, aluminum foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).
  • Page 18: Defrosting

    DEFROSTING Refrigerator compartment defrosts fully automatically While the refrigerating unit is running, beads of condensation or hoarfrost from at the back of the refrigerator compartment. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically.
  • Page 19: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS We recommend that you follow the tips below to save energy. Try to avoid keeping the door open for long periods in · order to conserve energy. Ensure the appliance is away from any sources of ·...
  • Page 20 · Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf. · Fruit and vegetables: They should be stored in the special drawer provided. · Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
  • Page 21: Cleaning Anc Care

    Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance. 1. Remove all food; 2. Remove the power plug from the mains socket; 3.
  • Page 22 Caution! Don't use sharp objects as they are likely to scratch the · surface. Don't use Thinner, Car detergent, Clorox, ethereal oil, · abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.
  • Page 23: Door Reverse

    If the light does not still work, verify if the light bulb is correctly screwed. If in spite of these tests, there is no light, it is necessary to change the light bulb. Use a 220-240V~, MAX 10W light bulb. 1.
  • Page 24 2. Lift the door upwards to disengage it from the middle hinge. Put the door to one side and lay it down gently on a padded surface. 3. Using a screwdriver, dismantle the middle hinge. Lift the door upwards to disengage it from the lower hinge. Put the door to one side and lay it down gently on a padded surface.
  • Page 25: Water Dispenser

    6. Place the freezer door on the lower hinge, making sure that the hinge pin is inserted in the hole at the bottom of the fridge door. Put the middle hinge back on the cabinet, making sure that it is on the opposite side from its original position.
  • Page 26 Filling the water tank Open the cap of the water tank. · Fill with pure and clean drinking water. · Do not overfill the tank. The capacity is 2L. · Close the cap. · Notes: Do not fill water tank with any liquid other than drinking water.
  • Page 27: Coldest Zone In The Refrigerator

    Clean the water tank · Take off the cover of water tank. Clean them with warm and clean water and dry them with clean and soft cloth. · Install them with opposite steps.To prevent possible leakage, ensure that any parts removed during cleaning are refitted correctly in their original locations.
  • Page 28 WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use. Checking the temperature in the coldest zone With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct.
  • Page 29: Troubleshooting

    TROUBLESHOOTING If your device shows the other symptoms that those described below, please call the service after sale of the shop a retailer. Symptom Cause Solution C h e c k t h e p l u g connecting it others There is no power appliance, or verify that supply...
  • Page 30 Symptom Cause Solution T u r n t h e k n o b o f appliance The temperature is regulation of doesn’t badly adjusted temperature on "3" or cool more enough Food made obsolete Throw away obsolete There are inside the refrigerator food and wrap the other s m e l l s i n...
  • Page 31: Technical Specifications

    TECHNICAL SPECIFICATIONS COMBI AFC2701XAQUA Commercial reference : 4894223220477 Household refrigerating appliance model category Refrigerator-freezer Energy efficiency class A+++ (the highest energy efficiency) to D (the lowest efficiency) Annual energy consumption (AEc) 260 kWh/an Energy consumption of 260 kWh per year, calculated based on the result obtained for 24 hours under standardized test conditions.
  • Page 32 ENERG AFC2701XAQUA + + + + + + + + + + kWh/annum 2010/1060 Notes: 260 kWh per year, based on the results of standard tests tested over a 24-hour period. The actual energy consumption will depend on the mode of use and location of the device.
  • Page 33 Tous les papiers se trient et se recyclent. BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France...
