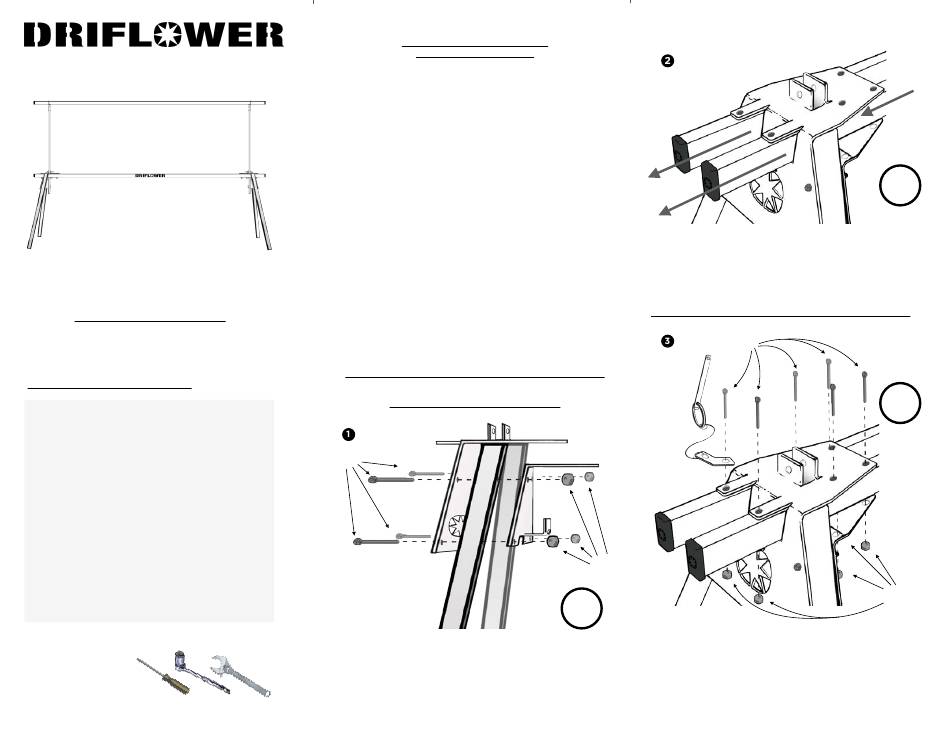

DRIFLOWER PRO HARVEST-RACK Assembly Instructions

THE PRO HARVEST-RACK™
• ASSEMBLY INSTRUCTIONS •
PARTS INCLUDED
The Pro Harvest-Rack pieces :
METAL BARS
4 - 30" Legs ...................................... ( A )
(1.5"x .75")
2 - 91" Cross Bar ............................. ( B )
(1.5"x .75")
2 - 36" Vertical Posts .................... ( C )
(1.5"x .75")
1 - 91" Stick (Hang Bar) ............... ( D )
(1.5"x .75")
BRACKETS
2 - Harvest-Brackets ........................................ ( Y )
2 - Inner Pro Harvest-Rack Brackets ...... ( G )
2 - Outer Pro Harvest-Rack Brackets ..... ( T )
SCREWS & NUTS
1
20 - 2 " Phillips Head Screws ................... ( ¥ )
4 /
1
4 - 1 " Phillips Head Screws ................... (
4 /
24 - #10 Nuts ..................................................... (
2 - Keeper Pins ............................................... ( ƒ )
TOOLS NEEDED ( NOT INCLUDED
Phillips Screwdriver
Pliers / Wrench (or)
Ratchet Wrench
Sockets #10, 3/8
™
PREPARE TO BUILD YOUR
The DriFlower Pro Harvest-Rack is designed to
streamline and organize mid to large scale harvests.
MAKE SURE TO READ ALL OF THESE INSTRUCTIONS
After reading the instructions, make sure you have the
correct pieces and screws for each assembly
(listed on the front page of these instructions).
You will start by putting together the leg assemblies.
Then, attach the dual cross bars to the legs.
Lastly, add the adjustable, vertical posts to the rack.
KEEP IT LIGHT BEFORE MAKING IT TIGHT
When assembling the Pro Harvest-Rack, we recommend
not tightening all the way. Simply, hand tighten or loosely
tighten the connections so there is adjustability when
Once the base is assembled, then tighten all connections
with wrench, screwdriver or other recommended tools.
KEEP IT IN LINE AND YOU'LL BE FINE
Keeping a visual check on your center alignment will
make for easy assembly and usage. For example, keep
the DriFlower stickers facing outward and right-side up so
they can be read normally. Each hole is aligned with the
proper placement of the cross bars.
Take your time. This Pro Harvest-Rack is about to
improve the efficiency of your harvest!
BUILD YOUR LEG ASSEMBLIES
( ¥ )
)
∆
∞ )
)
Begin by aligning legs pieces (A) with the pre-drilled leg holes
in the Outer Pro Harvest Bracket (T).
Insert the 2 1/4" screws (¥) through the outer bracket, through the
legs, and then connect the Inner Pro Harvest Bracket (G).
Attach the nuts (∞) and hand tighten.
PRO HARVEST-RACK
Congratulations!
.
connecting other pieces.
( T )
( G )
(
( A ) ( A )
x2
( B )
( B )
Attach the two Cross Bars (B) to the leg assemblies by inserting
each end through the open slots and aligning the holes.
Time to shine, keep it in line.
Make sure the cross bars are "face up" and "DriFlower" is legible
on each cross bar so that the holes match to each side.
( ¥ )
( ƒ )
∞
)
Once aligned, insert the 2 1/4" screws (
through the six holes (per side) so they align with the cross bars
and hand tighten into the Nuts (
**** But don't forget to attach the Keeper Pin! ****
The Keeper Pins (ƒ) come attached to a security tab which can
be connected to any of the six screws (¥) inserted during this
step. Make sure to complete both sides in the same way.
x2
x2
∞
( )
)
down from the top
¥
∞)
