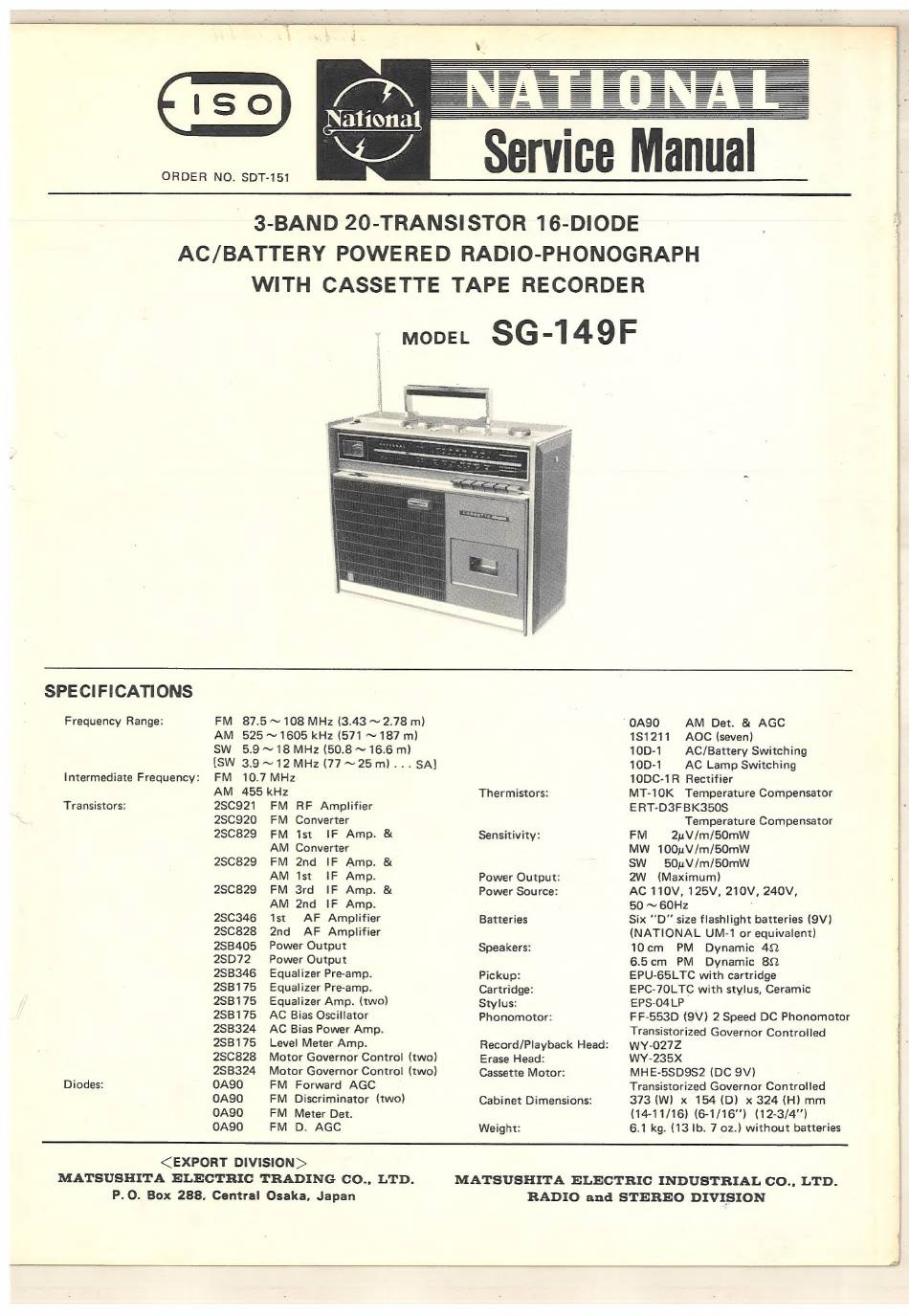

Matsushita Electric SG-149F Service Manual

ORDER NO. SDT-151
3-BAND 20-TRANSISTOR 16-DIODE
AC/BATTERY POWERED RADIO-PHONOGRAPH
WITH CASSETTE TAPE RECORDER
move. SG-149F
SPECIFICATIONS
Frequency Range:
FM 87.5 ~ 108 MHz (3.43 ~ 2.78 m)
AM 525 ~ 1605 kHz (571 ~ 187 m)
SW 5.9~18 MHz (50.8 ~ 16.6 m)
[SW 3.9 ~~12MHz(77~ 25m)... SA]
Intermediate Frequency: FM 10.7 MHz
Transistors:
Diodes:
AM 455 kHz
2SC921 FM RF Amplifier
2SC920 FM Converter
2SC829 FM ist IF Amp. &
AM Converter
2SC829 FM 2nd IF Amp. &
AM 1st IF Amp.
2SC829 FM 3rd IF Amp. &
AM 2nd IF Amp.
2SC346 1st AF Amplifier
2SC828 2nd AF Amplifier
2SB405 Power Output
2SD72 Power Output
2SB346 Equalizer Pre-amp.
2SB175 Equalizer Pre-amp.
2SB175 Equalizer Amp. (two)
2SB175 AC Bias Oscillator
2SB324 AC Bias Power Amp.
2SB175 Level Meter Amp.
2SC828 Motor Governor Control (two)
2SB324 Motor Governor Control (two)
OA90 FM Forward AGC
OASO FM Discriminator (two)
OA90 FM Meter Det.
OA90 FM D. AGC
Thermistors:
Sensitivity:
Power Output:
Power Source:
Batteries
Speakers:
Pickup:
Cartridge:
Stylus:
Phonomotor:
Record/Playback Head:
Erase Head:
Cassette Motor:
Cabinet Dimensions:
Weight:
OA90 AM Det. & AGC
1S1211 AOC (seven)
10D-1 AC/Battery Switching
10D-1 AC Lamp Switching
10DC-1R Rectifier
MT-10K Temperature Compensator
ERT-D3FBK350S
Temperature Compensator
FM 2uV/m/50mWw
MW 100uV/m/50mW
SW 50uV/m/50mWw
2W (Maximum)
AC 110V, 125V, 210V, 240V,
50 ~ 60Hz :
Six ''D" size flashlight batteries (9V)
(NATIONAL UM-1 or equivalent)
10cm PM Dynamic 42
6.5cm PM Dynamic 82
EPU-65LTC with cartridge
EPC-70LTC with stylus, Ceramic
EPS-O4LP
FF-553D (9V) 2 Speed DC Phonomotor
Transistorized Governor Controlled
WY-027Z
WY-235X
MHE-5SD9S2 (DC 9V)
Transistorized Governor Controlled
373 (W) x 154 (D) x 324 (H) mm
(14-11/16) (6-1/16") (12-3/4')
6.1 kg. (13 Ib. 7 oz.) without batteries
<EXPORT DIVISION>
MATSUSHITA ELECTRIC TRADING CO., LTD.
P.O. Box 288, Central Osaka, Japan
MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD.
RADIO and STEREO DIVISION
