Summary of Contents for OUTSTORM Z80
-
Page 2: The Main Components

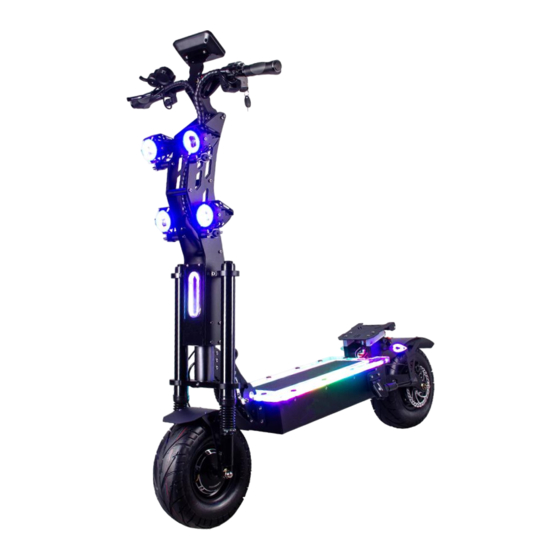

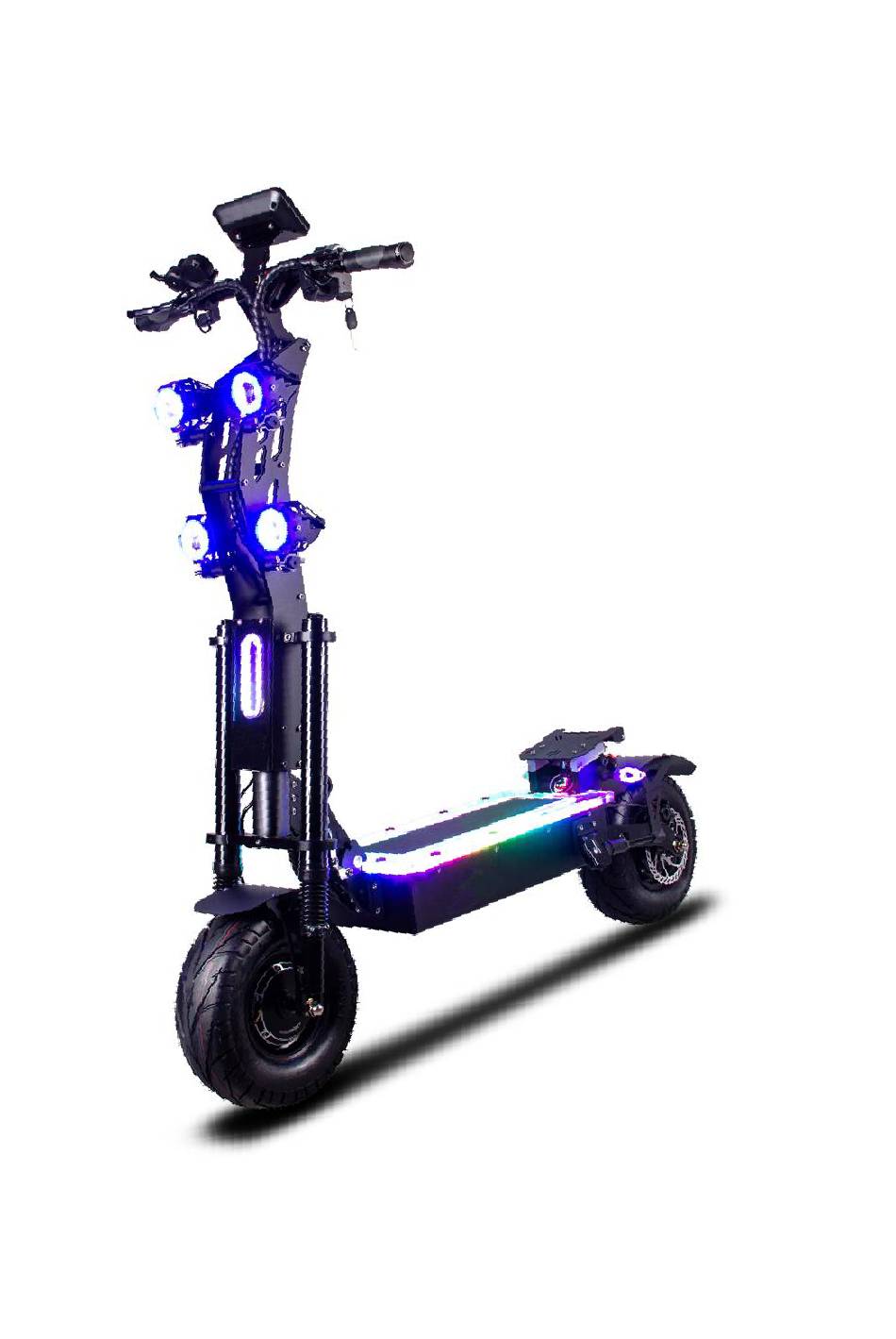

13inch Dual Motor E Scooter Manual The main components:... - Page 3 The main technical parameters Parameters Maximum speed About 85-120km/h (depend on scooter Motor power) Maximum mileage 60-130km(depend on Battery Capacity) Perform Maximum Load About 180-200kg ance and Scooter weight About 55kg(depend on model & battery) specifica size 135*69*150 cm (Open Size) tion 146*69*58 cm (Folded Size) Start form...
- Page 4 Scooter Handle Equipped with double driving with instructions...
- Page 5 ---Buttons Display User’s Manual Total 2 buttons : One is Power button; Another one is Mode button。 ---Instructions Press Power button to Turn on or Turn off Display; Show battery level ; Speed show real-time speed for the scooter. Range for Single mileage, accumulated mileage can showed by Mode button to choose.
- Page 6 Speed measurement magnetic steel number: range: 15-16 0-255; Speed limit: range 0-100km/h, not open Unused Zero start, non-zero start setting, 0: zero start: 1: non-zero start.Power output is available when the vehicle speed reaches 5km/h: Drive mode setting 0: power drive (determine how much power is output through the power gear, at this point the handlebar is invalid.
- Page 7 5. The operating instructions for folding First : take out the Unlock button first; Then Press the fold button to fold it. Pedal LED Sensor...
- Page 8 Announcements (1) Safe driving In the acceleration or deceleration time, be aware to avoid the body's gravity in the hand, to avoid the body forward. The standing posture should be keeping your feet one after the other, thus lead to more secure and stable riding. A.
- Page 9 B. When the brakes, the gravity center of body backwards. It is better to learn to control the center of gravity when braking. Otherwise it will cause two situations: the car tilted forward, as well as brake and steering system damage. Charge Steps: When charging the scooter, pls connect the scooter first.
- Page 10 confirmed, We will send free spare parts,we will pay shipping cost. (2). In 1year; when breakdown due to quality problems once confirmed,We supply free spare parts,shipping cost paid by customer. (3) Please refer to the warranty form for other specific warranty Note: The following conditions are not a quality issue and do not apply to warranty terms.
- Page 11 warranty service 9.The warranty reference for Electric Scooter Product name Warranty year Warranty coverage Pole A year Footboard A year Folding Handgrip A year Battery Half year Motor A year Multifunction instrument A year Others none none Note: Damage caused by human factors is not covered by the warranty.
