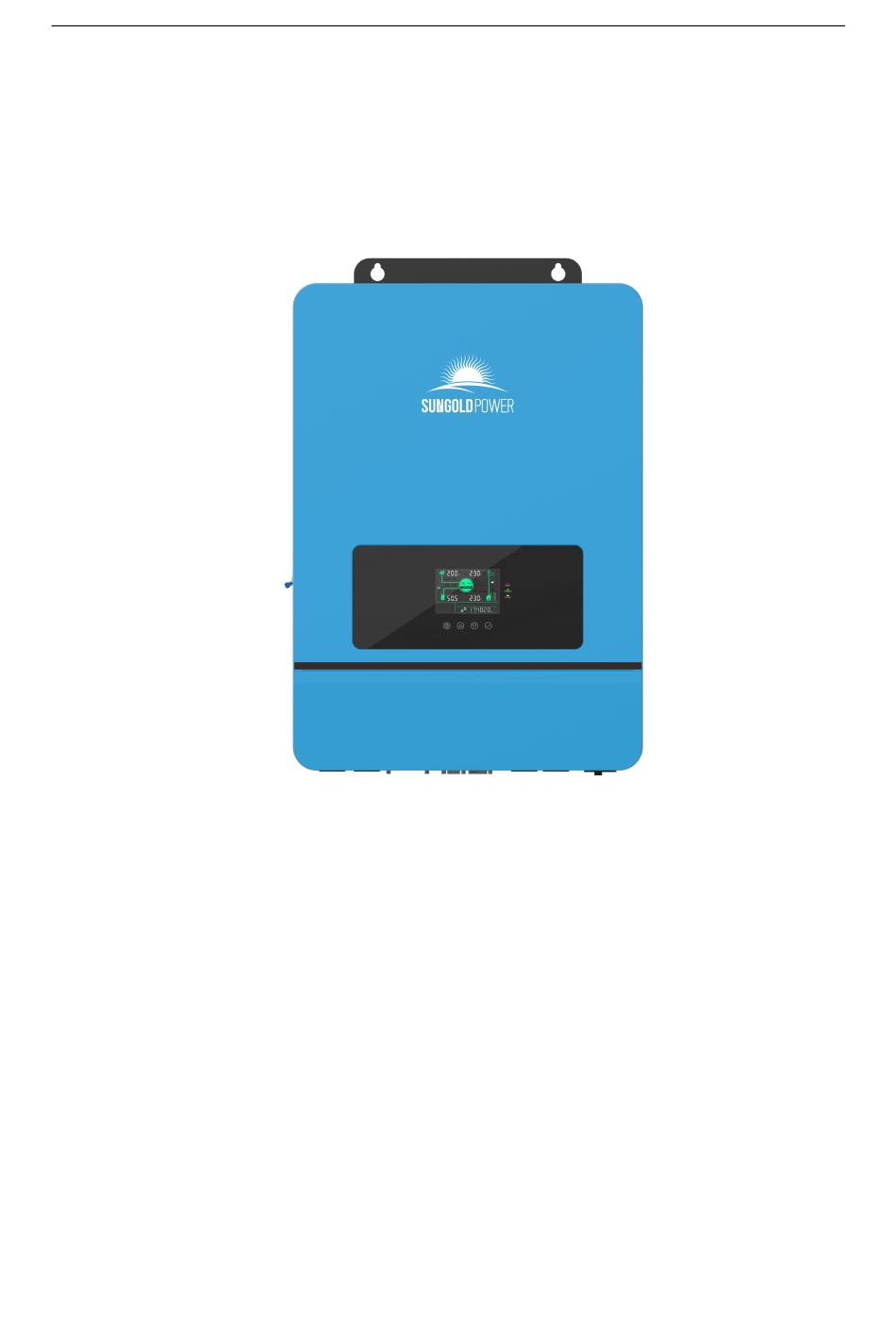

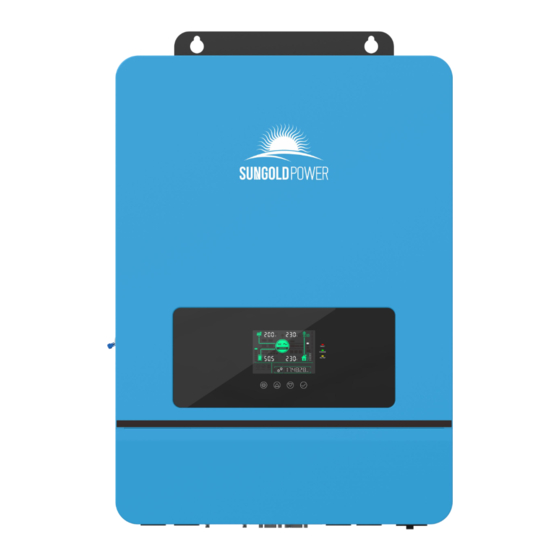

  • Page 1 Sun Gold Power Inc User Manual All-in-one solar charge inverter SPH8048P SPH10048P All-in-one Solar charge Inverter V1.0...

  • Page 2: Table Of Contents

    Sun Gold Power Inc Contents 1. Safety .............................4 1.1 About this Manual .............................4 1.2 Symbols and description .........................4 1.3 Safety matters ............................. 4 2. About the Product ....................... 5 2.1 Description ..............................5 2.2 Features .................................5 2.3 System connection diagram ........................6 2.4 Product overview ............................
  • Page 3 Sun Gold Power Inc 5.5 Timed charge/discharge function ..................... 49 5.6 Battery parameters ..........................50 6. Communication ........................52 6.1 Overview ..............................52 6.2 USB-B port ..............................52 6.4 RS485/CAN port ............................53 6.5 Dry contact port ............................54 7. Fault Codes and Response Measures ................55 7.1 Fault codes ..............................55 7.2 Troubleshooting ............................

  • Page 4: Safety

    Sun Gold Power Inc 1. Safety 1.1 About this Manual This Manual contains important information, guiding principles, operation, and  maintenance of the product, and applies to the model: SPH U series Users must follow the instructions in this Manual during installation, use, and ...

  • Page 5: About The Product

    Sun Gold Power Inc 2. About the Product 2.1 Description SPH series is a new type of solar storage inverter that integrates PV storage, mains charge, and energy storage and outputs sinusoidal AC. Equipped with DSP control and advanced control algorithm, it has high response speed and good reliability, and applies to industrial scenarios.

  • Page 6: System Connection Diagram

    Sun Gold Power Inc 2.3 System connection diagram The following figure shows the system application scenario of the product. A complete system consists of the following parts: PV module: It converts solar energy into DC to charge batteries or into AC to supply power to loads.

  • Page 7: Product Overview

    Sun Gold Power Inc 2.4 Product overview LCD screen LED indicator Physical button ON/OFF rocker switch PV input (1/1) Battery (positive electrode) Battery (negative electrode) Dry contact RS485/CAN port WIFI port USB-B port Grounding screw AC output (L1+L2+N) AC input (L1+L2+N) AC input circuit breaker 16 Parallel communication port All-in-one Solar charge Inverter V1.0...

  • Page 8: Installation

    Sun Gold Power Inc 3. Installation 3.1 Installation location SPH series is only for indoor use (protection level: IP20). Before selecting the installation location, users should consider the following factors: A solid wall  Installation height: flush with the line of sight ...

  • Page 9: Inverter Installation

    Sun Gold Power Inc 3.2 Inverter installation Drill 4 installation holes of the specified sizes on the wall with an electric drill, insert 2 expansion screws above, and fix the inverter with 2 M5 screws below. 3.3 Removal of terminal cover and insect-proof net Remove the terminal cover and insect-proof net with a Remove the insect-proof net when cleaning...

  • Page 10: Wiring

    Sun Gold Power Inc 4. Wiring 4.1 Wiring mode (depends on the output mode) Split-phase mode (default)  Item Description Applicable model SPH series U model AC output phase voltage (L-N) 100 VAC−120 VAC, 120 VAC (default) AC output line voltage (L-L) 200 VAC−240 VAC, 240 VAC (default) Single-phase mode ...
  • Page 11 Sun Gold Power Inc All-in-one Solar charge Inverter V1.0...
  • Page 12 Sun Gold Power Inc All-in-one Solar charge Inverter V1.0...

  • Page 13: Cable And Circuit Breaker Model

    Sun Gold Power Inc 4.2 Cable and circuit breaker model INPUT  Inverter Model Cable Size Maximum Input Current Circuit Breaker Model SPH8048P 5 mm² /10 AWG 22 A 2P-25A SPH10048P 5 mm² /10 AWG 22 A 2P-25A AC INPUT ...
  • Page 14 Maximum Output Mode Diagram Cable Size Breaker Model Current Model 13mm Split-phase 3P-63A mode (L1/L2/N) (L1\L2\N) SPH8048P 13mm Single-phase 42A (L1/L2) AWG (L1\L2) 2P-125A mode 84 A (N) 26mm AWG (N) L1 and L2 in same phase 13mm Split-phase 3P-63A...

  • Page 15: Ac Input And Output Wiring

    Sun Gold Power Inc 4.3 AC input and output wiring Connect the live wire, neutral wire, and ground wire according to the cable position and sequence shown in the following figure. △ DANGER Before connecting AC input and output, be sure to disconnect the circuit breaker to ...

  • Page 16: Pv Wiring

    Sun Gold Power Inc 4.5 PV wiring Connect the positive and negative terminals of the two-channel PV modules according to the cable position and sequence shown in the following figure. △ DANGER Before connecting PV modules, be sure to disconnect the circuit breaker to avoid the risk of ...

  • Page 17: Grounding

    Sun Gold Power Inc 4.7 Grounding Please ensure that the grounding terminal is reliably connected to the grounding busbar. ○ ! NOTICE The grounding cable size shall not be less than 4 mm² and shall be as close as possible ...

  • Page 18: Cautions For Parallel Connection

    Sun Gold Power Inc 4.9.2 Cautions for parallel connection Warning: 1. PV wiring: In parallel connection, the PV array of each inverter must be independent, and the PV array of PV1 and PV2 for one inverter must also be independent. 2.

  • Page 19: 3Wiring Diagram For Single-Phase Parallel Connection

    Sun Gold Power Inc 7. After the system is correctly wired, powered on, and in normal operation, if a new inverter needs to be connected, make sure to disconnect the battery input, PV input, AC input and AC output, and that all solar storage inverters are powered off before reconnecting into the system.
  • Page 20 Sun Gold Power Inc Three parallel-connected solar storage inverters: Four parallel-connected solar storage inverters: All-in-one Solar charge Inverter V1.0...
  • Page 21 Sun Gold Power Inc Five parallel-connected solar storage inverters: Six parallel-connected solar storage inverters: All-in-one Solar charge Inverter V1.0...

  • Page 22: Wiring Diagram For Two-Phase Parallel Connection

    Sun Gold Power Inc 4.9.4 Wiring diagram for two-phase parallel connection (phase difference between L1 and L2: 0°) (1) P1: Set the item [31] to "2P0;" P2: Set the item [31] to "2P1," all of the P1/P2 inverter item [68] can not be set, it is default “0°”and the phase difference between P1 and P2 is 120°. When setting the item [38] to "120 V,"...
  • Page 23 Sun Gold Power Inc Split-phase system (three inverters) 2+1 system Split-phase system (four inverters) 3+1 system: All-in-one Solar charge Inverter V1.0...
  • Page 24 Sun Gold Power Inc 2+2 system: Split-phase system (five inverters) 4+1 system: All-in-one Solar charge Inverter V1.0...
  • Page 25 Sun Gold Power Inc 3+2 system: Split-phase system (six inverters) 5+1 system: All-in-one Solar charge Inverter V1.0...
  • Page 26 Sun Gold Power Inc 4+2 system: 3+3 system: All-in-one Solar charge Inverter V1.0...

  • Page 27: Wiring Diagram For Split-Phase Parallel Connection

    Sun Gold Power Inc 4.9.5 Wiring diagram for split-phase parallel connection (phase difference between L1 and L2: 180°) Set the item [31] to PAL, and set the item [68] to 180°. When setting the item [38] to "120 V," the L1-L2 voltage is 240 V, and the L1-N voltage is 120 V, L2-N voltage is 120V Two parallel-connected solar storage inverters: Three parallel-connected solar storage inverters: All-in-one Solar charge Inverter V1.0...
  • Page 28 Sun Gold Power Inc Four parallel-connected solar storage inverters: Five parallel-connected solar storage inverters: All-in-one Solar charge Inverter V1.0...

  • Page 29: Wiring Diagram For Three-Phase Parallel Connection

    Sun Gold Power Inc Six parallel-connected solar storage inverters: 4.9.6 Wiring diagram for three-phase parallel connection P1: Set the item [31] to "3P1;" P2: Set the item [31] to "3P2;" P3: Set the same to "3P3"， all of P1/P2/P3 inverters item [68] can not be set, it is default “0°” At this point, the P1-P2, P1-P3, and P2-P3 phase difference is 120°.
  • Page 30 Sun Gold Power Inc Three-phase system (four inverters) 2+1+1 system: Three-phase system (five inverters) 3+1+1 system: All-in-one Solar charge Inverter V1.0...
  • Page 31 Sun Gold Power Inc 2+2+1 system: Three-phase system (six inverters) 2+2+2 system: All-in-one Solar charge Inverter V1.0...
  • Page 32 Sun Gold Power Inc 3+2+1 system: Note: 1) Before powering on and lighting up the screen, check for correct wiring according to the above wiring diagrams to avoid system problems. 2) Check all connections for firm fixing to avoid detachment and abnormal system operation. 3) When connecting the AC output to the load, complete wiring according to the requirements of the electrical load to avoid damage to the load.
  • Page 33 Sun Gold Power Inc setting the item [38] to "120 V," the voltage between the live wire L1 of P1 phase and the live wire L2 of P2 phase is 240 V, and the L1-N voltage is 120 V In split-phase parallel operation: Set the item [31] to PAL, and set the item [68] to 180°.

  • Page 34: Operation

    Sun Gold Power Inc 5. Operation 5.1 Operation and display panel The operation and display panel of the inverter includes one LCD screen, three indicators, and four physical buttons Physical button  Physical button Description Enter/Exit the setup menu Go to the next option Go to the previous option Confirm/Enter the option in setup menu LED indicator...
  • Page 35 Sun Gold Power Inc Display screen  Icon Description Icon Description PV panel Mains Battery Generator The inverter is working Load The inverter is communicating with The buzzer is in mute mode the data collector Power flow direction The inverter is working The inverter is in standby mode normally There is a fault...
  • Page 36 Sun Gold Power Inc Icon Description Icon Description Load power: 5%−19% SOC: 5%−19% Battery under-voltage Battery over-discharge Overload BMS fault System communication error System under-voltage System overvoltage Too low system temperature Too high system temperature System overcurrent Battery full power User-defined battery Sealed lead-acid battery Flooded lead-acid battery...
  • Page 37 Sun Gold Power Inc Real-time parameters view  operation On the screen, press the UP/DOWN button to view real-time data of the inverter in ○ ! NOTICE Real-time parameters view Touch UP/DOWN Screen Real-ti parame ters All-in-one Solar charge Inverter V1.0...
  • Page 38 Sun Gold Power Inc Page Battery AC input Load General Mains input Single-phase PV input voltage Battery voltage Current time voltage voltage Mains input Single-phase PV input current Battery current Current date current current Mains total Single-phase PV gross PV input power Battery voltage input power active power...

  • Page 39: Setting

    Sun Gold Power Inc 5.2 Setting View the setting Enter the setting Touch Touch UP/DOWN Screen parameter item Touch ENTER Edit the setting parameter Touch UP/DOWN Modify the parameter content Touch ENTER Touch SET Confirm the parameter content Parameter options Parameter ID All-in-one Solar charge Inverter V1.0...
  • Page 40 Sun Gold Power Inc Parameter Option Description Exit Exit the setup menu Mains first. Grid power supply is to be applied first. When the PV power is available, and the item 34 is set to "MIX LOD," UTI (default) both the mains and PV power supply power to the load, while the battery only supplies power to the load when the mains is not available.
  • Page 41 Sun Gold Power Inc Parameter Option Description SPH8048P, setting range: 0 A−180 A Battery charge current SPH10048P, setting range: 0 A−200 A User-defined, and in this type, you can set all battery USER parameters Sealed lead-acid battery Flooded lead-acid battery...
  • Page 42 Sun Gold Power Inc Parameter Option Description user-defined ones Setting range: 48 V − 58 V, with a step of 0.4 V, but only Equalizing charge available for flooded lead-acid batteries, sealed lead-acid voltage batteries, and user-defined ones Setting range: 5 min − 900 min, with a step of 5 min, but only Equalizing charge available for flooded lead-acid batteries, sealed lead-acid duration...
  • Page 43 Inverter to bypass switch Enable auto switch to mains for loading in case of inverter ENA ( default overload SPH8048P, setting range: 0 A−100 A Mains charge 60 ( default current SPH10048P, setting range: 0 A−120 A RS485 communication ID: 1 Setting range: 1−254...
  • Page 44 Sun Gold Power Inc Parameter Option Description communication to 485 or CAN in item 32 PAC = PACE, RDA = Ruida, AOG = Aoguan, OLT = Oliter, HWD = Sunwoda, DAQ = Daqin, WOW = SRNE, PYL = Pylontech, UOL = Vilion DIS ( Disable the function default...
  • Page 45 Sun Gold Power Inc Parameter Option Description DIS ( Disable the function default After the timed mains charge/loading function is enabled, the power supply mode will turn into SBU, where mains is available for power supply in the set period or after battery Timed battery over-discharge.
  • Page 46 Sun Gold Power Inc Parameter Option Description When the capacity is less than the set value, the discharge SOC setting for stops (unit: only available during normal discharge cutoff communication) SOC setting for When the capacity is greater than the set value, the charge charge cutoff stops (unit: %, only valid during normal BMS communication) When the capacity is less than the set value, it switches to...

  • Page 47: Ac Output Mode

    Sun Gold Power Inc 5.3 AC output mode The AC output mode corresponds to parameter setting items of 01 and 34, allowing users' manual setting Mains first 01 UTI (default)  The mains first supplies power. When PV is available, mains and PV can supply power to the load at the same time.

  • Page 48: Battery Charge Mode

    Sun Gold Power Inc 5.4 Battery charge mode The charge mode corresponds to the parameter setting item 06, allowing users' manual setting. Mix charge SNU (default)  Both PV and mains charge the battery, with PV used first, and mains as a supplement during insufficient PV power.

  • Page 49: Timed Charge/Discharge Function

    Sun Gold Power Inc 5.5 Timed charge/discharge function SPH series has the timed power charge/discharge function. Users can set different charge and discharge periods according to the local time-of-use price, thus reasonably using mains and PV power. When mains is expensive, the battery inverter is used to supply power to the load; when mains is cheap, it can be used to supply power to and charge the load, thus helping users reduce electricity expenses to the full extent.

  • Page 50: Battery Parameters

    Sun Gold Power Inc 5.6 Battery parameters Lead-acid battery  Sealed Flooded Gel lead-acid User-defined Lead-acid Lead-acid battery Battery Parameter/Battery Type Battery Battery Overvoltage disconnect voltage 60 V 60 V 60 V 60 V Equalizing charge voltage 58 V 56.8 V 58 V 40 V−60 V (settable) Boost charge voltage...
  • Page 51 Sun Gold Power Inc Li-ion battery  Ternary Li-ion User-defined LFP Battery Battery Battery Parameter/Battery Type Overvoltage disconnect 60 V 60 V 60 V 60 V 60 V 60 V voltage 40 V−60 V Equalizing charge voltage (settable) 40 V−60 V Boost charge voltage 53.2 V 57.6 V...

  • Page 52: Communication

    Sun Gold Power Inc 6. Communication 6.1 Overview USB-B port WIFI port RS485/CAN port Dry contact port Parallel port 6.2 USB-B port USB typeB USB 2.0 printer connecting cable Users can use the upper computer software through the port to read and modify device parameters.

  • Page 53: Rs485/Can Port

    Sun Gold Power Inc 6.3 WIFI port The WIFI port is used to connect to the Wi-Fi/GPRS data acquisition module, and then users can view the operation status and parameters of the inverter via the mobile APP. RJ45 Definition Pin 1 Pin 2 Pin 3 Pin 4...

  • Page 54: Dry Contact Port

    Sun Gold Power Inc 6.5 Dry contact port The dry contact port has 4 functions: 1. Remote ON/OFF 2. ON/OFF signal output 3. Battery temperature sampling 4. Remote generator start/stop ON/OFF signal output Temperature sampling (reserved) Remote ON/OFF Generator ON/OFF signal Function Description When pin 1 is connected to pin 2, the inverter will turn off the AC output.

  • Page 55: Fault Codes And Response Measures

    Sun Gold Power Inc 7. Fault Codes and Response Measures 7.1 Fault codes Fault Code Alarm Affect Fault Meaning Output or Description Code BatVoltLow Battery under-voltage alarm Overcurrent software protection for average BatOverCurrSw battery discharge current BatOpen Disconnected battery alarm BatLowEod Under-voltage battery discharge stop alarm BatOverCurrHw...
  • Page 56 Sun Gold Power Inc protection FanFail Fan fault EEPROM Memory fault ModelNumErr Model setting error Busdiff Positive and negative bus voltage imbalance BusShort Bus short-circuit Inverter AC output backward to bypass AC Rlyshort output LinePhaseErr Mains input phase error BusVoltLow Bus low-voltage protection Alarm of battery capacity rate below 10% BatCapacityLow1...
  • Page 57 Sun Gold Power Inc resistancefault Leakagecurrent System current leakage out of the standard overloadfault BMSComErr BMS communication fault BMS under-temperature alarm (taking effect BMSUnderTem after BMS communication is successful) BMS over-temperature alarm (taking effect BMSOverTem after BMS communication is successful) BMS overcurrent alarm (taking effect after BMSOverCur BMS communication is successful)

  • Page 58: Troubleshooting

    Sun Gold Power Inc 7.2 Troubleshooting Fault Meaning Cause Solution Code Check if the battery air-switch or PV There is no power input, air-switch has been closed; check if the No screen display or the device switch at its switch is in "ON"; press any button on the bottom is not turned on screen to exit the screen sleep mode.

  • Page 59: Protection Function And Product Maintenance

    Sun Gold Power Inc temperature of the heat sink for inverter heat sink for output exceeds 90°C for inverter output (software detection) Software detection founds Shut down, manually flick the fan, and Fan fault the fan has a fault check if any foreign objects are blocking it Manually shut down, and restart.
  • Page 60 Sun Gold Power Inc Mains input When the mains voltage of each phase is lower than 90 VAC, it will under-voltage stop mains from charge, and switch it to inverter output protection When the battery voltage reaches the overvoltage disconnect Battery overvoltage voltage threshold, it will automatically stop PV and mains from protection...

  • Page 61: Maintenance

    Sun Gold Power Inc 8.2 Maintenance In order to maintain the best long-term performance, it is recommended to conduct following checks twice a year. Make sure that the airflow around the inverter is smooth, and remove any dirt or debris from the heat sink.

  • Page 62: Parameter Table

    Sun Gold Power Inc 9. Parameter Table SPH8048P SPH10048P Inverter Model Settable Inverter output Rated output power 8,000 W 10,000 W Maximum peak power 16,000 W 20,000 W Rated output voltage 120/240 VAC (single-phase/split-phase) Loading motor capacity 5 HP 6 HP...
  • Page 63 Sun Gold Power Inc Maximum input power 11,000 W Maximum Input 22/22 A Current Maximum open circuit 500 Vdc voltage MPPT operating 125 Vdc−425 Vdc voltage range Mains/generator input Input voltage range 90 VAC−140 VAC Input frequency range 50/60 Hz Bypass overload current 63 A Efficiency...
