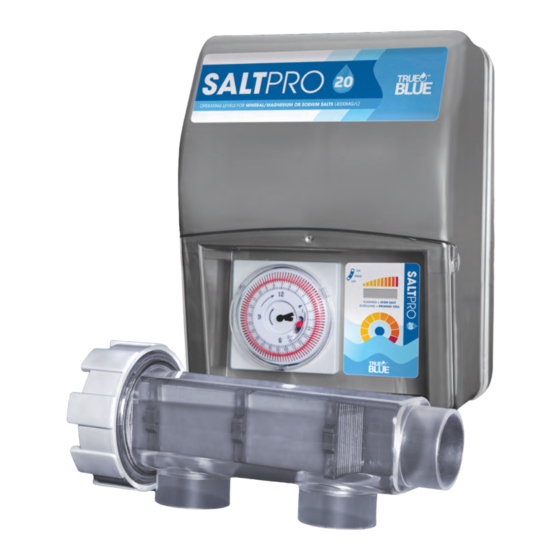

Summary of Contents for True Blue SALTPRO 20
- Page 3 INDEX INDEX & SPECIFICATION INSTALLATION PLUMBING TIMER OPERATION WATER QUALITY TROUBLESHOOTING 10. PARTS 11. WARRANTY SPECIFICATION SPECIFICATION Model No Model No SALT-PRO 20 SALT-PRO 20 SALT-PRO 30 SALT-PRO 30 Voltage Input Voltage Input 240V AC 240V AC 240V AC 240V AC Amps Input Amps Input 8.6A...
-
Page 4: Installation
SAFETY Warning: This handbook offers important details about how to set up, run, and utilise this product safely. The owner and/or operator of this equipment should be informed of this information. This manual's safety guidelines and cautions must be followed to avoid serious injury and/or equipment damage. - Page 5 PLUMBING Plumbing should be performed by a qualified Plumber or a pool service technician where possible. WARNING: Do Not apply Priming Fluid to the Clear Cell Housing All pipe work should be primed with priming fluid before glue is applied, any high pressure PVC glue will work, make sure both surfaces are well coated before mating the connections as you will only have a few seconds before the glue bond will take.
-
Page 6: Setting The Time
TIMER Setting the Time Remove the clear cover from the timer To adjust the timer to correct time of day, turn the timer in a Clockwise direction, the Hour & Minute hands will start to move. The illustration below shows the Time of day set to 4.30pm indicated by the arrow ( 6 = 6am, 12 = Midday, 18 = 6pm, 24 = Midnight etc ) Setting Operating Times There are 96 levers around the face of the Timer, each lever will operate the chlorinator... -
Page 7: Manual Operation
OPERATION Chlorine Control The Control Knob on the front of the chlorinator is used for chlorine control, Fully anti-clockwise is 0% and fully clockwise is 100%. There are 10 LED segments to indicate percentage production, every LED segment = 10% chlorine production Manual Operation To manually operate the Chlorinator &... - Page 8 WATER QUALITY WATER QUALITY Your water BALANCE should be kept within the following levels for trouble free operation Your water BALANCE should be kept within the following levels for trouble free operation SALT - Sodium, Mineral or Magnesium SALT - Sodium, Mineral or Magnesium Measurement Interval - once a month Measurement Interval - once a month 4000 mg/L...
-
Page 9: Troubleshooting
TROUBLESHOOTING Before troubleshooting, remove power from the chlorinator by turning off at the wall or removing the mains plug, wait for 10 seconds then re-apply power, this will reset the internal processor to its default state. PROBLEM CAUSE REMEDY Lights are scrolling 0 - 100% Priming cell Make sure water is flowing No water is flowing through... - Page 10 TROUBLESHOOTING Part No Description Part No Description Control PCB Mounting Bracket Plastic Cover Backing Plate J-Box 20 - 30 -40gr Transformer Mains Cable Pump Outlet Ribbon Cable Timer Main PCB Clear Window Control Label Control Knob...
-
Page 11: Warranty
Pool • Your True Blue Chlorinator carries the following warranty should a fault occur due to faulty materials or manufacture • P warrants the original purchaser of the control panel and cell electrode, whether... - Page 12 1300 TB POOL 8 2 7 6 6 5...
