Summary of Contents for Kogan KAM529LBMFA

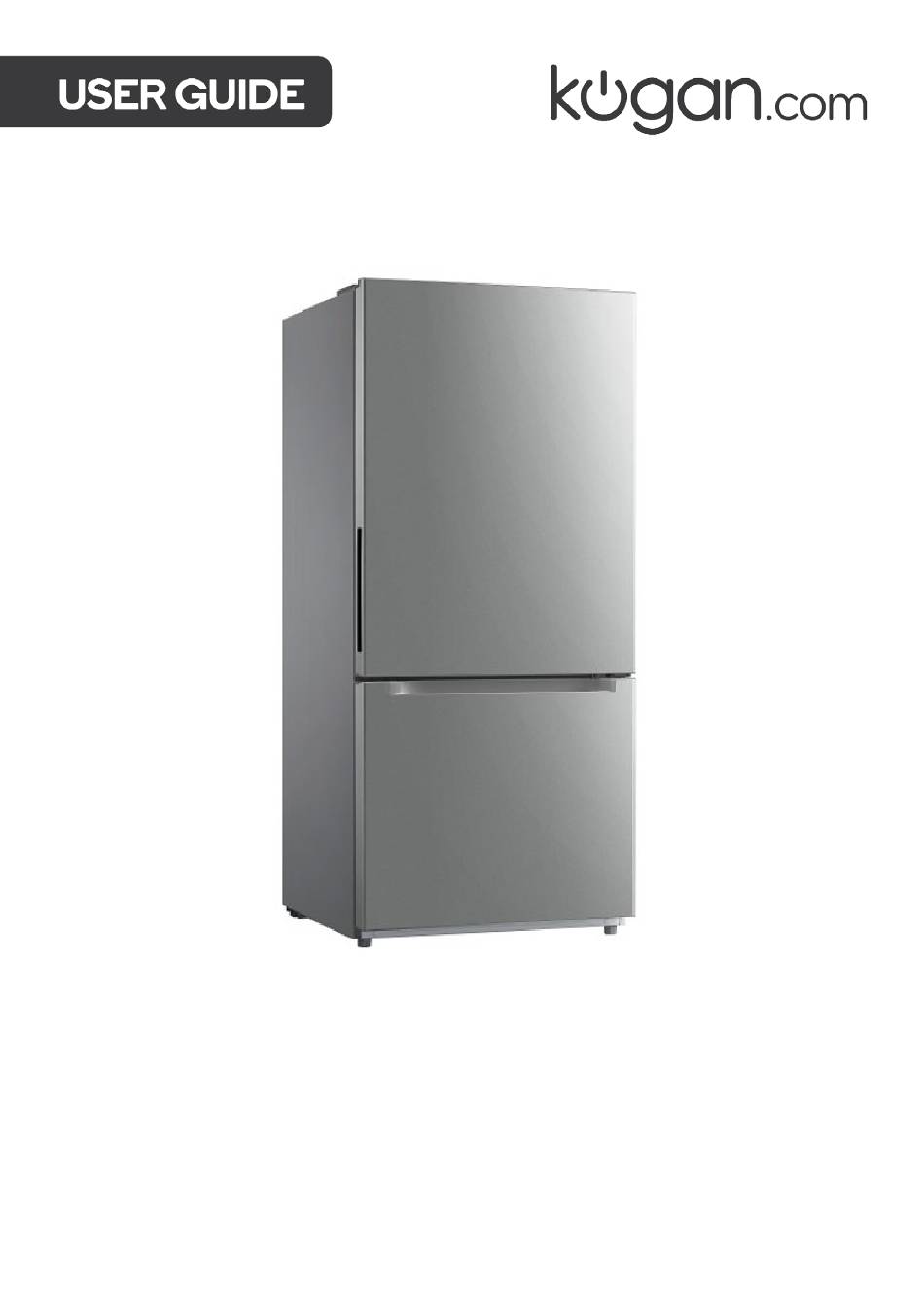

Page 1 529L BOTTOM MOUNT FRIDGE KAM529LBMFA & KAM529LBMFB...
Page 2: Table Of Contents
Safety & Warnings Overview Before First Use Installation Operation Cleaning & Care Troubleshooting Notes...
Page 3: Safety & Warnings
SAFETY & WARNINGS • Read all instructions carefully and retain this guide for future reference. • This appliance is intended to be used in household environments and similar applications such as: Staff kitchen areas in shops, offices and other working environments. Farmhouses and by clients in hotels, motels and other residential type environments.
Page 4 • Children should be supervised to ensure that they do not play with the appliance. • If the supply cord is damaged, it must be replaced by Kogan.com to avoid a hazard. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Page 5 • Do not store beverages or other liquid contained in bottles or enclosed containers in the freezer. Bottles or enclosed containers may crack. • Do not change the lights in the fridge. If the light goes out, contact help.Kogan.com for support.
Page 6: Overview
OVERVIEW Control panel Door tray Glass shelf Fruit and vegetable box Steel wire shelf Steel wire drawer Note: Some illustrations in this user guide may differ from your model.
Page 7 Display Screen Alarm/power button Fridge temperature button Freezer temperature button Indicator 1 Indicator 2 Indicator 3 Indicator 4 Indicator 5...
Page 8: Before First Use
BEFORE FIRST USE • Ensure the fridge is unplugged from the electrical outlet when adjusting the fridge and its accessories. • Remove the exterior and interior packaging, including bottom cushions, foam pads, tape, and protective film. • Wipe the outside of the fridge thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.
Page 9: Installation
INSTALLATION Space Requirements 135° 705mm 750mm 1350mm 1275mm Note: Ensure that 10cm of free space is left on both sides, 10cm at the rear and 30cm at the top, and that there is enough space for the drawers and doors to open.
Page 10 Connecting the Fridge to Power • Plug the power plug into an electrical outlet. Allow the fridge to sit for at least 2 hours before turning on the power. • After turning on the power, allow the fridge to run empty for 24 hours so it can cool to the appropriate temperature.
Page 11 Door Reversal Tools required (not provided): Phillips head screwdriver Putty knife/flat-blade screwdriver Masking tape 5/16” socket wrench Door reversal: Note: If you are not confident in performing the door reserving procedure, consult a qualified trade professional. Unplug your refrigerator and remove all food from the door shelves. Tape the door shut with masking tape.
Page 12 Remove the left cover plate and the right top hinge cover, then unscrew the screws, and remove the right top hinge. Keep the screws to reuse. Right top hinge cover Left cover plate Right top hinge Lift the fridge door up and away from the fridge. Unscrew the centre hinge screws.
Page 13 Unscrew the hinge shaft from the right side of the bottom hinge and move it to the left side, then secure the bottom hinge to the bottom left side of the fridge, using the screws you removed previously. Reattaching the bottom hinge Removing the bottom hinge Hinge pin Hinge pin...
Page 14 Remove the fridge door stopper and install it on the other side of the door. Remove the freezer door self-locking block and stopper and save them to reuse. Take out the left self-locking block and stopper from the accessory bag in the refrigerator and install on the left of the door.
Page 15 Put the freezer door down on the bottom hinge vertically, then take out the centre hinge for the other side from the accessory bag. Assemble the centre hinge. Attach the left centre hinge 10. Put the fridge door down on the centre hinge vertically, then take out the top hinge and cover from accessory bag.
Page 16 Energy Saving Tips • Do not place the fridge near stove tops, radiators, or other sources of heat. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. • Ensure there is sufficient ventilation at the base, sides, and back of the fridge. •...
Page 17: Operation
OPERATION Fridge Temperature • Press the fridge temperature button to adjust the temperature in the fridge. • As you cycle through the 3 fridge temperature settings, the corresponding indicator will illuminate. • When first powered on, the fridge will be on the middle temperature setting. 8°C 4°C 2°C...
Page 18 Standby Mode • Press and hold the alarm/power button for 3 seconds to enter standby mode. The fridge, freezer and display will all turn off. • Press and hold the alarm/power button for 3 seconds to return to normal operation. Quick-freezing Mode •...
Page 19 Storing Food Freezer: • The freezer is used to freeze food, store frozen food and make ice cubes. • Do not put fresh and frozen food next to each other. The frozen food may thaw. • When freezing large amounts of fresh food (such as meat or fish), divide it into small pieces before putting it in the freezer to speed up freezing.
Page 20: Cleaning & Care
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Kogan.com. • Do not try to repair, disassemble or modify the appliance by yourself. If repair is needed, contact Kogan.com.
Page 21 Cleaning the Door Shelves • According to the arrows in the figure below, use both hands to squeeze the shelf and push it upward to take it out. • After cleaning the shelf, reinstall it on the door in accordance with your height requirements.
Page 22 Cleaning the Fruit and Vegetable Box Remove the contents of the box. Hold the handle of the box and pull it out completely until it stops. Lift the box up and remove it by pulling it out. Push the wheels upward to detach them from the grooves. Clean the fruit and vegetable box, wheels or grooves as needed.
Page 23 Defrosting Although this appliance automatically defrosts, a layer of frost may occur on the freezer’s interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, it will need to be defrosted. To do so: Remove existing food from the freezer and fridge.
Page 24: Troubleshooting
TROUBLESHOOTING If the solutions below are unsuccessful, contact help.Kogan.com for support. Problem Possible Cause and Solution • Check if the appliance is connected to power and if the plug is making proper contact. • Check if the voltage is too low.
Page 25 Error Codes The following error codes on the display screen indicate a fault in the fridge or freezer. Even if the fridge and freezer are still operating correctly, contact help.Kogan.com for support. Error Code Indicator Description Indicators 1 &...
Page 26: Notes
NOTES...
Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
