Adaptive Technologies Group FP-DX12-2X1 Installation Manual

Installation Guide
Figure 1
1 of 3
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com

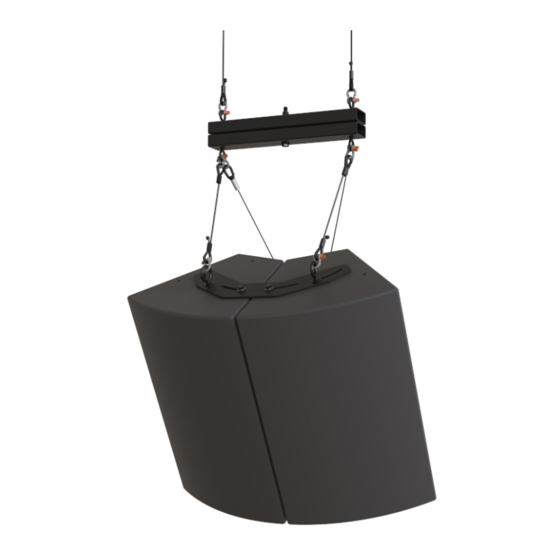

The FP-DX12-2X1 planar array kit gives designers, contractors and audio
consultants the ability to join two Fulcrum DX12 series speakers in a tight
pack or up to 60° splayed configurations. The FP-DX12-2X1 Kit allows
the speaker cabinets to be adjusted relative to each other to achieve the
optimum sound directivity. A label with angle indicator are provided to
easily adjust the splay angle from tight pack to 40° at an increment of 2.5°
between speakers.
Note to installers
Due to the wide variety of wall structures, materials and mounting methods,
these instructions assume that the installing contractor will exercise proper
judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of supporting 5
to 10 times the actual applied load. Always use a back up safety system such
as a safety cable.
To assure a trouble free installation, read through and follow these instructions
carefully before beginning. If you have doubts about
the integrity of the structure you are mounting to or you are not
sure about the proper hardware to use, consult a structural and/or hardware
specialist.
Follow these instructions for the most efficient and safest mounting results.
2 pcs Joiner plate
2 pcs M01x1.5-35mm long eyebolt
2 pcs M10x1.5-50MM long eyebolt
8 pcs Hex bolt, M10x1.5-50MM long
10 pcs M10 Flat washer
8 pcs M10 SPlit Washer
1 pc Instruction sheet
Planar Array Orientation:
Step 1:
Remove and discard the screws from the top and bottom of the speaker
that will be used for attaching the joiner plate.
Step 2:
Flip the speakers so the bottom is facing up. Position speakers side by

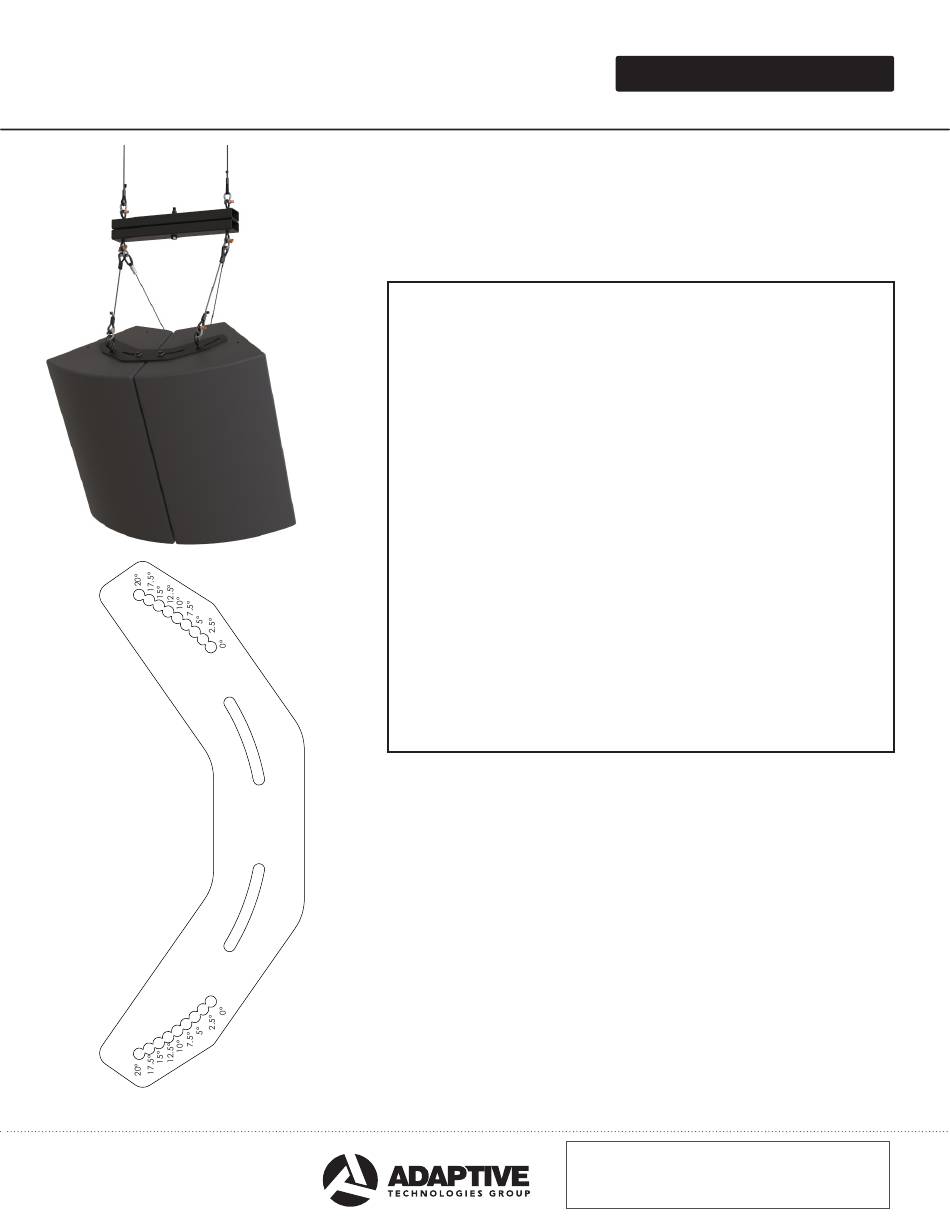

side. Determine the desired splay angle between speakers (Figure 1.)
Attach a joiner plate to the bottom side of the speakers using supplied M10
screws and flat washers (Figure 2.) Do not permanently tighten until all
plates are installed.
FP-DX12-2X1
2 Wide Planar Array Kit
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension loudspeakers requires experienced
professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
REV00-04252023
