ELEVATE ABACO Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

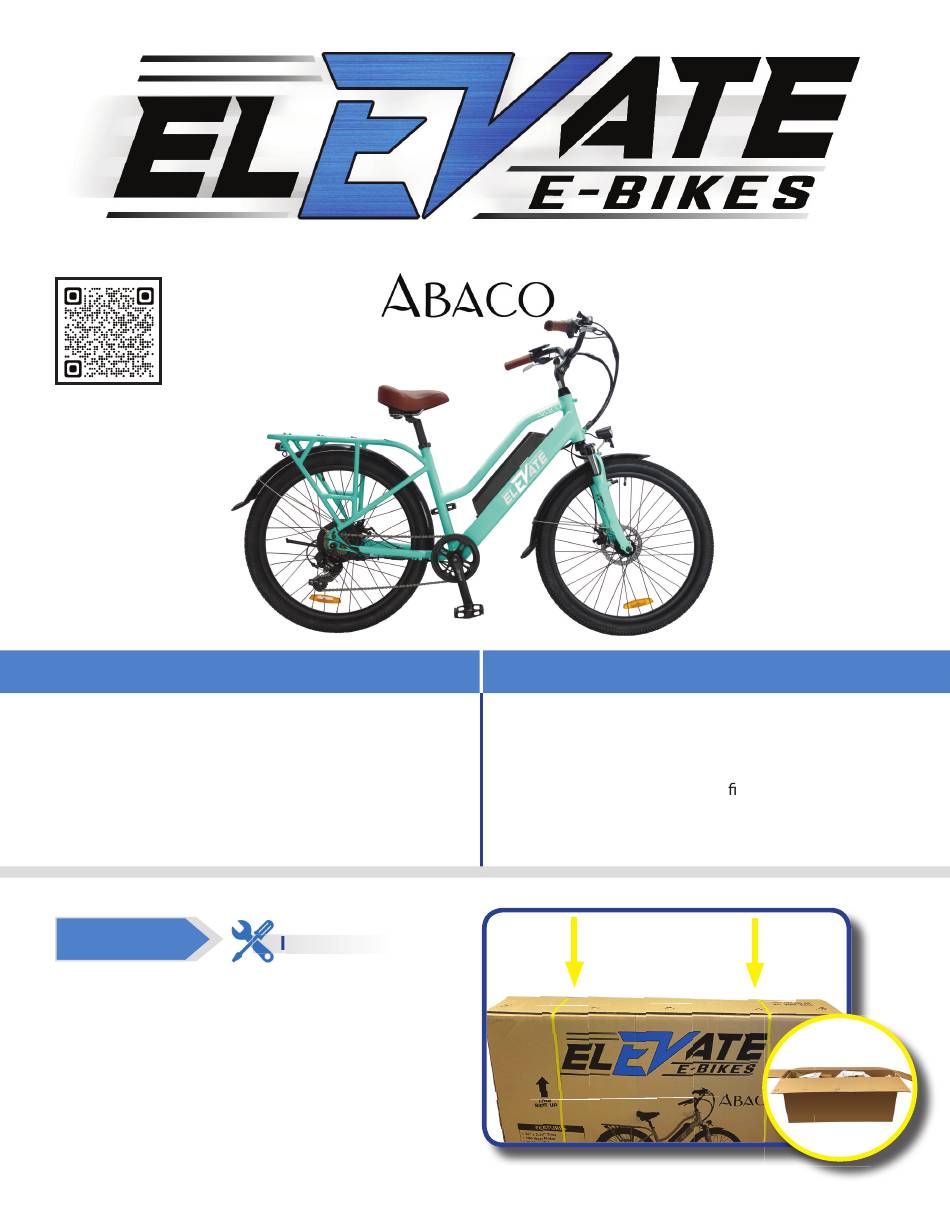

Tools Needed
#3 Allen head for screen adjustments
#4 Allen head
#5 Allen head
#6 Allen head
Side cuts
15mm wrench or socket and 3/8 rachet
STEP 1
Start by cutting the outer shipping bands.
Carefully open the top lid to avoid any staple
ends.
Sidecuts
Sidecuts
Included
Manual
Battery
Charger
Keys speci c for battery

Advertisement

loading
Need help?

Need help?

Do you have a question about the ABACO and is the answer not in the manual?

Questions and answers

Summary of Contents for ELEVATE ABACO

  • Page 1 Tools Needed Included #3 Allen head for screen adjustments Manual #4 Allen head Battery #5 Allen head Charger #6 Allen head Keys speci c for battery Side cuts 15mm wrench or socket and 3/8 rachet STEP 1 Sidecuts Sidecuts Start by cutting the outer shipping bands. Carefully open the top lid to avoid any staple ends.
  • Page 2 STEP 2 Remove the accessories box and seat box. STEP 3 Remove the bike from the box Note: Due to the packing, an assistant might be needed for this step. STEP 4 Discard the Disc Brake shipping cover. STEP 5 Sidecuts Sidecuts Using Sidecuts, remove the zip ties from the...
  • Page 3 STEP 6 Carefully remove the front tire from the bike by sliding it directly forward, to avoid damaging the spokes or pedal arm. Then remove the front fender from the tire and set both aside. STEP 7 #6 Allen Head #6 Allen Head Remove the Seat and Seat post from packaging material.
  • Page 4 STEP 10 Trim Ring Remove any remaining packaging and any packaging left on the handlebar. Grab the trim ring and the handlebar stem from the accessory box. Note: Set Stem Plug aside for later. STEP 11 #6 Allen head #6 Allen head Slide the trim ring onto the handlebar stem.
  • Page 5 STEP 14 #6 Allen Head #6 Allen Head Use the grooves in both the handlebar and inside the mounting clamp to help position the handlebar. Retighten the clamp and bolts when desired location is set. STEP 15 Sidecuts Sidecuts Remove the bike keys using a pair of Sidecuts. These are normally attached to the front handlebar harness or rear motor.
  • Page 6 STEP 18 #6 Allen head #6 Allen head Attach the front headlight and the front fender to the front shock mount using the factory bolt. Note: Slotted holes are there if further adjustment is needed. STEP 19 #6 Allen head #6 Allen head Tighten the factory bolt to 90%, then adjust the two componenets so they are square.
  • Page 7 STEP 22 #15mm wrench #15mm wrench Attach the front tire to the front forks. The disc brake will slide directly into the brake calipers as shown. Secure using a 15mm wrench. Tighten to 40 newton meters. Note: Inspect Rear Wheel Mounting nut to ensure proper torque speci cations.

  • Page 8: Installation Complete

    STEP 26 Adjust the front fork sensitivity by adjusting the dial to your desired setting. Note: When adding air to the tires, be sure to match psi levels with what is inscribed on the tire. STEP 27 To remove your battery insert the key into the mount and turn clockwise.
