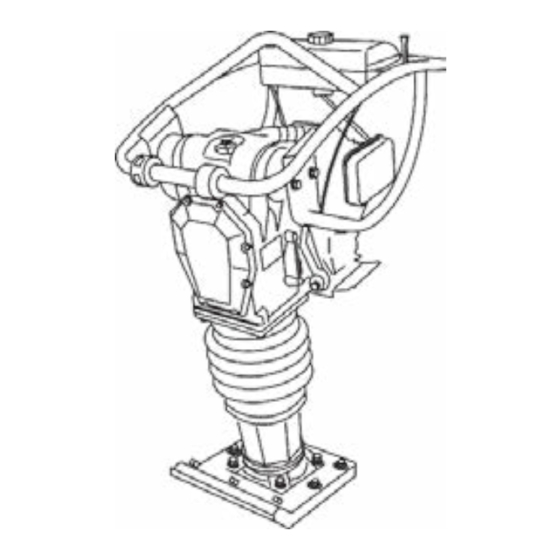

- Page 1 OWNER’S MANUAL Assembly & Operating Instructions TAMPING RAMMER TRM72.V24 BIGGER BOYZ TOYZ...
-
Page 2: Table Of Contents
REPLACEMENT PARTS LIST ................16 Before initiating a product return, kindly reach out to our dedicated Customer Support Department at Bigger Boyz Toyz. We are here to assist you. 72FWS GUIDE CYLINDER AND FOOT ASSY (A) ..............16 72FWS CRANKCASE AND ENGINE ASSY (B) ..............18 Phone: 02 4257 4787 72FWS TANK AND HANDLE ASSY (C) .................20... -
Page 3: Safety & Alert Symbols
Your Responsibility—Restrict the use of this power machine to persons who have read, understood, and will follow the warnings and instructions in this manual and on the machine SAVE THESE INSTRUCTIONS! BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 4: General Safety
The purpose of this switch is to equipment modifications. with flammable liquids. When refuelling, shut down the engine of the equipment. stop the engine and allow it to cool. BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 5: General Information
Understanding and familiarising oneself with the oil fill plug opening (Fig 2). The bath these controls is essential for the proper and contains approximately 1000 cc. safe operation of the tamping rammer. BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 6: Check Engine
Fig 4 Fig 5 2. Insufficient oil levels may lead to engine seizure, given the increased consumption Fig 8 during operations. Fig 10 BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 7: Stop Engine
Remove the element from the pre-cleaner » (Fig 12) at the top of the crankcase Fig 14 Foot Housing Drain Plug (body side) and clean it with cleaning oil (kerosene). BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 8: Troubleshooting
Engine overheats Combustion chamber? Clean or replace crankcase. Exhaust or muffler clogged with Clean or replace muffler. carbon. Spark plug heat value incorrect? Replace spark plug with correct type spark plug. BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 9: Replacement Parts List
German bellows Inner spring 72FWS-A38 O-ring 160*4 Outer spring 72FWS-A39 Socket head bolt 72FWS-A17 Nut M18×1.5 M10×35 72FWS-A18 Piston end 72FWS-A40 Guide cylinder 72FWS-A19 Stopper,lower 72FWS-A41 O-ring 160×4 72FWS-A20 Spring cylinder BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 10: 72Fws Crankcase And Engine Assy (B)
72FWS-B27 Clutch drum 72FWS-B54 Seal strip, extra air 72FWS-B28 Lock washer filter 72FWS-B29 Bolt 8*20H,SW 72FWS-B56 Flat gasket φ8 72FWS-B32 Bolt 6*18H,SW 72FWS-B57 Spring washer φ8 72FWS-B33 Hex bolt M10*50 BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... -
Page 11: 72Fws Tank And Handle Assy (C)
Hex Bolt M8*20 72FWS-C9 Gasket φ8 72FWS-C10 Fuel tank 72FWS-C11 Nylon nut M8 72FWS-C12 Cap assy, tank 72FWS-C16 Fuel cock assy 72FWS-C17 Hose band 9.5D 72FWS-C18 Fuel hose 72FWS-C19 Hose band 9.5D BIGGER BOYZ TOYZ • BBTA.COM.AU BBTA.COM.AU • BIGGER BOYZ TOYZ... - Page 12 BIGGER BOYZ TOYZ BBTA.COM.AU Copyright © Bigger Boyz Toyz Australia Unit 2/3 Delta Place Albion Park Rail NSW 2527 • 02 4257 4787...
