Summary of Contents for Excel GS-L0118

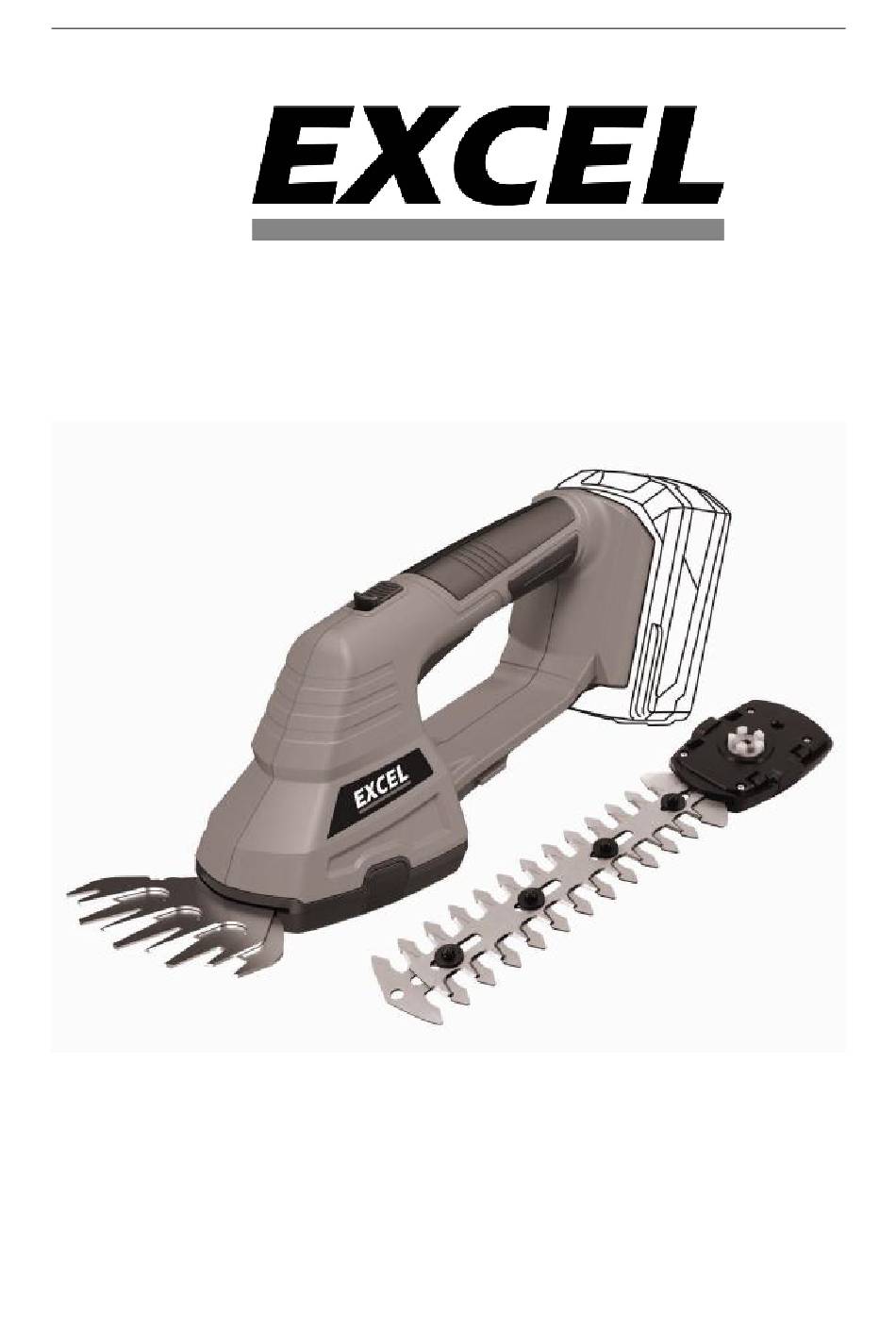

- Page 1 Original Instructions 18V Cordless hedge trimmer & grass shear 11786/GS-L0118 INSTRUCTION MANUAL...
-
Page 2: Description Of Symbols
Original Instructions DESCRIPTION OF SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be perfectly understood. The warning themselves do not prevent the risks and can not be a substitute for proper methods of avoiding accidents. - Page 3 Original Instructions Noise output level LWA Degree of protection against water: IPX1. The shrub shears must not be used together with the telescopic handle. On battery Do not expose the battery to water Do not expose the battery to fire or incinerate Do not expose the battery to high temperatures (above 40°C) On charger Class II machine –...
-
Page 4: General Safety Warnings
Original Instructions GENERAL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 Original Instructions c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
- Page 6 Original Instructions b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
- Page 7 Original Instructions IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operation practices 1. Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
-
Page 8: Intended Use
Original Instructions g) Take care against injury to feet and hands from the cutting means. h) Always ensure that the ventilation openings are kept clear of debris. In case of accident or breakdown immediately stop the machine. Protect the power tool against heat, e.g. against continuous intense sunlight, fire, water and moisture. -
Page 9: Description Of Parts
Original Instructions DESCRIPTION OF PARTS 1.Safety lock-off 2.ON/OFF button 3.Grass cutter blade 4.Blade release mechanism 5.Grass Blade guard 6.Pruning Blade guard 7.Shrub cutter blade 8.Battery pack(excluded) -
Page 10: Technical Data
Original Instructions TECHNICAL DATA Type: GS-L0118 Rated voltage 1200rpm Hedge trimmer cutting length 200m Hedge trimmer teeth distance Grass shear cutting width 100mm Hedge trimmer sound pressure(L 63.2 dB(A) K=3 dB(A) Hedge trimmer sound power (L 83.2 dB(A) K=3 dB(A) Hedge trimmer Vibration a 2.6 m/s... - Page 11 Original Instructions The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job.
- Page 12 Original Instructions a. Charging the battery This lithium-ion battery pack is shipped partially charged. Before using it the first time, fully charge the battery pack. A fully discharged battery pack with a temperature between 5℃ and 35℃ will charge in about 30-140MIN(See section”Specifications”). CH-1802A: •...
- Page 13 Original Instructions Unpacking -Open the packaging and remove the device care-fully. -Remove the packaging material as well as the packaging and transport bracing (if available). -Check that the delivery is complete. -Check the device and accessory parts for trans-port damage. ATTENTION The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts, there is a risk of swallowing and...
-
Page 14: Before Starting The Equipment
Original Instructions Important! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes,hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways. Or to chop up tree or hedge clippings. -
Page 15: Operation
Original Instructions would prevent the tool from switching off automatically and result in high risk of injury. Under no circumstances are you to use the shrub cutter with the telescopic long handle fitted. Operation Fig.4 The area to be cut must first be cleared of stones and other solid objects. The safety lock-off (Fig.4a / Item 1) prevents the tool being started unintentionally. -
Page 16: Cleaning, Maintenance And Ordering Of Spare Parts
Original Instructions When you notice a drop in cutting performance, re-charge the tool immediately so that the battery does not become fully discharged. Changing the blades Caution! Risk of injury! First make sure the machine is turned off, then press the left and right buttons of the blade fixing plate(Fig.4b / item 1), slowly pull out the blade assembly(Fig.4b / item 2). - Page 17 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
