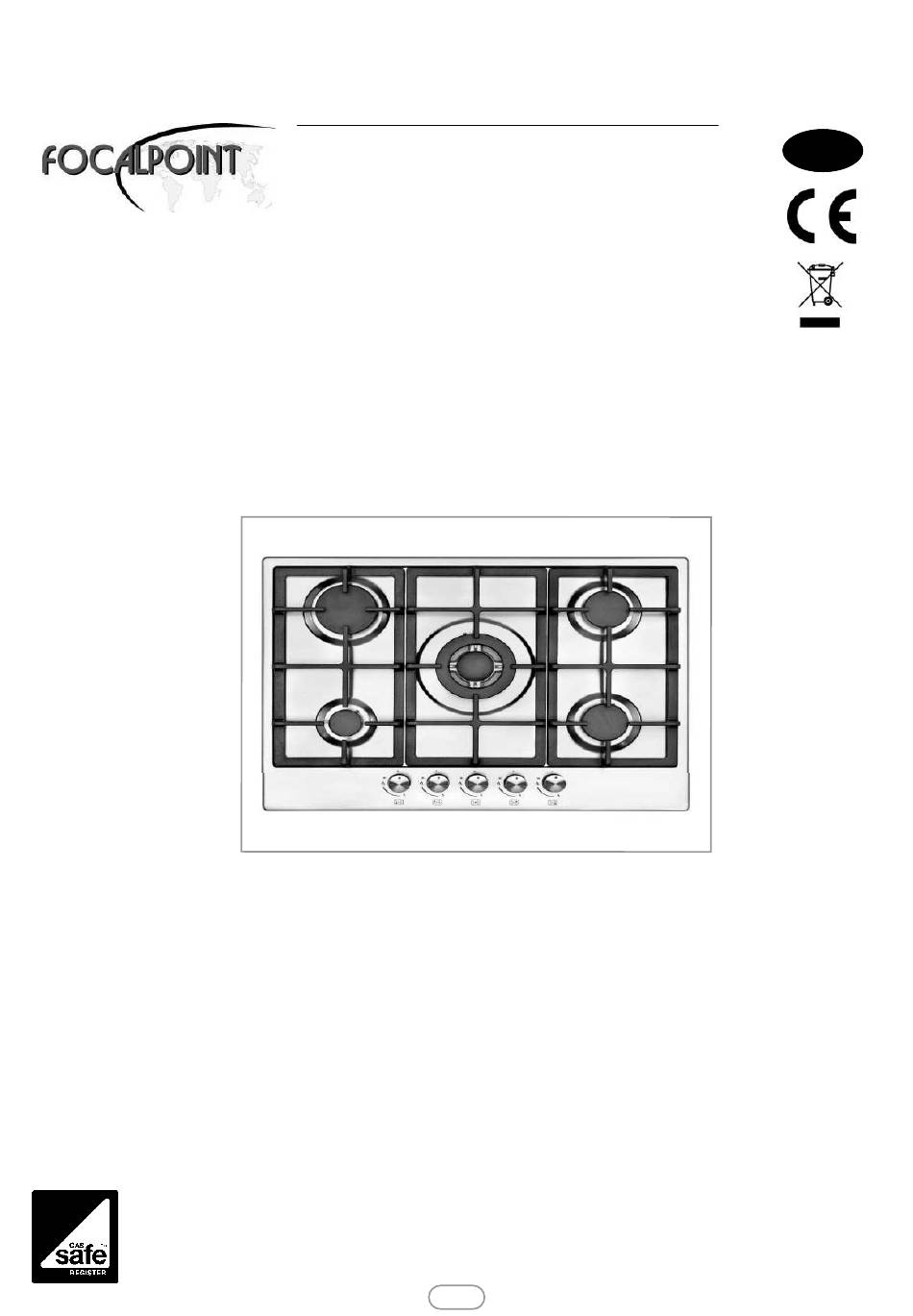

INSTALLATION & USER INSTRUCTIONS
Focal Point Fires Ltd.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
email : sales@focalpointfires.co.uk
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires Ltd. You are not
per-mitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires Ltd.
LPG BUILT-IN GAS HOB
MODELS COVERED BY THESE INSTRUCTIONS
70cm Stainless Steel Built In Hob
70cm Black Built In Hob
OAO 7502
OAO 7502 70cm Stainless Steel
MODEL SHOWN:
Built In Hob
Image used for illustration purposes only
All instructions must be handed to the user
for safekeeping.
1
GB IE
Revision A - 12/19
© 2019 Focal Point Fires Ltd
Advertisement
Table of Contents
Summary of Contents for FocalPoint OAO 7502
- Page 1 Tel: 01202 499330 Fax: 01202 499326 www.focalpointfires.co.uk email : sales@focalpointfires.co.uk OAO 7502 70cm Stainless Steel MODEL SHOWN: Built In Hob Image used for illustration purposes only IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE...
-
Page 2: Table Of Contents
I N S T A L L A T I O N I N S T R U C T I O N S GB IE Section Contents Page No. Section Contents Page No. Important Notes Gas Connection Environmental Using The Hob Appliance Data Replacing The Injector Installing The Appliance... -
Page 3: Appliance Data
Destination Operating/Inlet Auxiliary Semi- Rapid Rapid Country Type Pressure (±2.0 mbar) Power Inputs 0.30kW 0.44kW 0.75kW 1.50kW 28 - 30mbar OAO 7502 GB - IE 1.00kW 1.70kW 2.60kW 3.80kW 37mbar Injector 0.50 0.65 0.85 0.97 Power Inputs 0.30kW 0.44kW 0.75kW 1.50kW... - Page 4 4.0 INSTALLING THE APPLIANCE GB IE lmportant These instructions shall be applied by qualified personnel. Equipment shall be installed in accordance with the applicable directives in a correct way. Before performing any operations, elec- trical connection of the equipment shall be disconnected. Installation of the equipment on a workbench Your cooker may be installed on any kind of worktop which is capable of coping with at least 90°C.
-
Page 5: Room Ventilation
4.1 ROOM VENTILATION GB IE The room containing the appliance should have an air supply in accordance with the current version of BS 5440:part 2: (IS5813 for the Republic of Ireland). All rooms require an openable window, or equivalent, and some rooms will require a permanent vent as well. For room volumes up to 5m³... -
Page 6: Electrical Connection
4.3 ELECTRICAL CONNECTION GB IE There are no internal user serviceable parts. Check regularly for security of wall fixings as appropriate. Also check security of supply cable and connections. If the supply cable becomes damaged, it must be replaced by a service agent or competent person, such as a qualified electrician. This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. -
Page 7: Replacing The Injector
5.0 USING THE HOB - CONTINUED GB IE Pans: For optimum safety and performance, we recommend the use of flat bottomed pans with a base diameter shown below; Burner Minimum diameter Maximum diameter Auxiliary 60mm 140mm Semi rapid 160mm 200mm Rapid 200mm 220mm... -
Page 8: Cleaning And Maintenance
7.0 CLEANING AND MAINTENANCE GB IE Any cleaning agent used incorrectly may damage the appliance. Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock or damage to the appliance. Always let the cooker cool before cleaning. Some cooking operations generate considerable amount of grease, this combined with spillage can become a hazard if allowed to accumulate on the cooker through lack of cleaning. -
Page 9: Guarantee - Terms And Conditions
9.0 GUARANTEE - TERMS AND CONDITIONS GB IE Registration is not required. 2 Year Guarantee Terms and Conditions The 2 year guarantee is only applicable to purchases made through an authorised stockist/retailer. For all gas ovens purchased the 2 year guarantee commences from the date of purchase, provided that the following 4 terms and conditions are adhered to: 1.
