Sensor ML0074 Installation Instructions

ML0074 2 x500kg Surface Mount Electro Lock
Installation Instructions
Product Details:

Monitored Maglock

Surface Mounted

Armature Plate Included

Corrosion Resistant

No Mechanical Wear

Easy Installation

Recommended for Interior Use

Fail Safe: door will unlock when powered off

Holding force: 2 x 500kg

No Residual Magnetism

Built In Varistor: Built in electronic electronic
protection to eliminate EMF

Dimensions (L x W x D) 539 x 66 x 41 mm

Armature Dimension (L x W x D) 185 x 60 x 12
mm

Power Supply: 12/24V dc

Power Absorption:
12V DC = 550mA
24V DC = 275mA
Electrical Connections:
12 V dc SETUP
TERMINAL CORRESPONDANCE
BLOCK
+ 12V OR 24V
-
- 0V
N.C NC (NORMALLY
CLOSED)
COM COMMON
N.O NO (NORMALLY OPEN)
The NO/NC signal only switches when the door is
closed with power to it ON
www.sensoraccess.co.uk

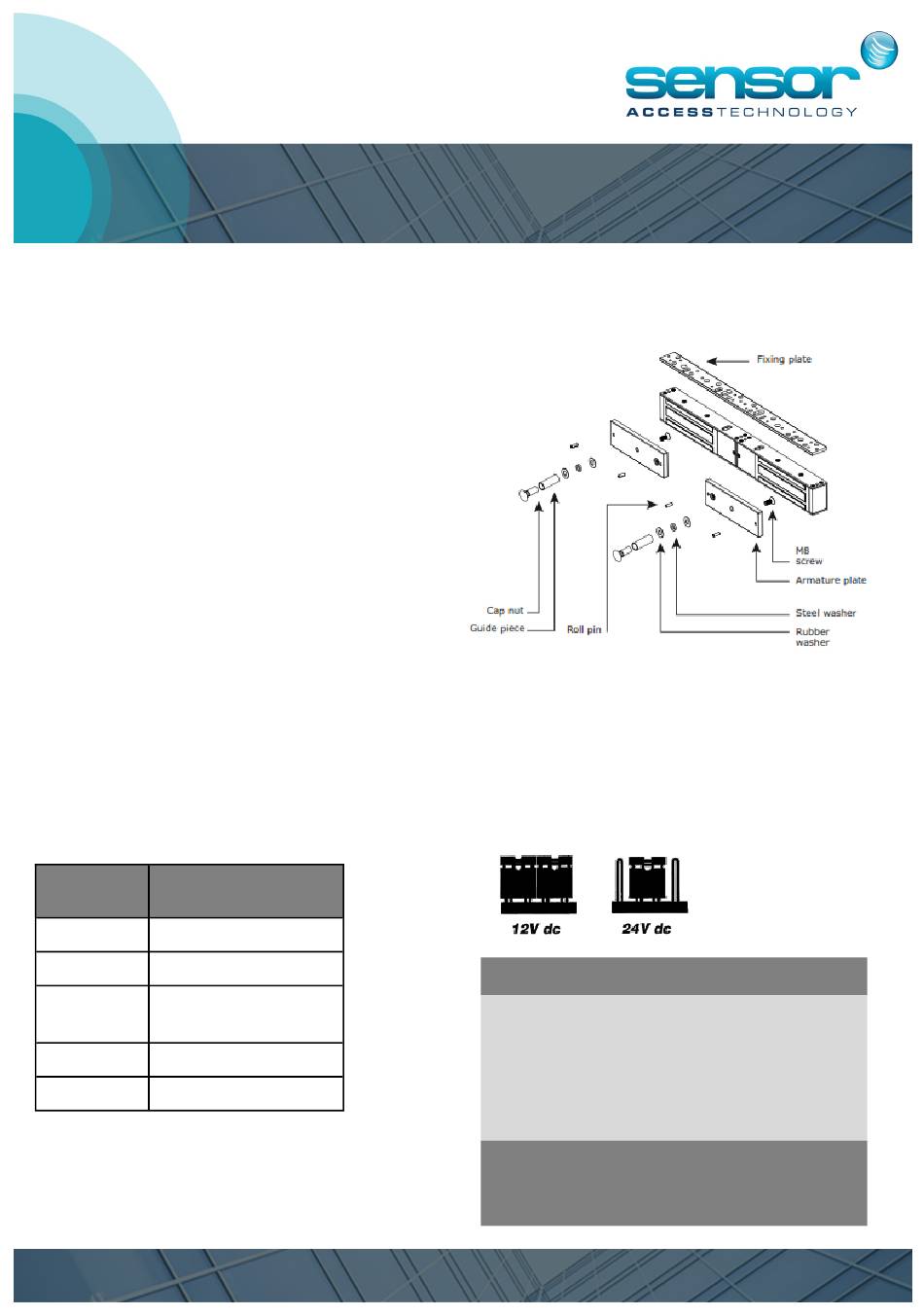

Installation:
Built in PCB board
IMPORTANT NOTICE

Check the jumper position before connecting the
lock to the input current. A wrong position could
damage the lock. This type of damage is not cov-
ered by warranty.

Make sure the magnet and the armature meet
evenly over their entire mating surfaces
The armature plate must be able to pivot slightly about its
centre mounting screw to compensate for and door misa-
lignment
