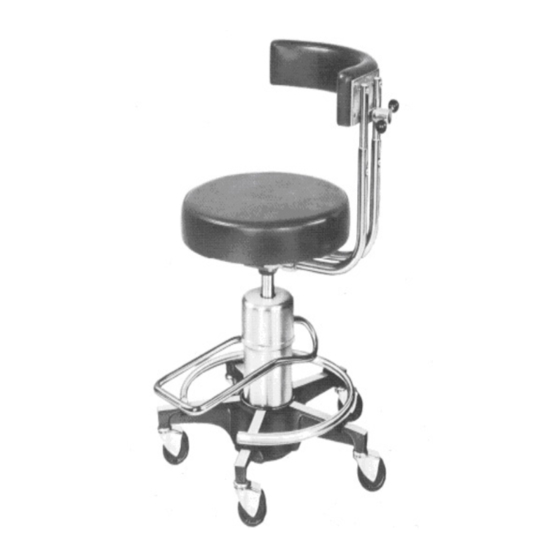

HS 500 Series Owner's Manual

Stools
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND
OPERATING INSTRUCTIONS
EN FR
OWNERS MANUAL
SERIES 500
STOOLS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HS 500 Series

Summary of Contents for HS 500 Series

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS EN FR OWNERS MANUAL SERIES 500 STOOLS...
  • Page 2 MODEL/SERIAL NUMBER For your future reference, mark the model num- ber or serial number in the space provided. Serial: 050000BMMYYXXX Where MMYY indicates the month and year manufacture QUALITY MANAGEMENT SYSTEM REGISTERED TO ISO 13485 M A D E I N AME R I C A Reliance®...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INFORMATION SAFETY SYMBOLS IMPORTANT INFORMATION ........3 “DANGER”, “WARNING”, or “CAUTION” 1. INTRODUCTION............4 The exclamation point within an equilateral triangle is intended to alert the user to 2. INSTALLATION............4 the presence of important operating and 2.1. Unpacking............4 maintenance (servicing) instructions in this Installation and Operating Instructions.

  • Page 4: Introduction

    1.1. This manual contains information applicable only 2.1.1. Open the shipping carton carefully and record to the Reliance® Models 500 Series stools. any shipping damage to the carton or to the contents. 2.1.2. Remove all contents from the shipping carton and note that “knocked-down”...

  • Page 5: Operating Instructions

    3.1.1. A pedal operated hydraulic lift is used to raise and “NOTE”- After support bar has been lower the seat in the Reliance® Series 500 Stool. To raise inserted into back support per the assembly the seat, push downward on the pedal lever. Note that instructions (section 2.2), insert stop screw a stop can be felt at the bottom of the pumping stroke.

  • Page 6: Foot Rest Ring Spacers

    3.4.2. Lubricate the curved body support mecha- 4. Replacement of Parts nism of the Model 556 only if it operates stiffly or squeaks. Introduce a few drops of light oil into 4.1. When ordering replacement parts, please the slots of the back support casting holding the specify the model number of the stool and the proper support tubes under the stool seat.
  • Page 7 RELIANCE MODEL 540 ® HYDRAULIC STOOL, AND BASE PARTS FIGURE 4 IN-500...
  • Page 8 ITEM PART NO. DESCRIPTION See Table 1 - Lifts 0728399 Lockwasher-Split-5/16 0707299 5/16 x 1-1/4 Hx. Hd Cap Screw 0722899 1/4-20 x 3/8 Set Screw 0712799 8-32 Mach. Screw 0644592 Base Sub-Assembly Casters - See Table 2 0592499 “O” Ring 0643680 Footrest 0636299...
  • Page 9 RELIANCE 546 STOOL TOP ® REPLACEMENT PARTS FOR BASE SEE FIG. 4 FIGURE 5 IN-500...
  • Page 10 ITEM PART NO. DESCRIPTION 1381273 UPH. Seat - Standard Foam* 1381373 UPH. Seat - Sensa Foam* 1376499 R.H.MS., 1/4-20 X 1.12 0781680 Thumb Screw 2343080 Back Support 0728299 Lockwasher, .25 Split 1288799 Back plate 1987599 Knob, 5 Lobe, 3/8-16 Insert 2342899 Washer, 3/8, B.O.
  • Page 11 RELIANCE 548 STOOL TOP ® REPLACEMENT PARTS FOR BASE SEE FIG. 4 FIGURE 6 IN-500...
  • Page 12 ITEM PART NO. DESCRIPTION 1381473 UPH. Seat - Standard Foam* 1381573 UPH. Seat - Sensa Foam* 1376499 R.H.MS., 1/4-20 X 1.12 0781680 Thumb Screw 2343080 Back Support 0728299 Lockwasher, .25 Split 1288799 Back plate 1987599 Knob, 5 Lobe, 3/8-16 Insert 2342899 Washer, 3/8, B.O.
  • Page 13 RELIANCE 556 STOOL TOP ® REPLACEMENT PARTS FOR BASE SEE FIG. 4 FIGURE 7 IN-500...
  • Page 14 PART NO. DESCRIPTION ITEM 0283699 1/4-20 x 1-1/4 Socket Head Cap Screw 0729999 Washer, 1/4 Flat 0732199 Retaining Ring 0717799 10-24 x 1 Flat Head Machine Screw 0644192 Back Rest Swivel Ass’y. 0527899 1/4-20 Lock Nut 0645392 Seat Support Ass’y 0502092 Support Tube Ass’y 0712180...
  • Page 15 CLEANING AND MAINTENANCE Cleaning the Upholstery “A TTENTION” - Ces dissolvants sont When cleaning upholstery, it is suggested that you use all hautement inflammables. Prenez le soin recommended commercial cleaning agents in an inconspicu- approprié dans le nettoyage et informez le ous spot to check for potential damage to the upholstery personnel dans la zone du danger.
  • Page 16 PARTS LIST RELIANCE® MODEL 500 SERIES STOOL “Note” : When ordering parts, please: 1. Advise dealer or factory of model and serial number of unit. These numbers are on the label that is located at rear, on back cover, of base unit. 2.

  • Page 17: Limited Warranty

    LIMITED WARRANTY The Reliance® product must be used only for the purposes and in the manner described in the literature distributed with the product. The products are warranted against defective materials and workmanship for a period of one (1) year from date of installation. Products or parts thereof will be repaired or replaced as required at Reliance®...
  • Page 18 (NOTES) IN-500...
  • Page 19 (NOTES) IN-500...
  • Page 20 MADE IN AMERICA Reliance Medical Products, Inc. 3535 Kings Mills Road Mason, Ohio USA 45040-2303 1-800-735-0357(Customer Service) 1-800-735-0358 (Technical Service) (513) 398-3937 Http://www.reliance-medical.com P/N 11306 REV M © Copyright 1992 Printed in U.S.A. Revised 08-2018-9059...
