Fike 10-2648 Quick Start Manual

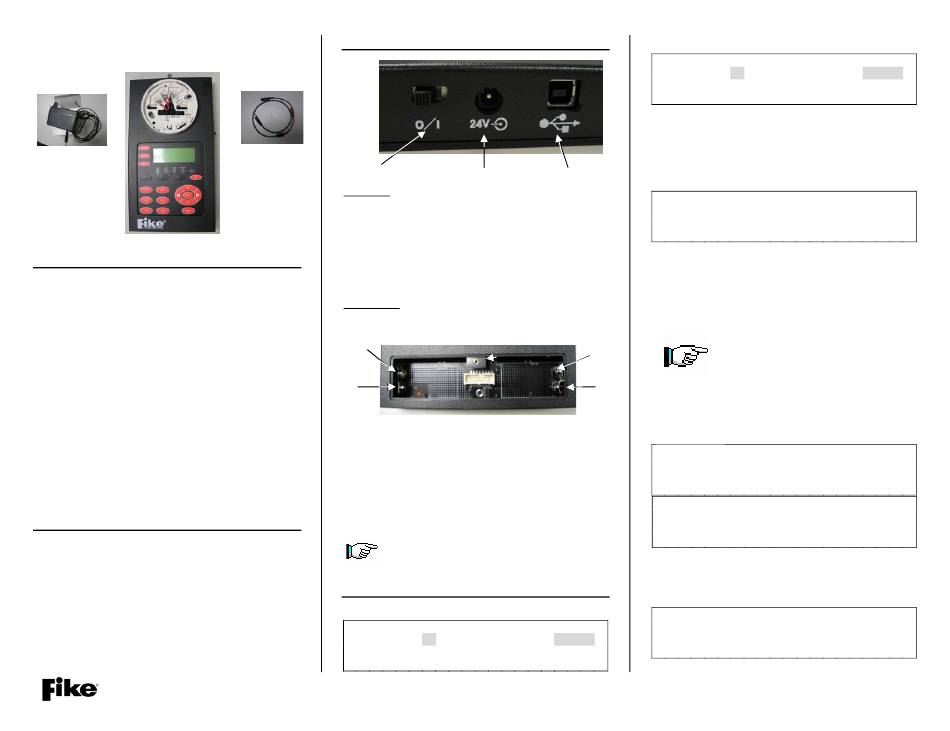

10-2648 CyberCat/Cheetah Xi Addressable
Device Address Hand Held Programmer
120VAC/24VDC
Adaptor Xformer
HH Programmer
DESCRIPTION
The Hand Held Programmer (HH Prog) provides the ability
to address the Fike CyberCat or Cheetah Xi addressable
device. Purchase of the HH Prog includes all items shown in
the pictures above. The HH Prog contains the same
operating code as the CyberCat / Cheetah Xi and can be
used as a training device and/or troubleshooting tool. This
instruction sheet steps through Addressing the Device,
Reading the Device, and Addressing the Device with C-Linx
Software. Refer to the appropriate control panel manual for
accessing any of the other functions or menu operations:
06-356 Cheetah Xi / 06-369 Cheetah Xi 50
06-326 CyberCat / 06-368 CyberCat 50
The CyberCat and Cheetah Xi addressable devices are
intelligent and maintain their OWN operating configuration.
The Device Address menu will ONLY change the address. It
does not change the configuration parameters. The Device
Replace or other methods should be used to change the
configuration/operation parameters (preferably with C-Linx
software). Any time a device is changed, it should be re-
tested for proper operation.
SPECIFICATIONS
Power Supply 120VAC 60 Hz / 24VDC 400mA
(Tip +, shell – for 24VDC plug)
OR 2 each 9V batteries
Dimensions 6" x 2" x 12"
Weight Approx. 3 lbs. (1.4 kg) total
HH Prog 1.6#(0.72 kg);
AC xfrmr 0.15#(0.07 kg);
BNC lead 0.9#(0.41 kg)
Temperature
32°F to 120°F (0°C to 49°C )
Operating Humidity 93% RH max., non –condensing
Operating Instructions
Hand Held Programmer
POWER INSTRUCTIONS
BNC – Clips
connector
Power Switch
AC Power:
The HH Prog
120VAC/24VDC Adaptor Transformer:
1. Plug the Transformer into an available 120VAC power
connection.
2. Plug in the 24VDC plug to the 24V jack located on the
right side of the HH Prog.
3. Power up the programmer by moving the Power Switch
from I to O. (Power down by unplugging the plug or
switch to I if no batteries are present).
9V Batteries:
The HH Prog can also be powered from 2 each 9VDC
batteries (not included):
+
-
1. Turn over the HH Prog and removed the Phillips head
screw on the back of the unit.
2. Remove the battery cover plate.
3. Install the 2 each 9V batteries, observing proper polarity
as shown on the terminals and the enclosure battery
plugs.
4. Power up the programmer by moving the Power Switch
from O to I. (Power down by switching to O).
NOTE:
approximately 6-8 hours with 2 good 9V
batteries.
ADDRESSING A DEVICE
The HH Prog powers up into the CyberCat/Cheetah Xi
Maintenance – Device Address Menu after a brief start-up:
S E L E C T
L O O P : 1
W A I T
> > > > > > > > > > > > > > > > > > > >
#06-390
Rev. 0, 04/2007
USB Cable
24VDC Plug
is recommended to be powered with the
The HH Prog will operate
A D D R E S S
A D D R E S S : 0 0 1
F O R L O O P S T A R T :
Wait for the screen to display the Device Address Menu:
S E L E C T
L O O P : 1 A D D R E S S : 0 0 1
P R E S S E N T E R
1. Press +/- buttons to the desired Loop number (1-4).
Use the <> buttons to move the cursor under the
Address range and the press +/- buttons to the desired
device address number (1-254).
2. Press the ENTER button. A new screen will display
stepping you through the device address process.
C O N N E C T D E V I C E
A D D R E S S A B L E
P R E S S E N T
C O M P L E T E
3. Install a single device by either attaching the sensor to
the base or attaching the BNC leads to the device
(attach Red wire to Loop + connection; Black wire to
Loop – connection on device). Once the NEW DEVICE
record is received, the next menu is displayed:
NOTE: The HH Prog requires the NEW DEVICE record from
the device before it will recognize it. If
the device was already installed when
+
accessing this menu, you must REMOVE
and RE-INSTALL the device for the HH
Prog to receive the NEW DEVICE record.
-
If several devices were removed and
attached the first one to respond with the
NEW DEVICE record will be the one to
get the address.
C O N N E C T D E V I C E
A D D R E S S A B L E
* N E W D E V I C E *
* D E T E C T
C O N N E C T D E V I C E
A D D R E S S A B L E
P R E S S E N T
for
C O M P L E T E
4. The HH Prog has detected that a NEW DEVICE
message was recorded and is ready for the user to
press ENTER to assign the new loop-address. Press
ENTER:
L O O P : 1 A D D R E S S : N N N
D E V I C E A D D R
C O M P L
E N T E R F O R
OR if the address did NOT successfully change:
A D D R E S S
T O S T A R T
T O
L O O P
E R W H E N
T O
L O O P
E D *
T O
L O O P
E R W H E N
C H A N G E
E T E D
N E X T D E V I C
