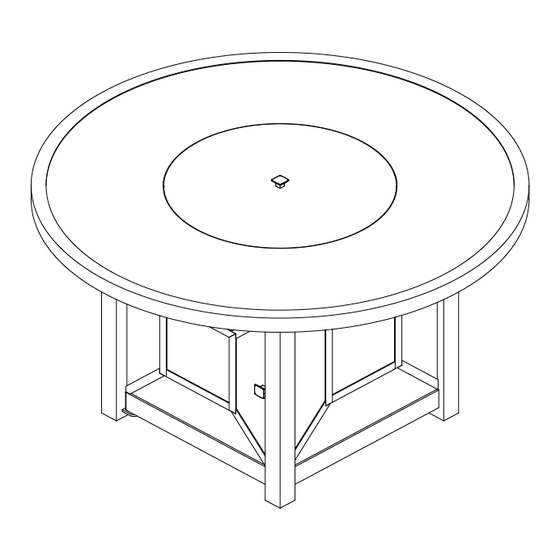

Magnolia Point 5pc LP Fire Chat Set-Table
Questions, problems, missing parts? Before returning to the store,
WARNING:
Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage.
Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
USE AND CARE GUIDE
call Hampton Bay Customer Service
8.00 a.m. - 7.00 p.m. EST, Monday - Friday,
9.00 a.m. - 6.00 p.m. EST, Saturday
1-800-841-1350
WWW.HAMPTONBAY.COM
Thank you for choosing Hampton Bay!
THANK YOU
I
e t
m
#
XXXX XXX XXX
XXXX XXX XXX
Model# GT-11734A-SSR
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY Magnolia Point GT-11734A-SSR
Summary of Contents for HAMPTON BAY Magnolia Point GT-11734A-SSR
- Page 1 Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents.............2 Operation ..............1 4 Important Safety Instructions........3 Leak Check ..........Specification............4 Lighting............Safety Warning............5 Shutting Down the Gas Appliance ....P re - Assembly............7 How to Disconnect the Cylinder ....A ssembly ..............9 Gas Cylinder Required..........15 S tructure of the Gas F irepit ........11 Troubleshooting............ -
Page 3: Important Safety Instructions
Important Safety Instructions SAVE THESE INSTRUCTIONS WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. -
Page 4: Specification
Specifications Product Name Magnolia Point 5pc LP Fire Chat Set-Table Model No. GT-11734A-SSR Rated Heat Input 55,000 BTU Fuel Propane Gas Supply 20-lb LP gas cylinder Manifold Pressure 11 in. water column Orifice Size (diameter) 0.09 in. (2.3mm) Gas Supply Pressure 250 PSI (max) 41.92D*25.98H in NW: 84.60 lbs GW: 114.64 lbs... -
Page 5: Safety Warning
Safety Warnings i l p x i f l l a i t a r o f h t i o i t t n I o i t i l d , 2 . Natural l l a i t a ;... - Page 6 Safety Warnings (continued ) C hildren and adults should be alerted to the haz ards of high surf ace temperature and should stay away to av oid burns or prev ent clothing f rom igniting. Y oung children should be caref ully superv ised when they are in the area of the appliance. C lothing or other f lammable materials should not be hung f rom the appliance or placed on or near CAUTION the appliance.
-
Page 7: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY It will take two people about 30 minutes to complete the assembly process. TOOLS NEEDED AAA Battery (1 pc) Philips screwdriver HARDWARE INCLUDED : Hardware not shown to actual size. NOTE Quantity Part Description Bolt (M6 x 30) Bolt (M6 x 20) Bolt (M6 x 25) Allen wrench (M6) - Page 8 Pre-Assembly (continued) PACKAGE CONTENTS Quantity Part Description Table top incl. gas furnace Left side panel incl. door Right side panel Rear panel Tank rack Button Glass Beads 17.63 lbs (8 kg)
-
Page 9: Assembly
Assembly Attaching the tank rack Attaching the side panels to the rear panel Attach the side panels (C and D) and the real panel (E) to the tank Attach the left side panel include door (C) and right side panel (D) to rack (F) with M6 x 20 bolts (BB), using M6 allen wrench (DD) and ) E ( h t i... - Page 10 Assembly (continued) Attaching the button Positioning the table Attach the button (G) to the lid (A) with M6 x 25 bolts (CC), using the Turn the table upright. M6 allen wrench (DD). Put the glass beads (H) to the bowl. Put the lid (A) on. Fully tighten all the bolts.
-
Page 11: Structure Of The Gas Firepit
Structure of the Gas Firepit Hex Cross Screw / Nut 10" Single Ring Burner Component Orifice Connector / Orifice Ignition Needle Burner Baffle Thermocouple Backup Plate for Burner 19" Round Burner Pan Flex Line Electric Igniter Safety Valve Control Box Regulator Control Knob Brazier System Components... -
Page 12: Installation
Installation Location 36 in. / 914 mm, NOTE: Do not place this appliance on grass or dirt areas. This may prevent proper safety venting. 36 in. / 914 mm, 36 in. / 914 mm, Fig. 1 Loading the propane tank Open the door. -
Page 13: Loading The Battery
Installation (continued) Loading the battery U nscrew the battery box and insert the negative electrode s e d i of the battery into the bottom of the battery box . Cover the battery with the plastic cover (#3). (Fig.4) NOTE: Please follow the above instructions to replace the battery when needed. -
Page 14: Operation
Operation LEAK CHECK WARNING: Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. NOTE Make sure the gas control knob (#2 ) is on the “OFF” position. Open access doors. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, with a tight fit. -
Page 15: Shutting Down The Gas Appliance
Operation (continued) Turn the gas cylinder valve (#7) off when the gas appliance is not in use. Do not try to cool glass beads with cold water right after shutting down the gas appliance or they will crack. You can use soapy water to check if there is gas leakage at the outlet. (Fig.11) Gas Cylinder Requirement have a listed overfilling prevention device;... -
Page 16: Troubleshooting
Troubleshooting Problem Observed Possible Cause Corrective Measures Perform the steps in "Leak Check" on page 14. If odor continues shut off gas supply and contact your customer service department. The gas pressure is low, or there is no gas supply. The orifice is blocked. -
Page 17: Limited Warranty
Before disconnecting and removing the gas cylinder after use, allow 45 minutes for the appliance to cool down. Limited Warranty Dated proof of purchase is required at the time that the warranty claim is submitted. This warranty covers all parts found defective in workmanship and/or materials during the warranty period. The manufacturer may repair the product or send replacement parts to its discretion at no cost to the original purchaser.
