Super Handy GUO116 Operator's Manual

Rear tine tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

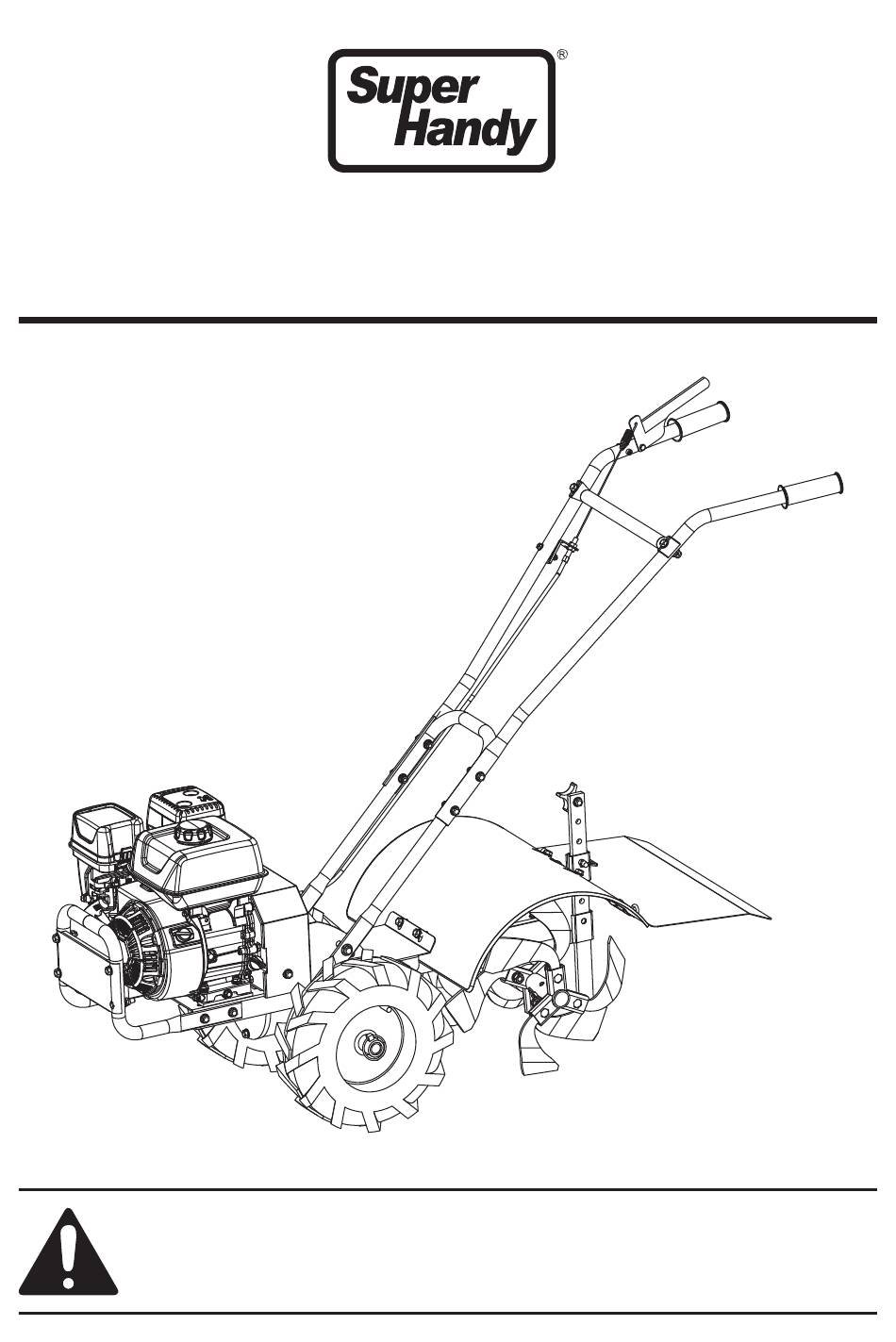

Rear Tine Tiller
Operator's Manual
WARNING:
Carefully review and understand all INSTRUCTIONS prior to operating this device. Failure to follow
the safety rules and other basic safety precautions may result in serious personal injury. Keep these
instructions in a safe place and accessible so that they can be reviewed as required. Keep these
instructions to assist in future servicing needs.
REV 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUO116 and is the answer not in the manual?

Questions and answers

Richard A Shaver
July 27, 2025

Fuel leak from behind starter cord area

0
Fue yang
April 5, 2025

Do you sell replacement parts

0

Related Manuals for Super Handy GUO116

Summary of Contents for Super Handy GUO116

  • Page 1 Rear Tine Tiller Operator's Manual WARNING: Carefully review and understand all INSTRUCTIONS prior to operating this device. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Keep these instructions in a safe place and accessible so that they can be reviewed as required. Keep these instructions to assist in future servicing needs.
  • Page 2 1. WARNING Understanding Your Machine ● Be sure to read and understand the operator's manual and labels affixed to the machine. Learn its proper usage and capabilities as well as the specific potential hazards unique to this product. ● Be familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly before you start to operate the product.
  • Page 3 Fuel Safety ● Fuel is highly flammable, and its vapors can explode if ignited. Take precautions when using to reduce the chance of serious personal injury. ● When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor area.
  • Page 4 Service ● Before cleaning, repairing, inspecting, or adjusting the machine, shut off the engine and make certain all moving parts have stopped. Always make sure the engine's switch is in its "OFF" position. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting.

  • Page 5: Technical Specifications

    2. TECHNICAL SPECIFICATIONS SKU# GUO116 Engine Recoil Start Type Sprocket Feed Gear+Belt Transmission 1 Forward Speed Tines Tine Rotation Direction Backwards Tilling Width 16 in. Tilling Depth 12 in. 6 Positon Depth Stake Adjustment 190RPM Tine RPM Tire 13 in.
  • Page 6 Contents Included The engine tiller comes partially assembled and is shipped in carefully packed carton. After all the parts have been removed from the carton, you should have: Rear shield Equipment body Handle support Left rotary tines Right rotary tines Left handle Right handle Left wheel...
  • Page 7 4. ASSEMBLY READ THROUGH COMPLETELY FIRST BEFORE STARTING YOUR ASSEMBLY Required tools for using this product: 2 adjustable wrenches. 1. Using 4 M10x25 bolts and 2 M10 nuts, mount the Handle support (2) to the blueprint hole locations on the Equipment body (1) . Fig.
  • Page 8 3. With the axle pin and a 2.5x45 B-type pin, attach the Left rotary tines (10) to the power shaft of the Equipment body (1) via its inner mounting holes. Install the Right rotary tines (11) in the same manner. Note: Ensure the tiller blades are not installed backward. If reversed, the tiller won't operate correctly.
  • Page 9 5. Position the Tine shield (8) in its slot, followed by the Drive shaft cover plate (7). Secure with 6 M8x20 bolts. Fig. 5 M8x20 Bolt 6. Using two 5x100 B-type pins, mount the Rear shield (9) onto the Tine shield (8). Fig.
  • Page 10 7. Using 4 M8x40 bolts and 4 M8 nuts, attach the Left handle (3) and the Right handle (4) to the Handle support (2) . Ensure you don't reverse the two handles. Fig. 7 M8 Nut M8x40 Bolt 8. Connect the Left handle (3) and the Right handle (4) with the Handle linkage (5) and fasten using two M8x40 bolts and two M8 nuts.

  • Page 11: Operation

    9. Insert the spring end of the clutch cable into the mounting hole of the clutch handle and secure the clutch cable to the Right handle (4) using one M6x40 bolt and one M6 nut. Note: As illustrated, when installing the clutch cable, use the lower mounting hole of the clutch cable bracket.
  • Page 12 Adjusting Handle Height This tiller allows you to adjust the handle height based on your preference, offering three different adjustment positions as shown in the figure below. Fig. 11 Position 1 Position 2 Position 3 Adjusting Tillage Depth The tilling depth can be adjusted based on different working conditions. Remove the square pin from the Depth stake (6) to adjust its height.
  • Page 13 Starting Engine Ensure the work environment is safe and appropriate before starting the engine. Adjust the throttle to the appropriate level. 1. Move the fuel valve lever to the ON position. 2. To start a cold engine, move the choke to the CLOSE position. To restart a warm engine, leave the choke lever in the OPEN position.

  • Page 14: Preventive Maintenance

    Transferring Tiller To transfer this tiller without starting the engine, simply attach the O-pin individually to the axle, the wheels will be in neutral as shown in figure.15. Then, you can push the tiller freely and easily. Before starting tilling work, please ensure that the wheels are fixed in the drive mode by O-pins, as shown in the figure below.
  • Page 15 7. Replacement of belt 7.1 Remove the belt cover by loosen the 4 M8x20 bolts. Fig. 15 Belt Cover M8x20 Bolt 7.2 Loosen all four engine fastening bolts (M8x45 bolts) and M8 nuts and remove the engine. NOTE :Ensure not to lose the two engine spacers. Fig.
  • Page 16 7.3 Remove the belt cover by loosen the 3 M8x70 bolts, , and you can then access and replace the old belt from below. Fig. 17 Belt Cover M8x70 Bolt Belt After replacing the belt, reassemble the engine in the order of ③→②→①. 8.
  • Page 17 7. STORAGE If the rear tine tiller will not be used for a period longer than 30 days, follow the steps below to prepare your unit for storage. 1. Drain the fuel tank completely. Stored fuel containing ethanol or MTBE can start to go stale in 30 days.

  • Page 18: Troubleshooting

    8.TROUBLE SHOOTING Problem(s) Possible Cause Corrective Action 1. Attach spark plug wire securely 1. Engine and/or Fuel valve Engine fails to start. is not in ON position. to spark plug. 2. Fill with clean, fresh gasoline. 2. Out of fuel or stale fuel 3.
  • Page 19 9. EXPLODED AND PARTS LIST Description Qty. Qty. Description Handle support Tine axis pin Right rotary tines M10 nut M8 Hand knob M10*25 bolt Ribbon Depth stake M8 nut M8*30 bolt M8*40 bolt Square pin Handle linkage 2.5*45 B type pin M8*40 bolt Left rotary tines M6 nut...
  • Page 20 Great Circle USA Support Line: 1-866-493-0524 Email: help@greatcircleus.com www.superhandyus.com REV 10/27/23 Size: 145x210mm 157克双铜 3020518...
