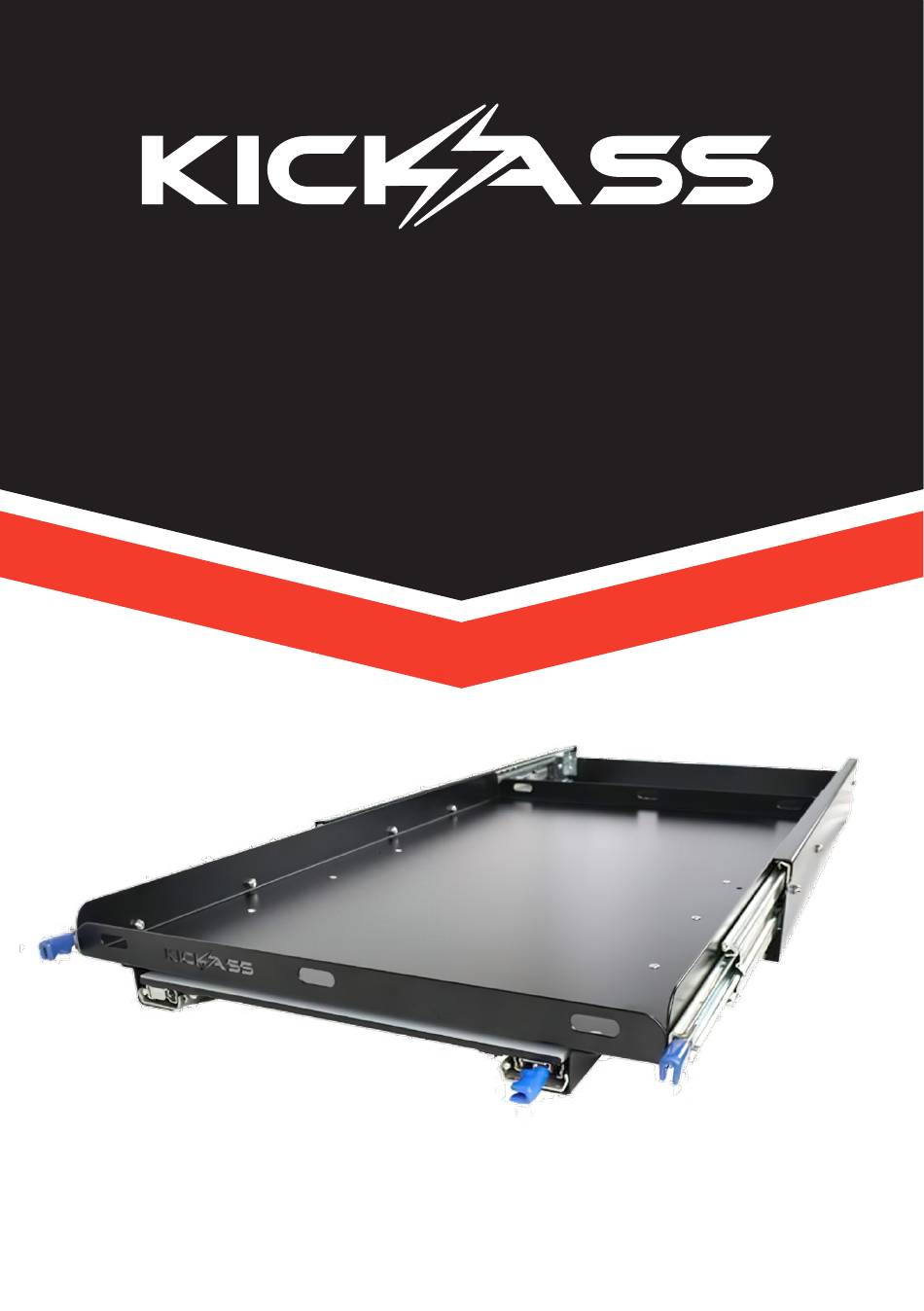

- Page 1 ® PREMIUM 95L HEA VY DUTY FRIDGE SLIDE BUILT IN SLIDE-OUT TABLE KASLIDEPR-95...
-
Page 2: Product Component
PRODUCT COMPONENTS PRODUCT GENERAL MATERIAL COMPONENT INFORMATION Inner Fridge Tray Size: Black Powder Coated Steel 905mm(L) x 545mm(W) Fridge Frame Dimensions: 945mm(L) x 600mm(W) x 113mm(H) 945mm FRIDGE TRAY 905mm 6 x M6 Washer SUS304 6 x 25mm M6 Bolts 6 x Captive T Nuts MOUNTING KIT 4 x 750mm x 25mm Straps... -
Page 3: Tools Recommended For Installation
TOOLS RECOMMENDED FOR INSTALLATION 1. Pen or marker 2. Allen key 3. Electric drill... - Page 4 PREPARING FOR THE FRIDGE SLIDES INSTALL 1. Gently open the slides fully by pressing lightly onto the blue handle. 2. Using a pen or marker, mark all 11 holes from the slides and choose the six drilling points to mount T nuts in locations which suit your installation. 3.
- Page 5 4. Insert the T nut into the holes, ensuring the nuts are upright and evenly inserted. 5. Position the rail slides so that the holes on the rails line up with the drilled holes. 6. Screw the bolts and the washers onto the slides, using an allen key to secure them tightly until the T nut is flush with the bottom of the table.
- Page 6 7. Secure your fridge onto the slides using the four nylon strap supplied. It’s important to make sure that the straps are tight and secure. Once tightened, you can use an elastic band to tie up the ends of the straps for neatness if desired.
- Page 7 When Using The Screws: 1. Open the slides fully. 2. Position the side rails flat on the desired surface. 3. It’s recommended that you use all screws supplied. For additional guidance on using T nuts, watch our YouTube video: https://www.youtube.com/watch?v=EcWkdJ5Tekg Notes: •...
- Page 8 ® KickAss Product Australia 39 Iris Pl, Acacia Ridge QLD 4110 Phone : (07) 3123 4715 Made In China | KickAss Quality Copyright © 2023 KickAss Products Pty Ltd | ABN: 25 169 600 060...
